CD Changer Installation

WARNING: This page is about a different car, the 2004 Suzuki Verona. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the CD changer with the bolts.
  2. Connect the CD changer electrical connector.
  3. Connect the negative battery cable.

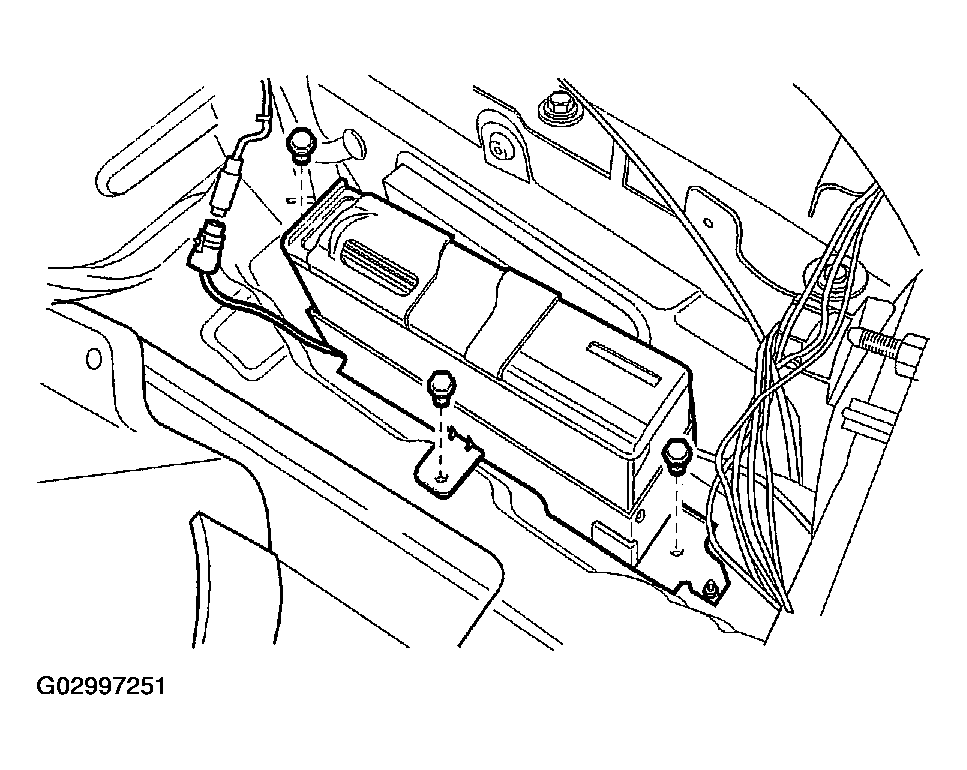

Fig 1: Installing CD Changer
G02997251Courtesy of SUZUKI OF AMERICA CORP.
