Glass Antenna Module Installation

WARNING: This page is about a different car, the 2004 Suzuki Verona. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the glass antenna module with the screws.
  2. Connect the electrical connectors.
  3. Install the C-pillar trim panel. Refer to C-PILLAR TRIM PANEL INSTALLATION .
  4. Connect the negative battery cable.

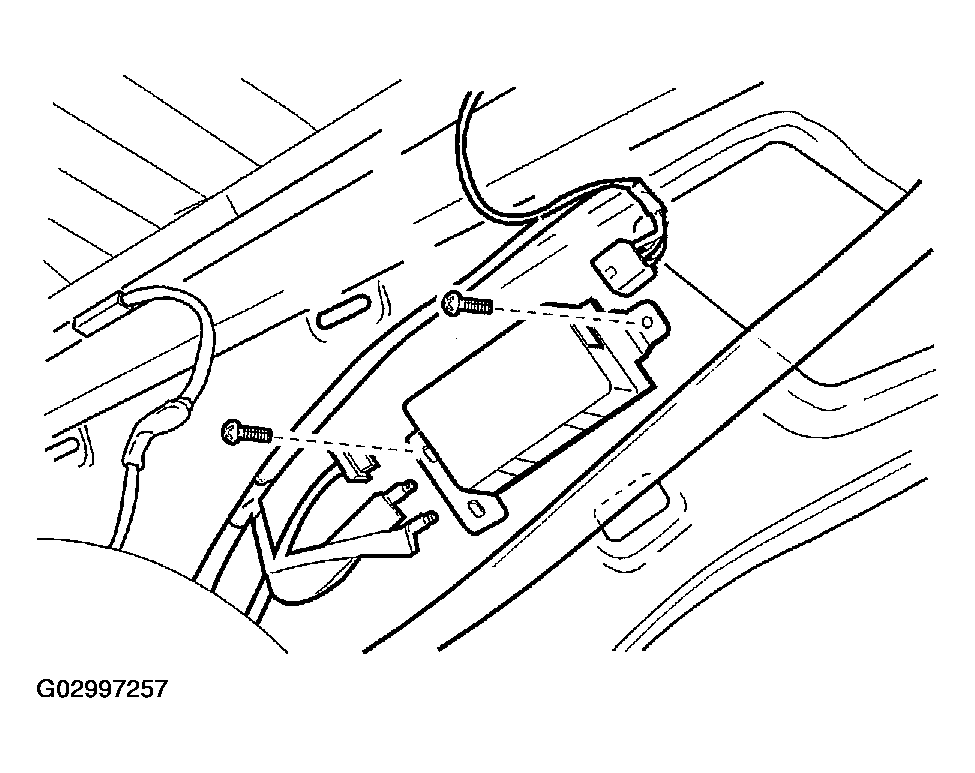

Fig 1: Installing Glass Antenna Module
G02997257Courtesy of SUZUKI OF AMERICA CORP.
