Wiring Diagrams

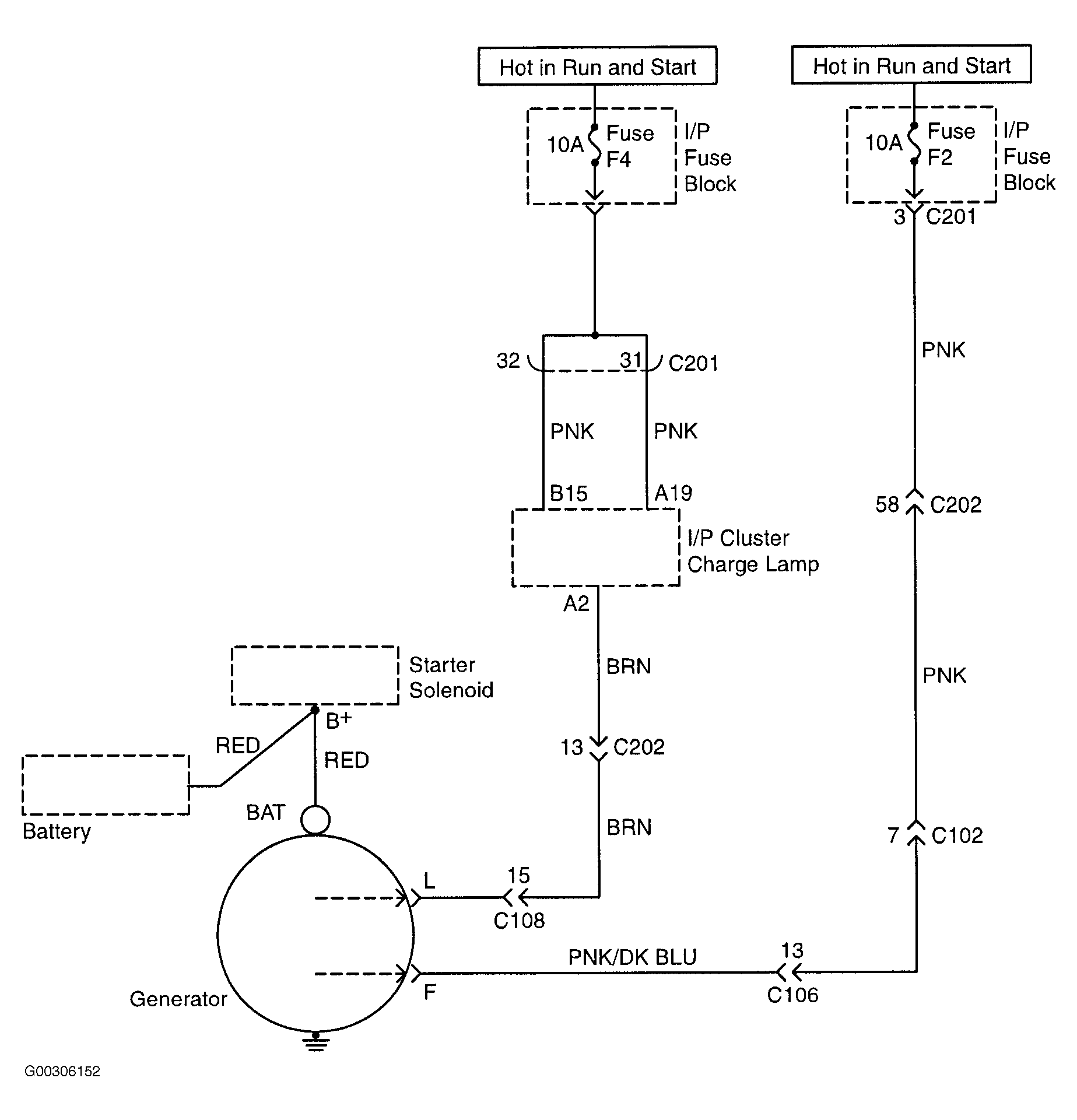

Fig 1: Charging System Wiring Diagram

G00306152

Courtesy of SUZUKI OF AMERICA CORP.
