DTC C0550: ABS Control Module Internal Fault: Notes

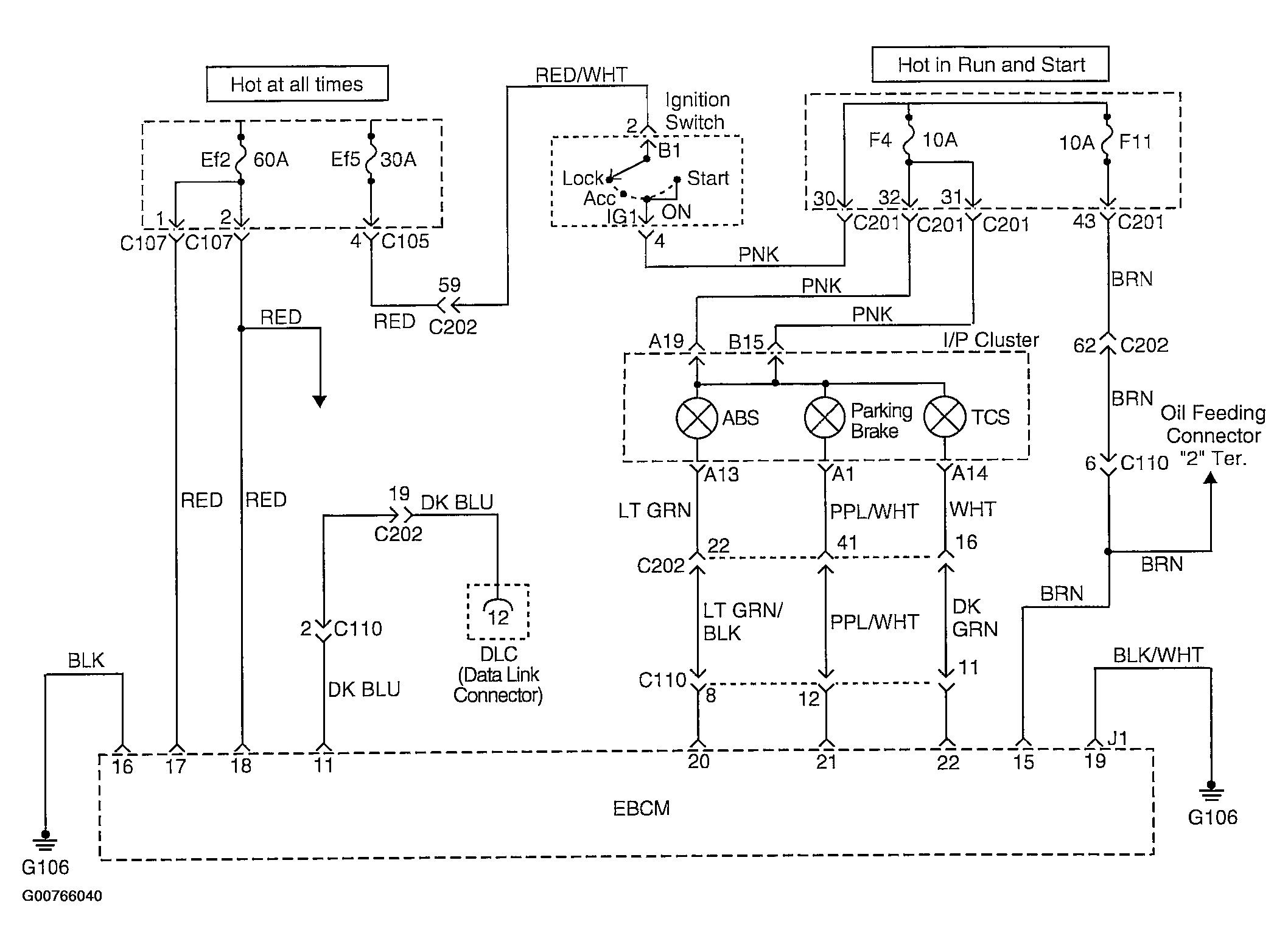

Fig 1: DTC C0550 ABS Control Module Internal Fault - Diagnostic Wiring Diagram

G00766040

Courtesy of SUZUKI OF AMERICA CORP.
