Schematic and Routing Diagram
>>
Control Module/Receiver Connector
Control Module/Receiver Connector

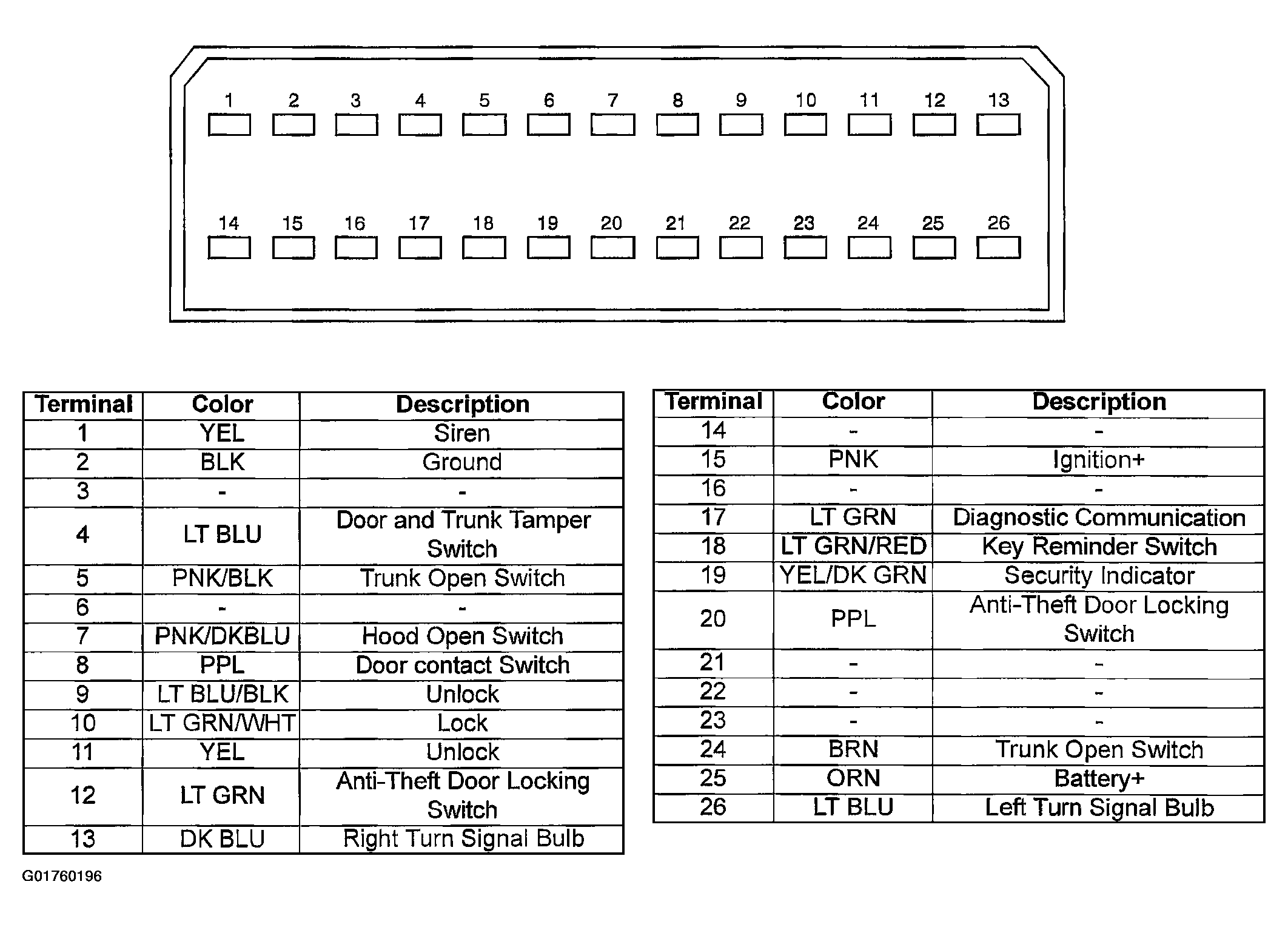

Fig 1: Identifying Control Module/Receiver Connector
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
