Tightening Torque Specifications

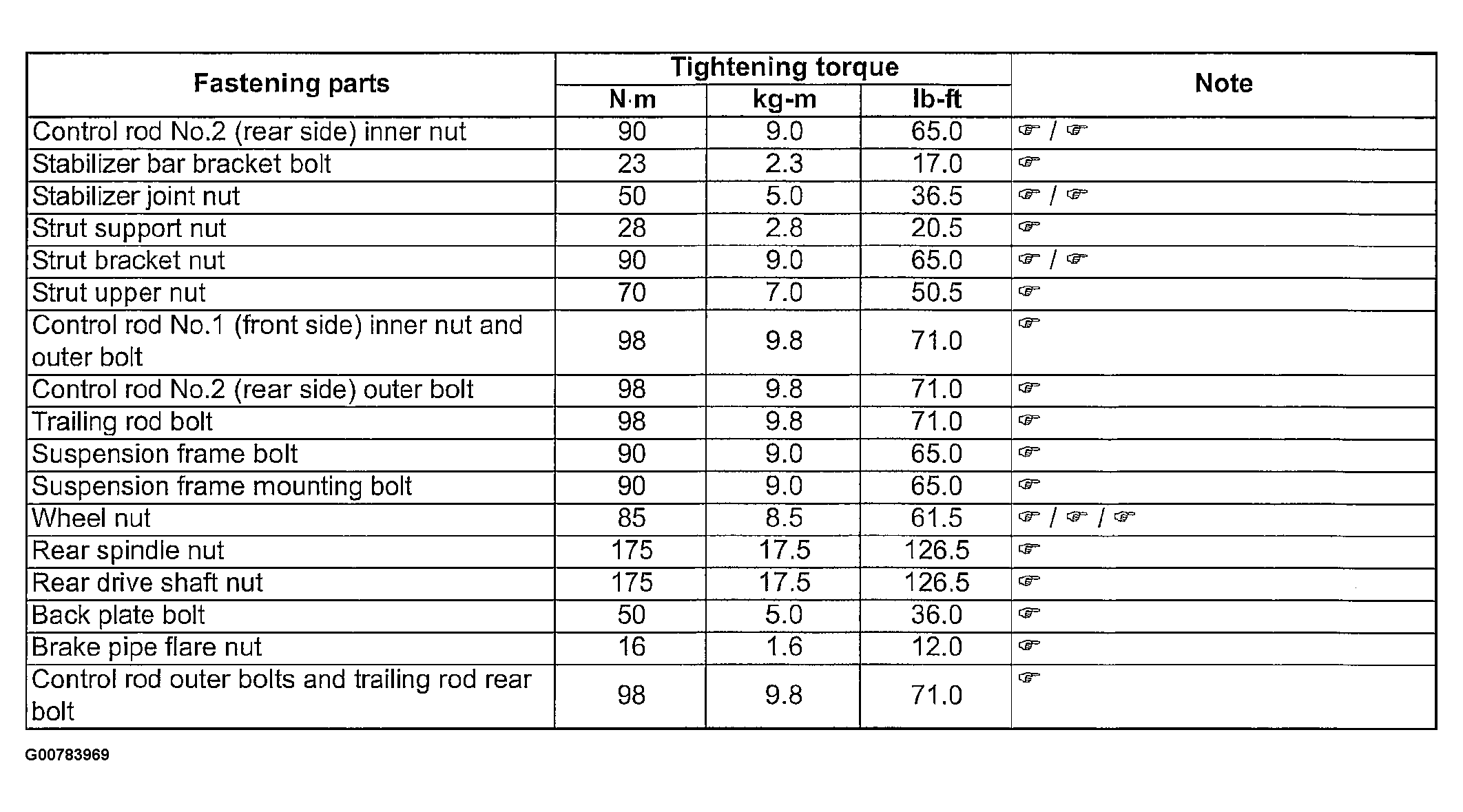

Fig 1: Torque Specifications Table

G00783969

Courtesy of SUZUKI OF AMERICA CORP.
