Rear Strut Assembly Components
Rear Strut Assembly Components

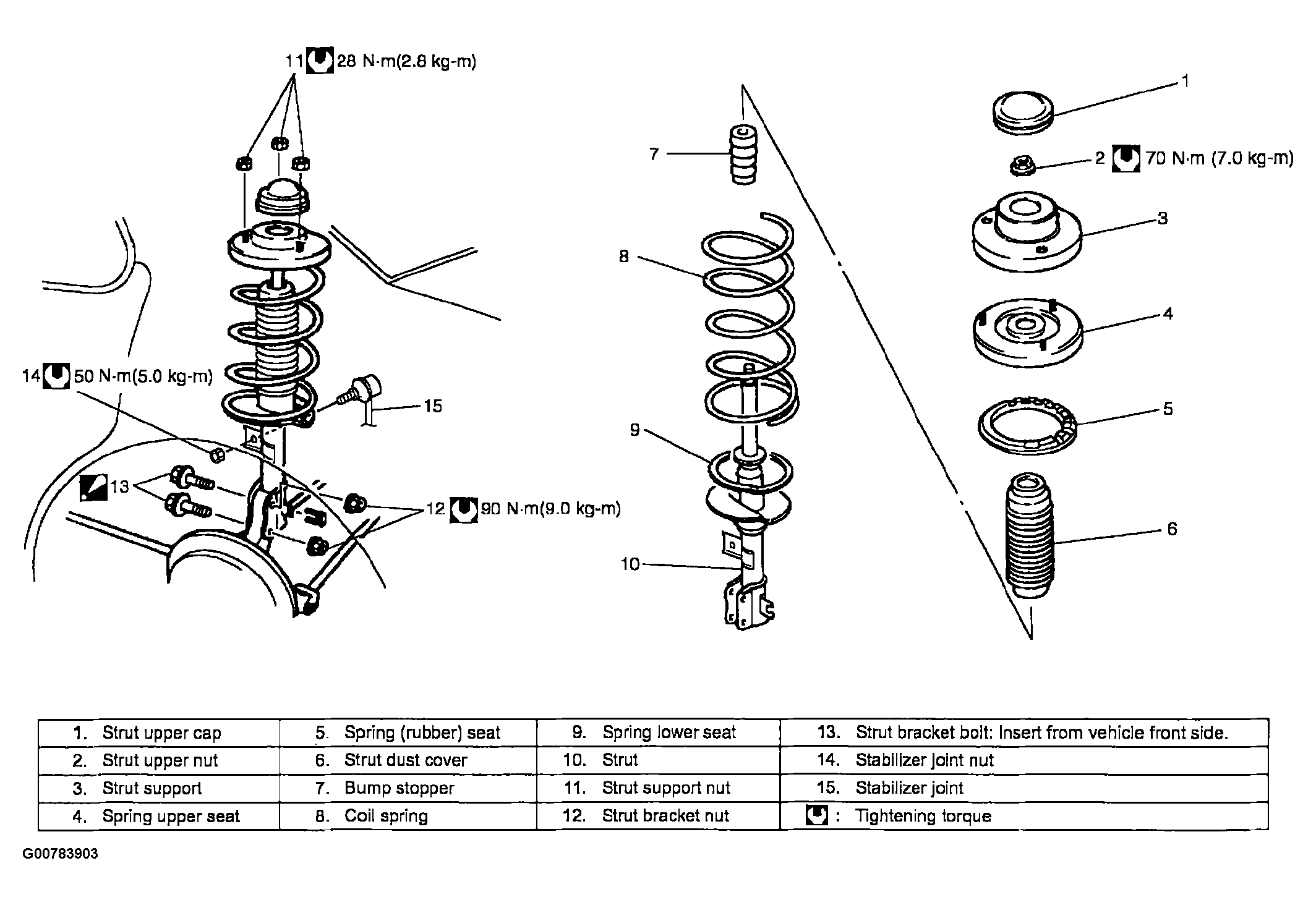

Fig 1: Identifying Rear Strut Assembly Components
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
