Control Rod Components
Control Rod Components

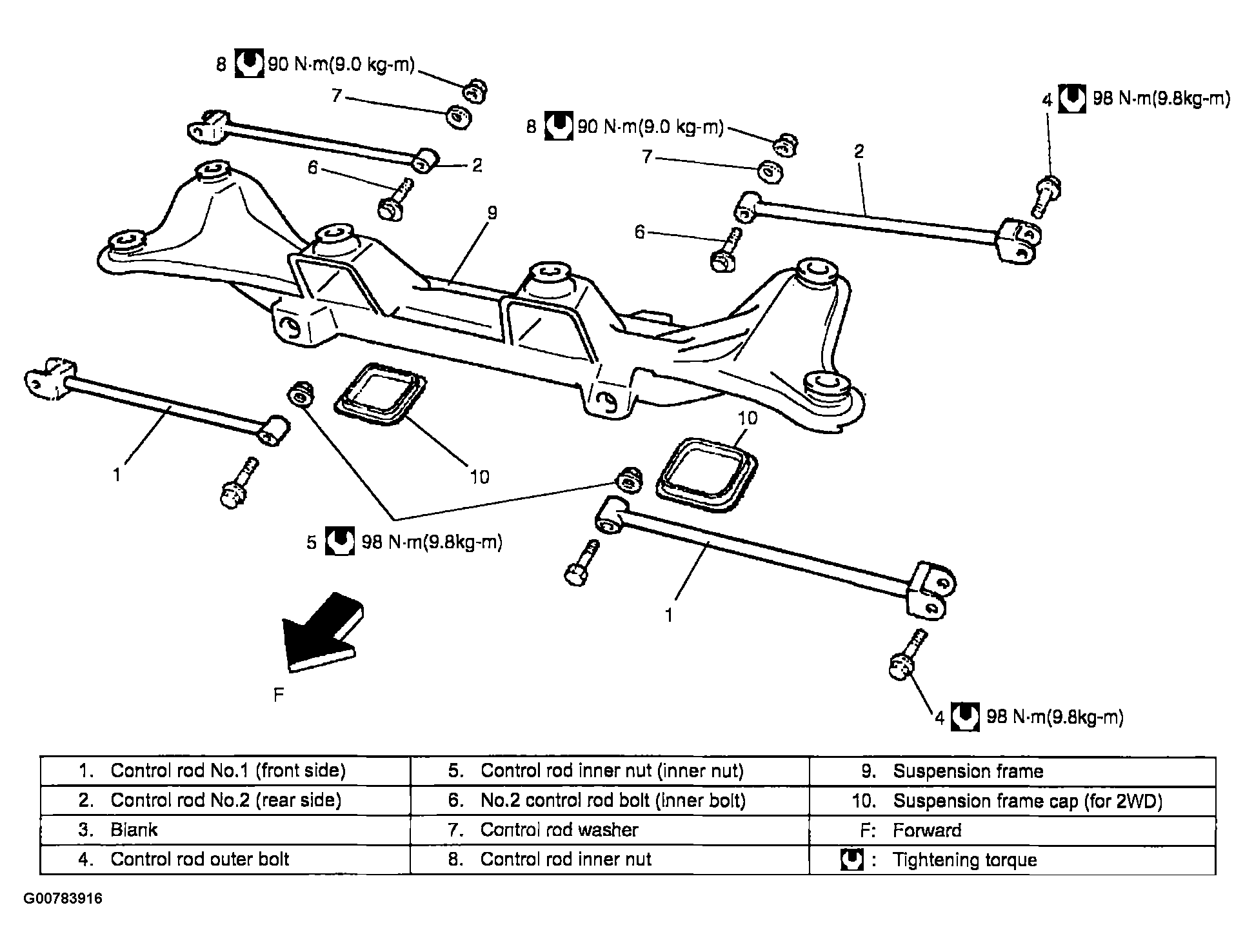

Fig 1: Identifying Control Rod Components
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
