Manual Transaxle Assembly Components

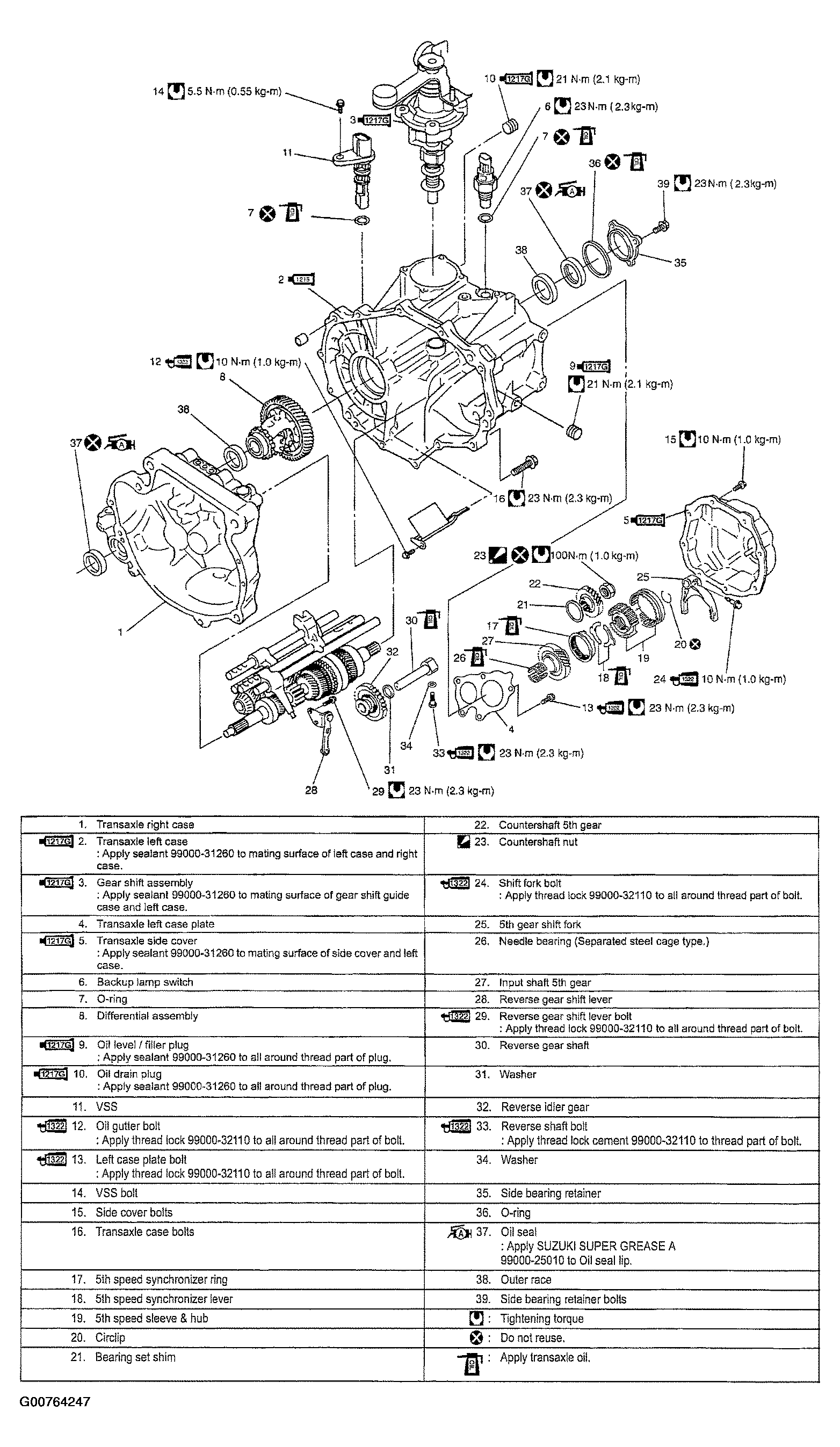

Fig 1: Exploded View Of Manual Transaxle Assembly Components

G00764247

Courtesy of SUZUKI OF AMERICA CORP.
