Home >> Suzuki >> 2004 >> Aerio S, Standard >> Repair and Diagnosis >> Transmission >> Manual Trans >> Overhaul - M/T >> Repair Instructions >> Gear Shift Control Lever and Cable Components

Gear Shift Control Lever and Cable Components

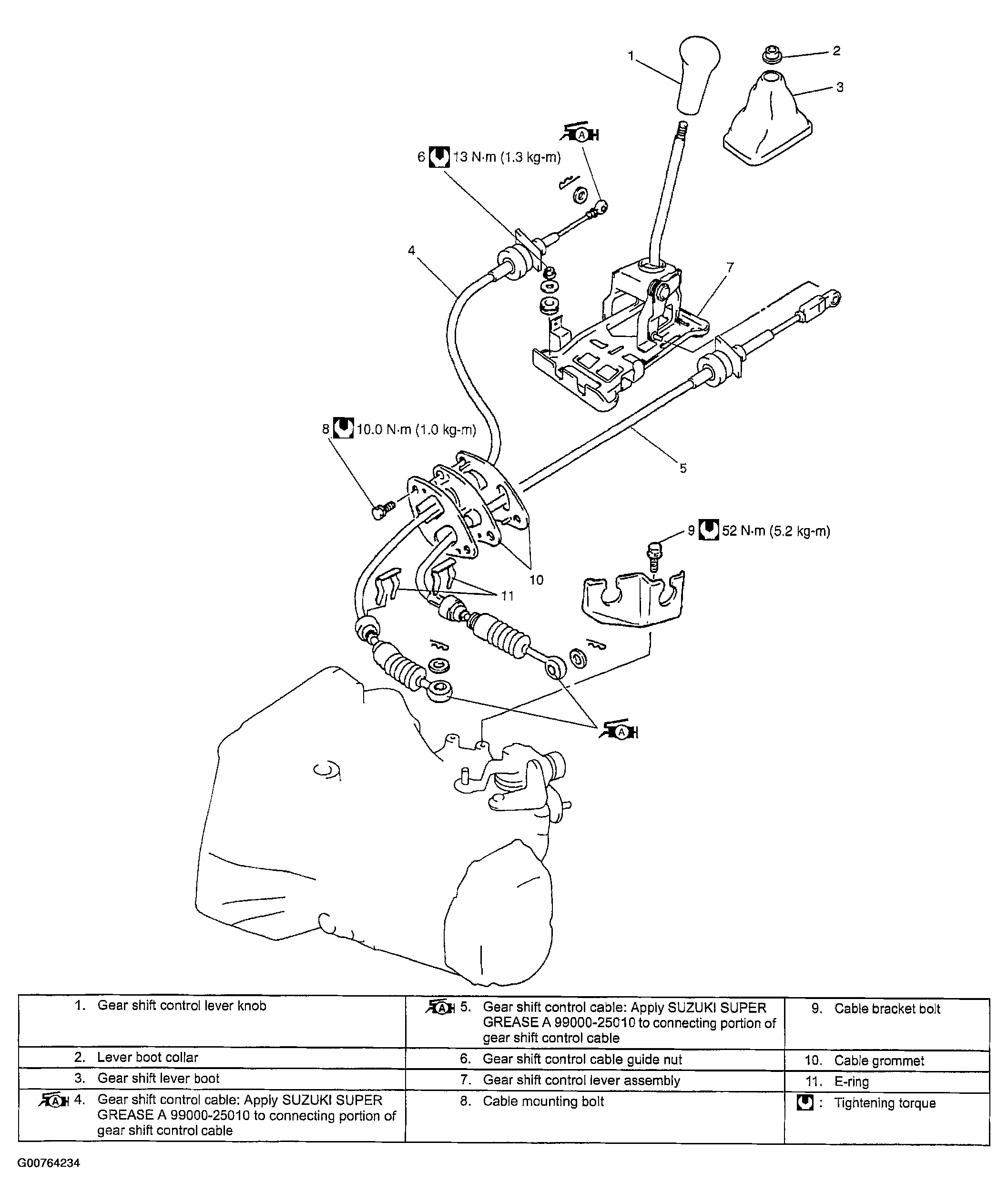

Fig 1: Identifying Gear Shift Control Lever and Cable Components

G00764234

Courtesy of SUZUKI OF AMERICA CORP.
