Engine and Emission Control System Flow Diagram

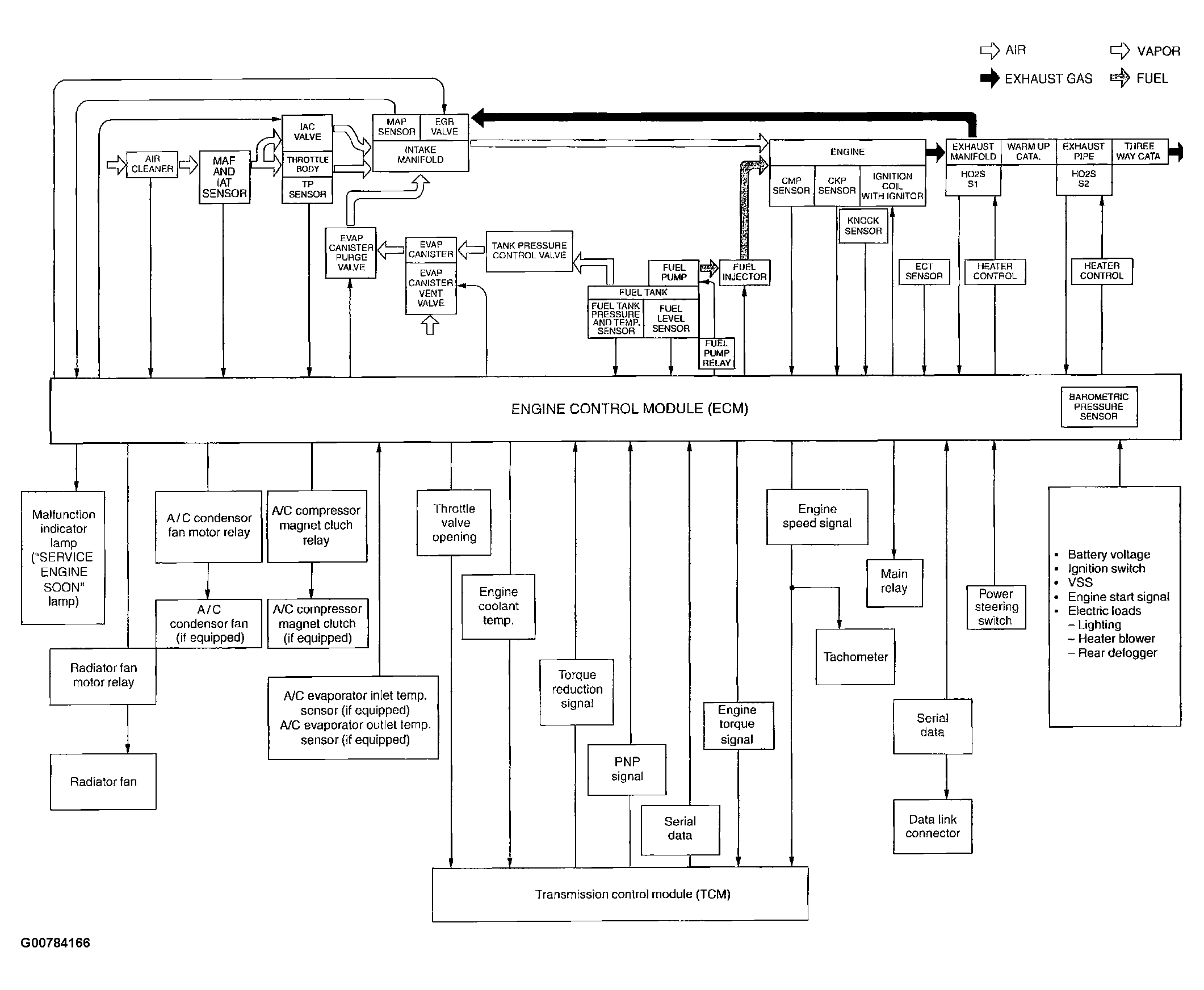

Fig 1: Engine & Emission Control System Flow Diagram

G00784166

Courtesy of SUZUKI OF AMERICA CORP.
