General Description
>>
ECM Input/Output Circuit Diagram
ECM Input/Output Circuit Diagram

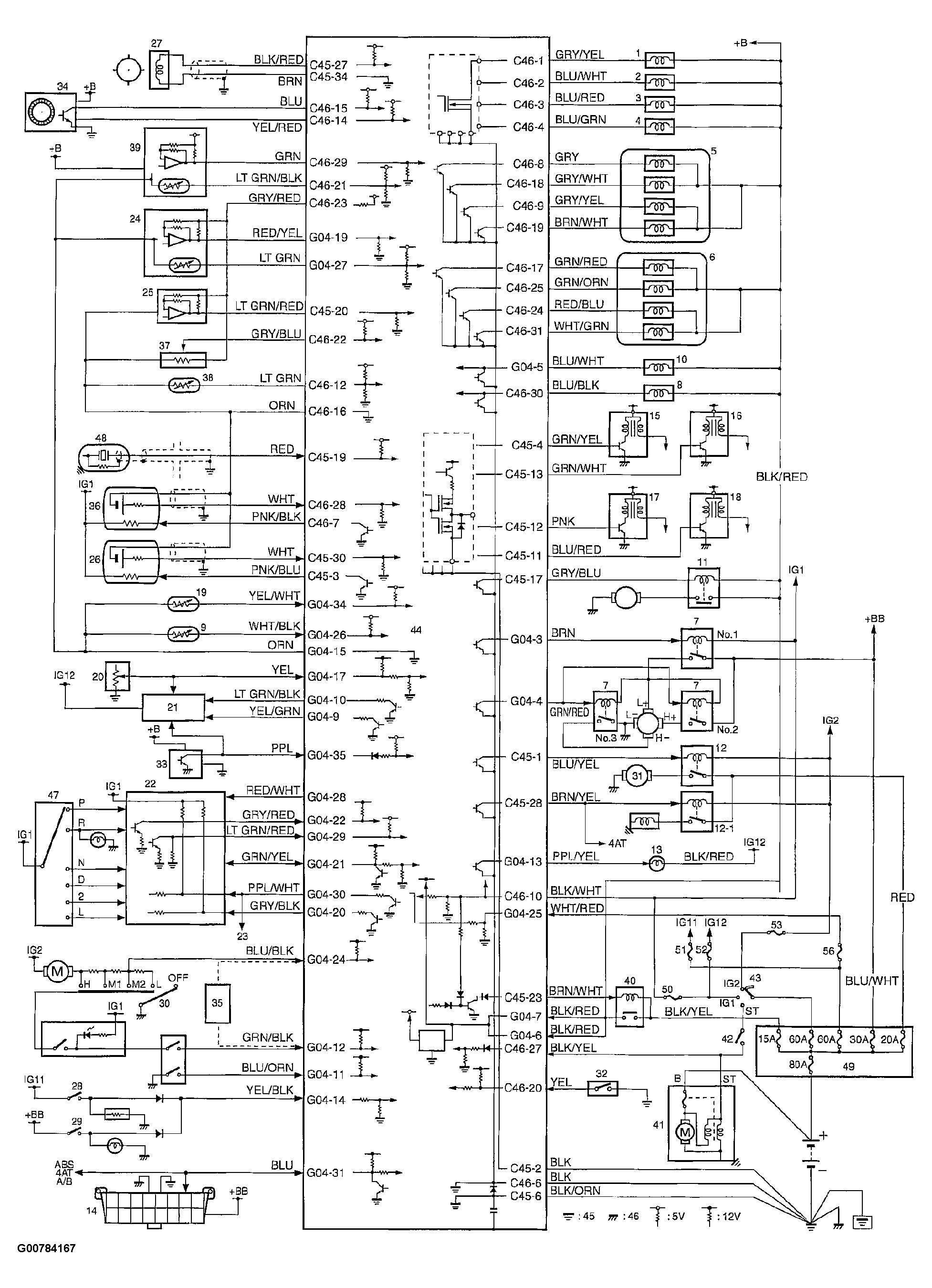

Fig 1: ECM Input/Output Circuit Diagram (1 of 2)
Courtesy of SUZUKI OF AMERICA CORP.

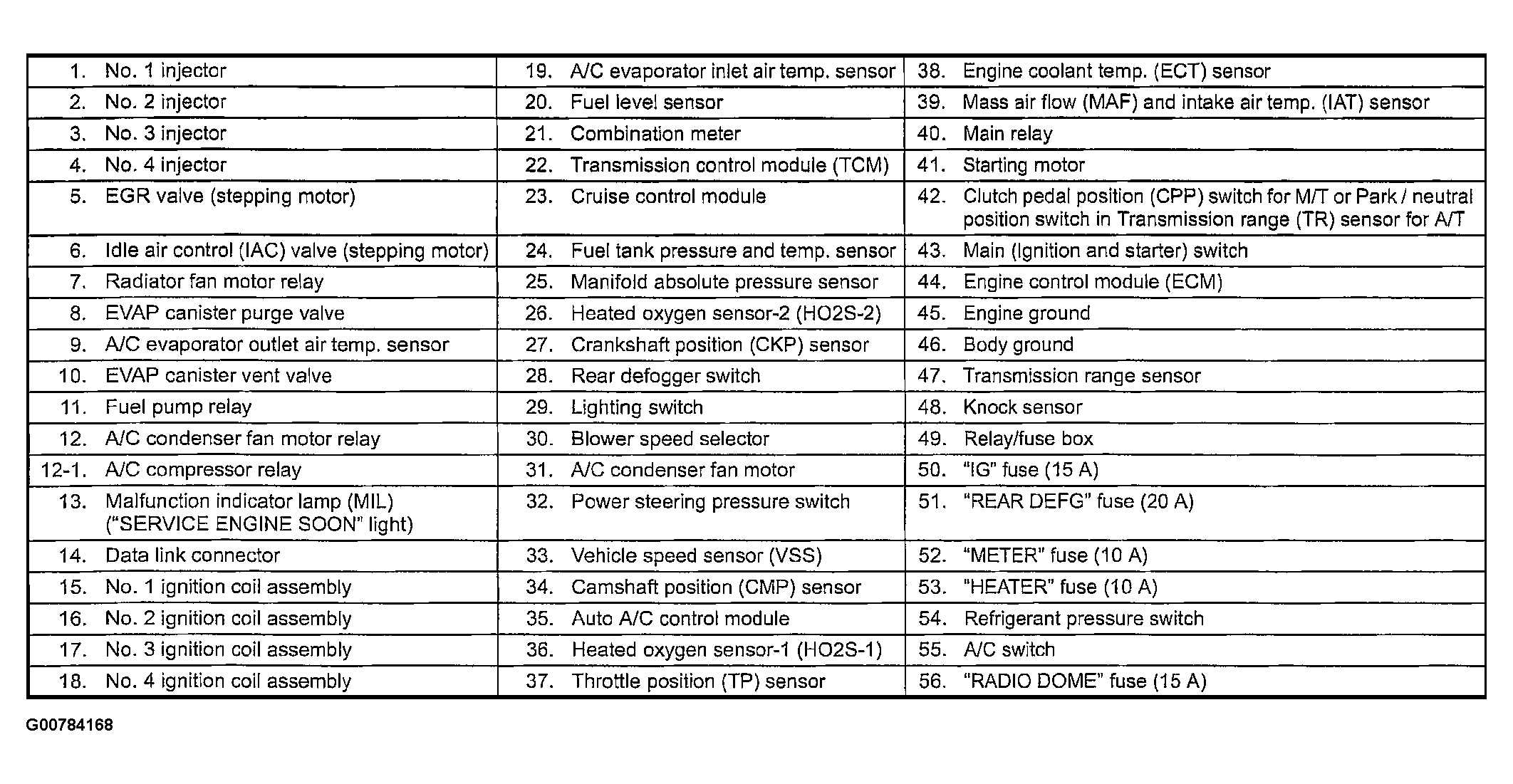

Fig 2: ECM Input/Output Circuit Diagram (2 of 2)
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
