Torque Specifications

TORQUE SPECIFICATIONS

Application Ft. Lbs. (N.m)
A/C Compressor Bracket Bolt 40 (55)
Ball Stud Bolt 44 (60)
Ball Stud Lock Nut (4WD Only) 44 (60)
Camshaft Timing Sprocket Bolt 58 (80)
Camshaft Position Sensor 11 (15)
Center Coupling Bolt (4WD Only) 17 (23)
Center Support Nut (4WD Only) 37 (50)
Center Shaft Support Bolt 40 (55)
Clutch Cover Bolt 17 (23)
Connecting Rod Bolt/Nut
2002 & 2003 33 (45)
2004 (18) Tighten bolts to 15 N.m (1.5 kg-m, 11.0 lb-ft), then tighten 45°.
Crankcase Bolts (1)
Step 1 (10 mm Bolt) (2)
Step 2 (10 mm Bolt) (3)
Step 3 (10 mm Bolt) (4)
Step 4 (10 mm Bolt) (5)
Step 5 (8 mm Bolt) (6)
Crankshaft Pulley Bolt 109 (150)
Cylinder Head-To-Cylinder Block (7)
Step 1 (8)
Step 2 (9)
Step 3 (10)
Step 4 (11)
Step 5 (12)
Step 6 (13)
Drive Shaft Nut 127 (175)
Engine Mounting (16)
Engine Front Bush Nut/Bolt 40 (55)
Engine Front Mounting Nut 40 (55)
Engine Left Mounting Bracket Nut 40 (55)
Engine Left Mounting Bracket Bolt/Nut 18 (25)
Engine Left Mounting Stiffener Bolt 18 (25)
Engine Right Mounting Bolt 40 (55)
Engine Right Mounting Bracket Bolt /Nut 40 (55)
Engine Rear Mounting Bracket Bolt 40 (55)
Engine Rear Mounting Bracket Bolt 69 (93)
Engine Rear Mounting Bracket Nut 40 (55)
Engine Rear Mounting Nut 33 (45)
Mounting Member To Suspension Frame Nut 40 (55)
Dynamic Damper Nut 33 (45)
Engine RH Mounting Bracket Bolt 40 (55)
Exhaust Manifold-To-No. 1 Pipe Nut (14) 40 (55)
Exhaust No. 1 Pipe-To-Exhaust Manifold Bolt (4WD Only) 37 (50)
Exhaust No. 1 Pipe-To-No. 2 Pipe Bolt 32 (43)
Exhaust Pipe No. 1 Stiffener Bolt 40 (55)
Exhaust No. 2 Pipe-To-No. 1 Pipe Bolt (4WD Only) 32 (43)
Exhaust Pipe No. 1 Stiffener Mounting Bolt 53 (73)
Flywheel Or Drive Plate Bolt 51 (70)
Generator Belt Idler Pulley Nut 31 (42)
Generator Belt Tensioner Bolt 18 (25)
Intake Manifold Bolt/Nut 18 (25)
Intake Manifold Front Stiffener Bolt 18 (25)
Intake Manifold Rear Stiffener Bolt 40 (55)
Knock Sensor 17 (23)
Oil Drain Plug 37 (50)
Oil Pressure Switch 11 (15)
Oil Pump Mounting Bolt 18 (25)
Oil Pump Relief Valve Retainer Nut 13 (28)
Propeller Shaft No. 1 Bolt (4WD Only) (17)
17 (23)
Propeller Shaft No. 2 Bolt (4WD Only) 17 (23)
Suspension Frame Bolt (4WD Only) 65 (90)
Throttle Body Bolt/Nut 18 (25)
Timing Chain Tensioner Adjuster No. 2 Nut 33 (45)
Timing Chain Tensioner Nut 18 (25)
Torque Converter Housing Lower Stiffener 37 (50)
Transfer Mounting Bolt (4WD Only) 37 (50)
Transfer-To-Engine Stiffener Bolt (4WD Only) 37 (50)
Transfer-To-Transaxle Stiffener Bolt (4WD Only) 37 (50)
Transaxle Fluid Drain Plug (A/T) 29 (40)
Transaxle Oil Filler/Level & Drain Plug (M/T) 16 (21)
Water Pump Mounting Bolt 18 (25)
Wheel Nut 62 (85)
INCH Lbs. (N.m)
Baffle Plate 97 (11)
Camshaft Housing Bolt (15) 97 (11)
Crankshaft Position Sensor Bolt 53 (6)
Cylinder Block Heater Bolt 97 (11)
Cylinder Head Cover Nut 97 (11)
Engine Cover Bolt 71 (8)
Oil Pan Bolt/Nut 97 (11)
Oil Pump Case Bolt 106 (12)
Oil Pump Sprocket Cover Bolt 97 (11)
Oil Pump Strainer Bolt 97 (11)
Timing Chain Cover Bolt/Nut 97 (11)
Timing Chain Guide No. 1 Bolt 90 (9)
Timing Chain Tensioner Adjuster No. 1 Bolt 97 (11)
Timing Chain Tensioner Adjuster No. 2 Bolt 97 (11)
(1) Tighten bolts in sequence. See Fig 1.
(2) Tighten bolts 1-10 to 30 Ft Lbs. (40 N.m).
(3) Loosen bolts 1-10 until tightening torque is reduced to 0 (Zero) in reverse order of tightening.
(4) Same as step 1; tighten bolts 1-10 to 30 Ft. Lbs. (40 N.m).
(5) Same as step 1; tighten bolts 1-10 to 30 Ft Lbs. (40 N.m).
(6) Tighten bolts 11-22 to 18 Ft. Lbs. (25 N.m). Tighten bolts 11-22 to 43 Ft. Lbs (58 N.m).
(7) Tighten bolts in sequence. See Fig 2.
(8) Tighten all bolts to 39 Ft. Lbs. (53 N.m).
(9) Retighten bolts to 61 Ft. Lbs. (84 N.m).
(10) Loosen all bolts until tightening torque is reduced to 0 according to tightening sequence.
(11) Tighten all bolts to 39 Ft. Lbs. (53 N.m).
(12) Retighten bolts to 77 Ft. Lbs. (105 N.m).
(13) Hex hole bolt (# 3 in tightening sequence graphic). Tighten bolt to 97 INCH Lbs. (11 N.m).
(14) Tighten bolt/nut marked (a) first. See Fig 4.
(15) Tighten bolts in sequence. Tighten in increments evenly among bolts. Repeat tightening sequence 2 or 3 times before they are tightened to specified torque. See Fig 3.
(16) For engine mounting components, see Fig 5 and Fig 6 .
(17) For propeller shaft tightening specifications, see Fig 7.
(18) Retighten them by turning additional 45°.

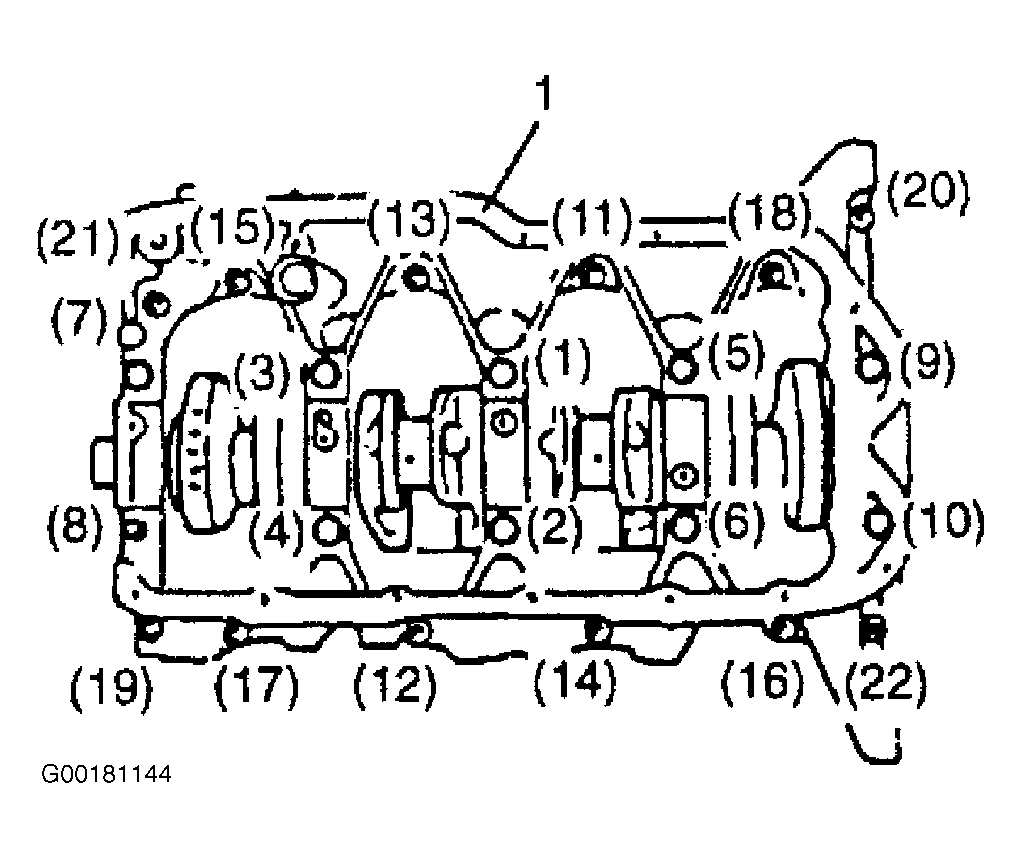

Fig 1: Crankcase Tightening Sequence
G00181144Courtesy of SUZUKI OF AMERICA CORP.

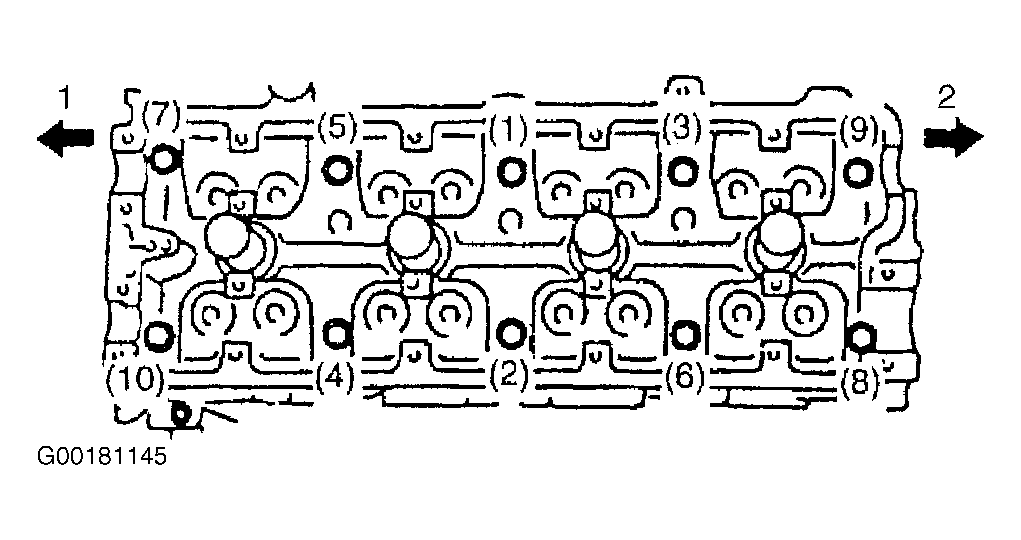

Fig 2: Cylinder Head Tightening Sequence
G00181145Courtesy of SUZUKI OF AMERICA CORP.

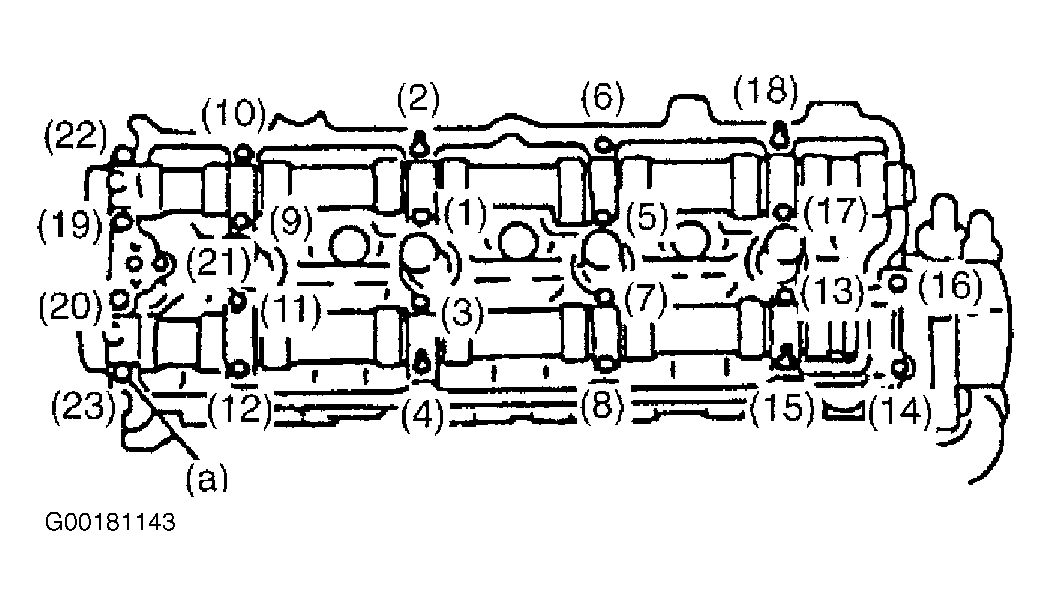

Fig 3: Camshaft Tightening Sequence
G00181143Courtesy of SUZUKI OF AMERICA CORP.

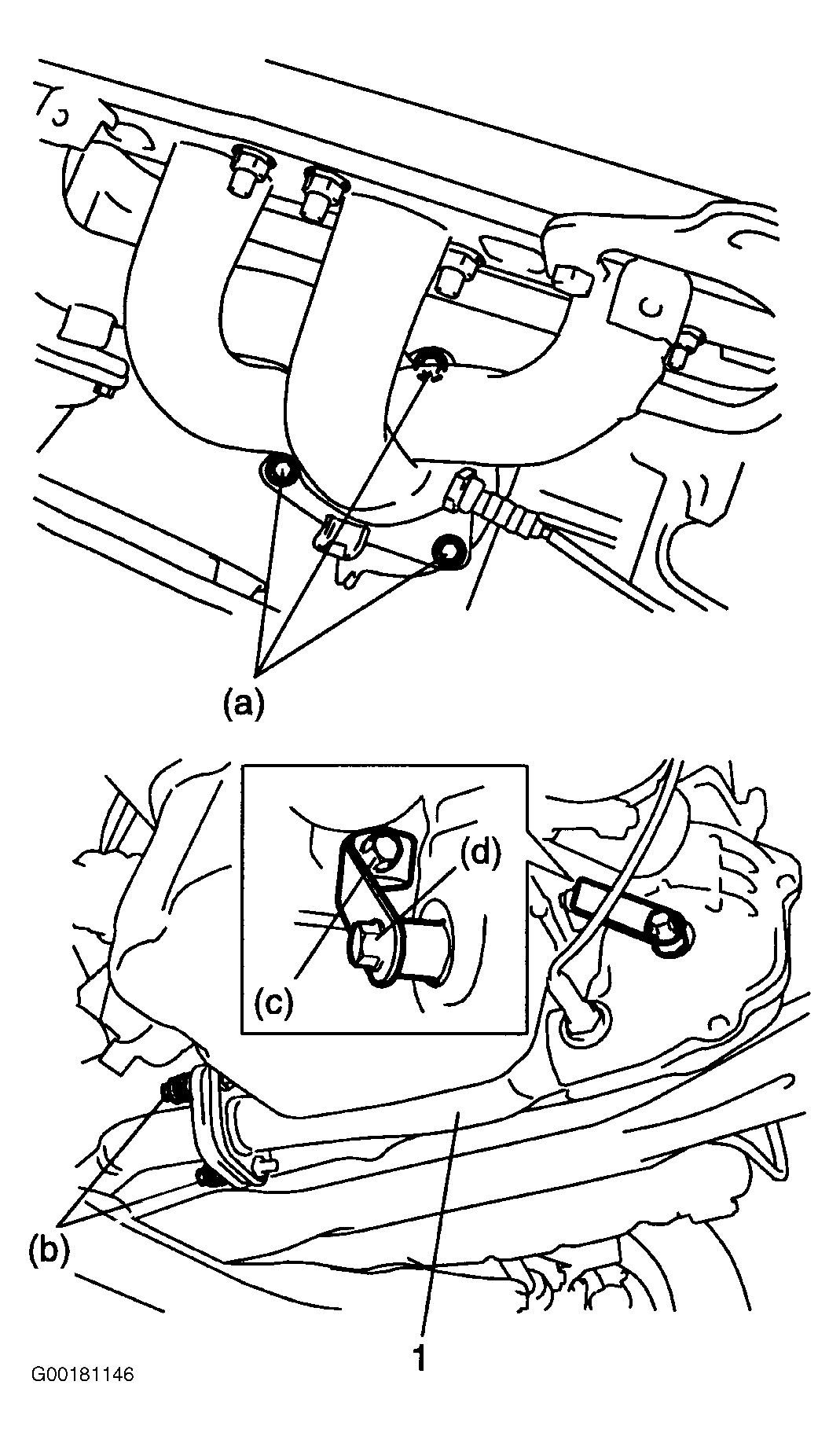

Fig 4: Exhaust Manifold Torque Sequence
G00181146Courtesy of SUZUKI OF AMERICA CORP.

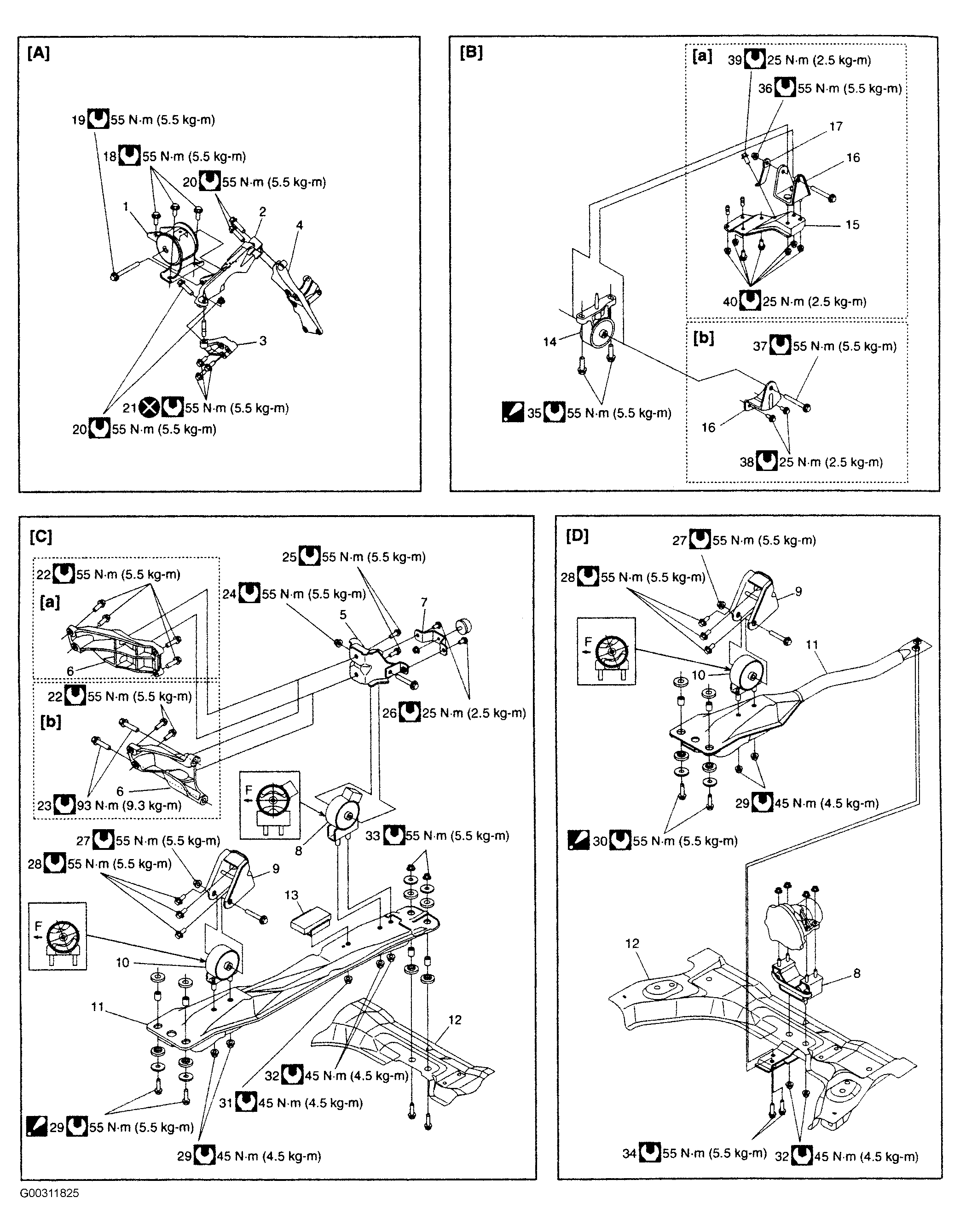

Fig 5: Identifying Engine Mounting Components (1 of 2)
G00311825Courtesy of SUZUKI OF AMERICA CORP.

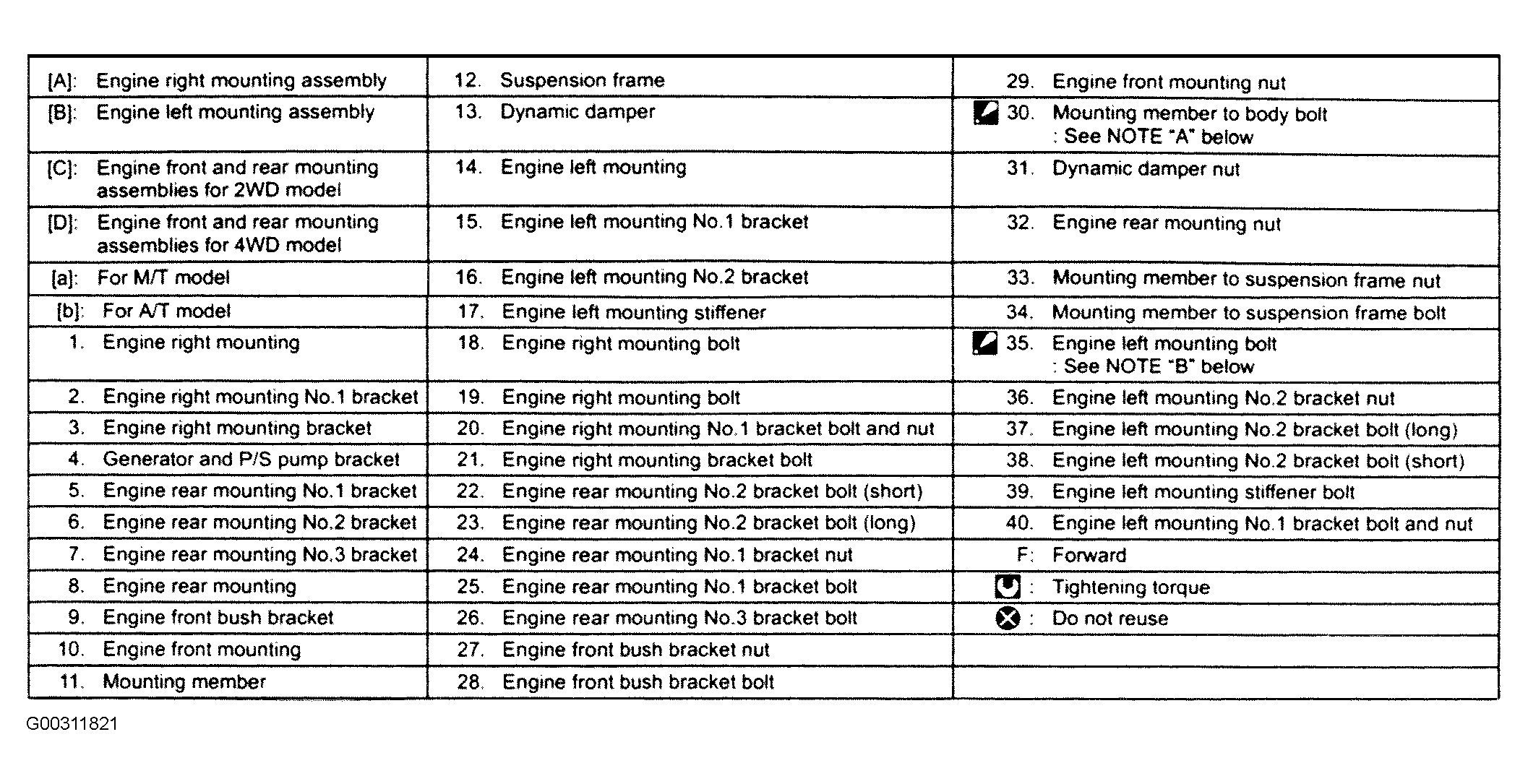

Fig 6: Identifying Engine Mounting Components (2 of 2)
G00311821Courtesy of SUZUKI OF AMERICA CORP.

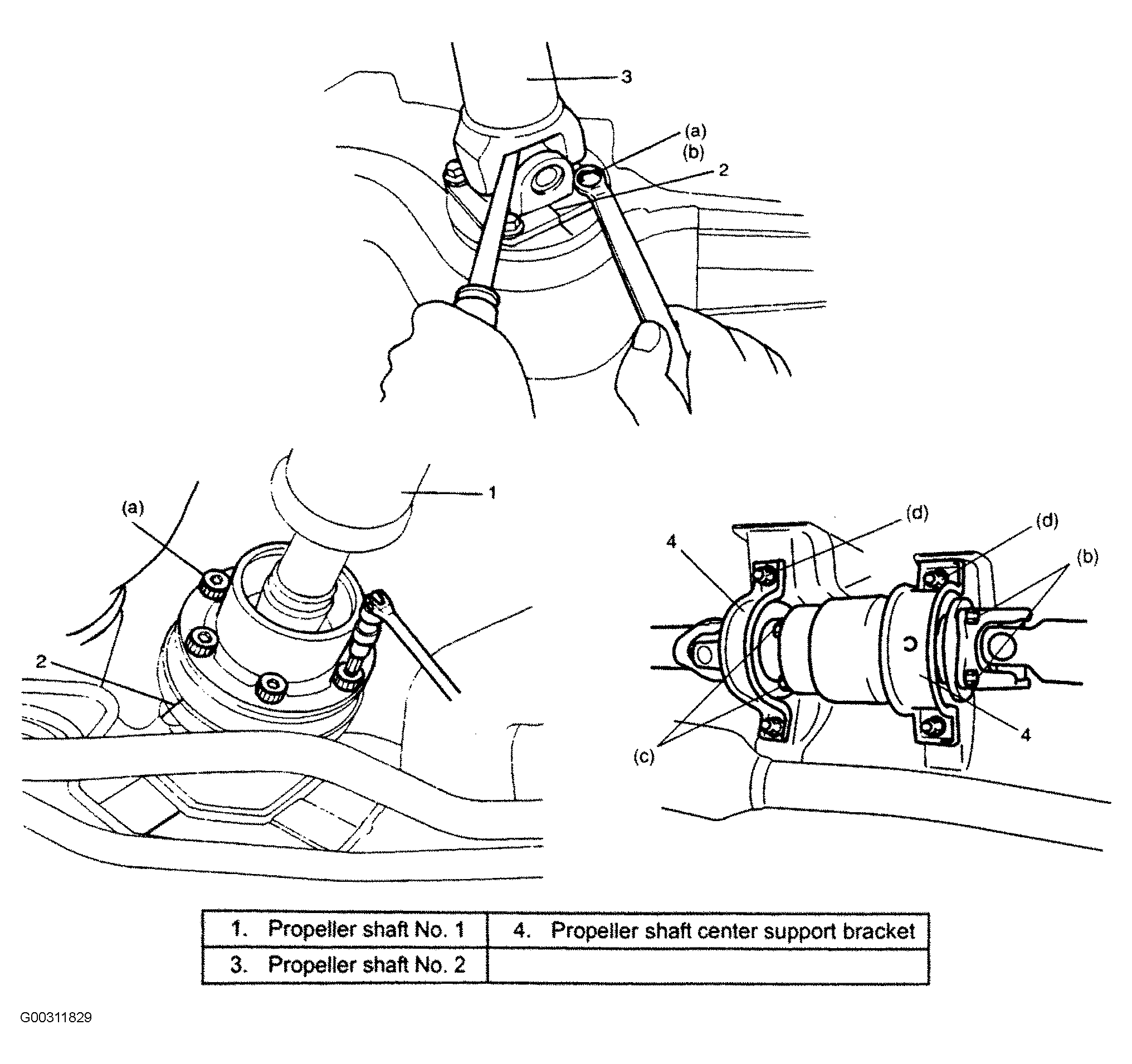

Fig 7: Identifying Propeller Shaft Tightening Specifications
G00311829Courtesy of SUZUKI OF AMERICA CORP.
