Home >> Suzuki >> 2004 >> Aerio S, Automatic >> Repair and Diagnosis >> Engine Performance >> Ignition System >> Diagnostic Information and Procedures >> Ignition System Symptom Diagnosis >> Notes

Ignition System Symptom Diagnosis: Notes

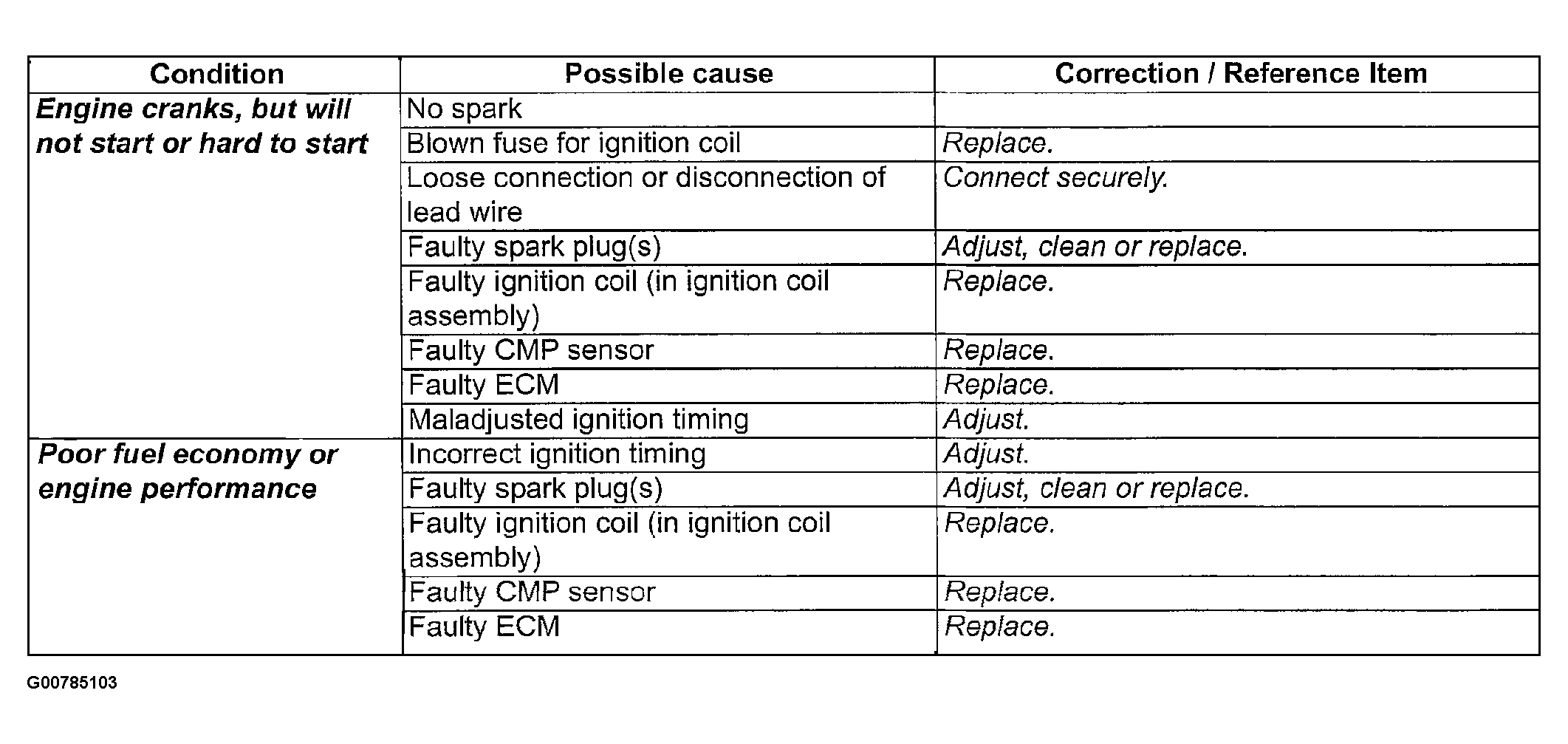

Fig 1: Ignition System Symptom Diagnosis Table

G00785103

Courtesy of SUZUKI OF AMERICA CORP.
