Engine and Emission Control System Diagram

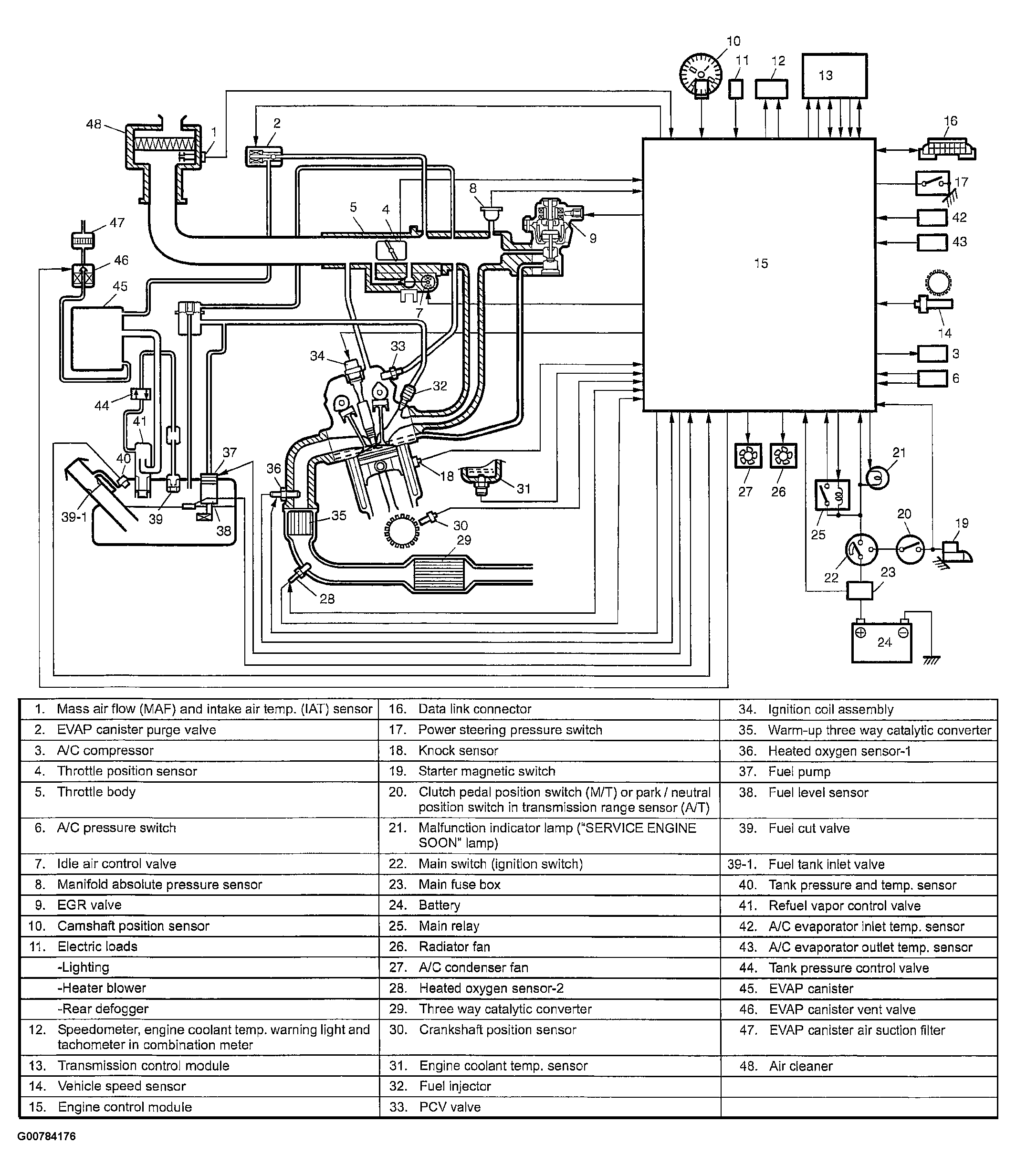

Fig 1: Engine & Emission Control System Diagram

G00784176

Courtesy of SUZUKI OF AMERICA CORP.
