Tightening Torque Specifications

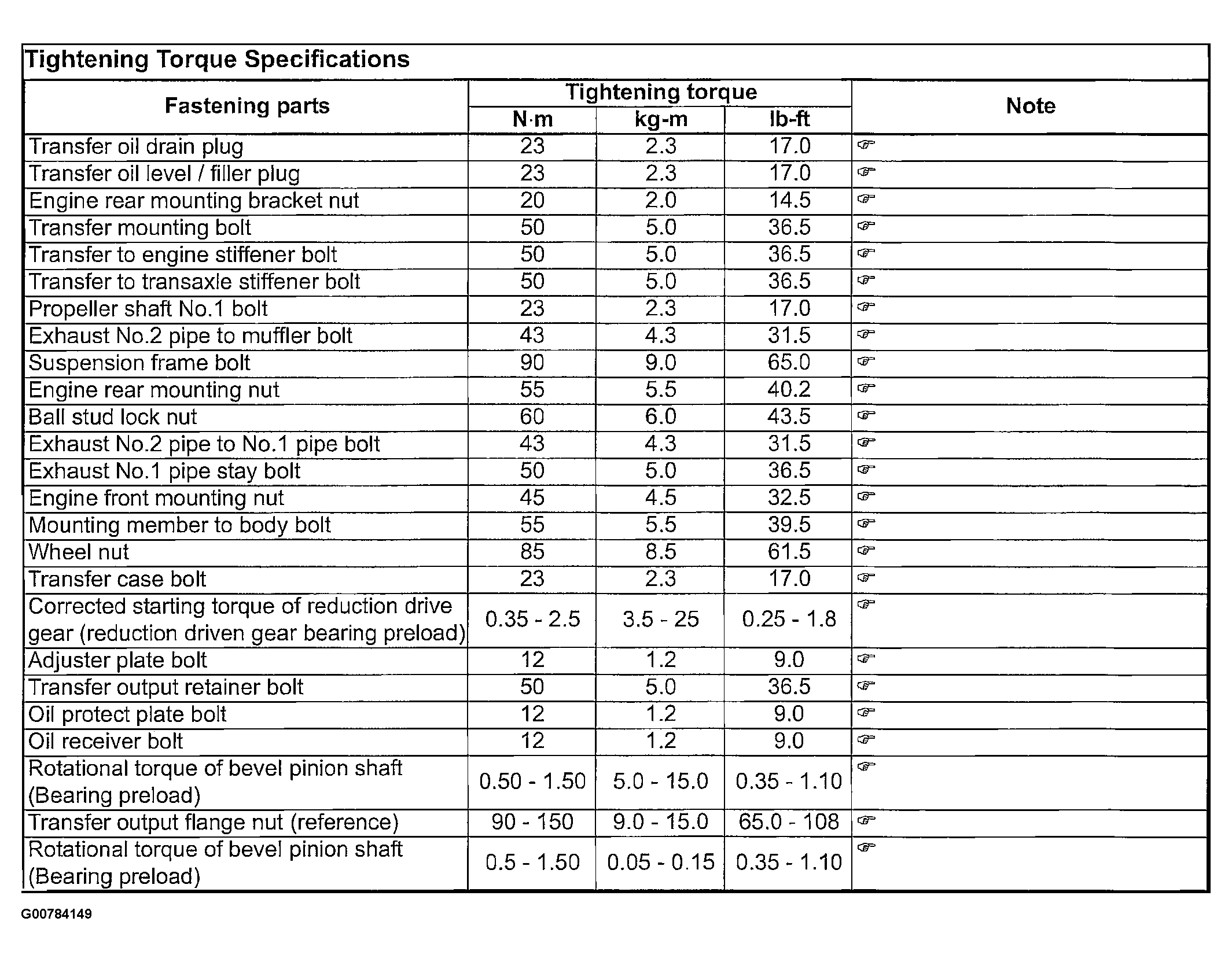

Fig 1: Tightening Torque Specifications
G00784149Courtesy of SUZUKI OF AMERICA CORP.
NOTE: The specified tightening torque is described in the following.
