Suzuki
>>
2004
>>
Aerio LX, AWD, Automatic
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Engine General Information & Diagnosis
>>
General Description
>>
Engine and Emission Control Input/Output Table
Engine and Emission Control Input/Output Table

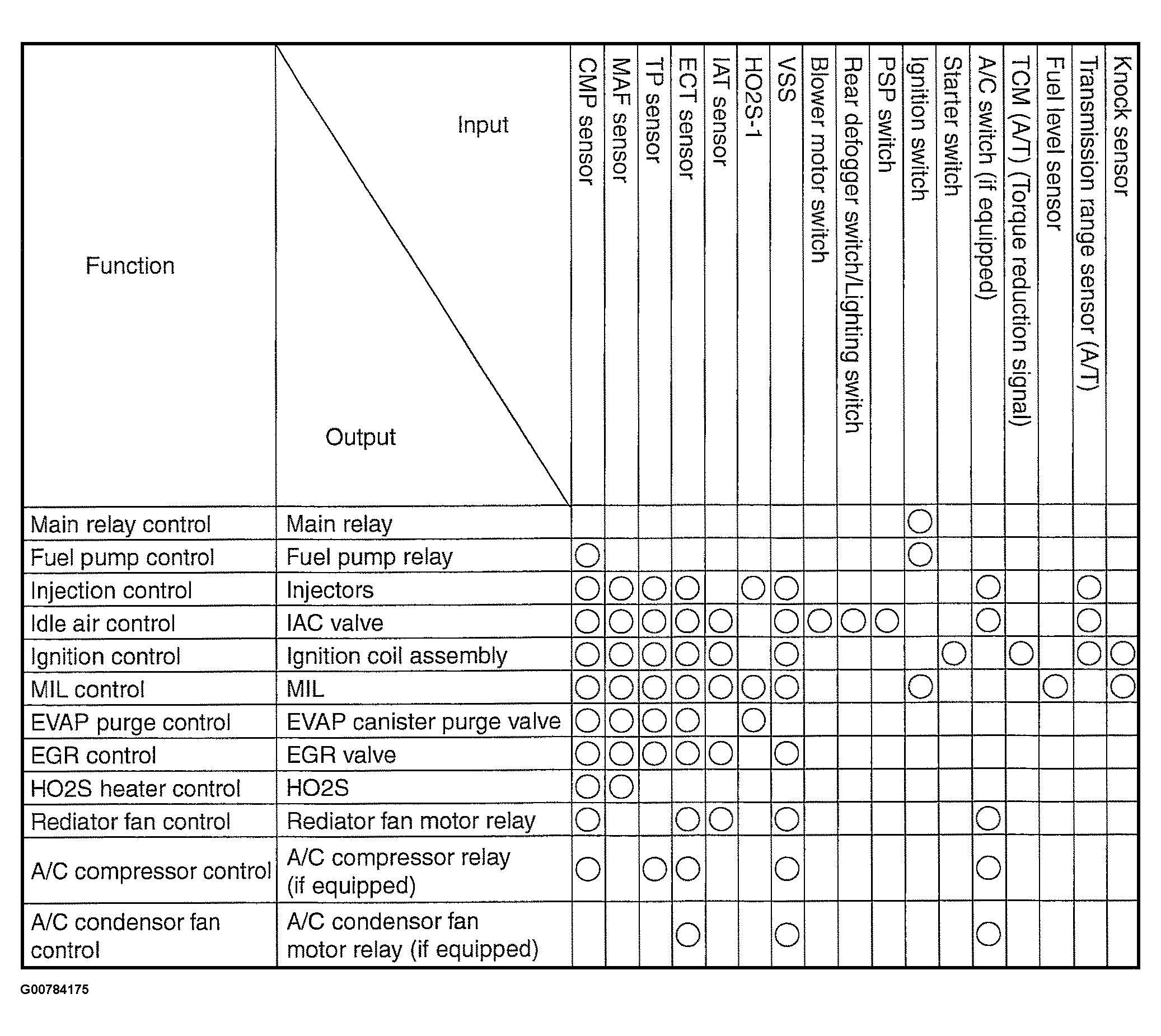

Fig 1: Engine & Emission Control Input/Output Table
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
