Home >> Suzuki >> 2004 >> Aerio LX, AWD, Automatic >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine General Information & Diagnosis >> Components Location >> Electronic Control System Components Location

Electronic Control System Components Location

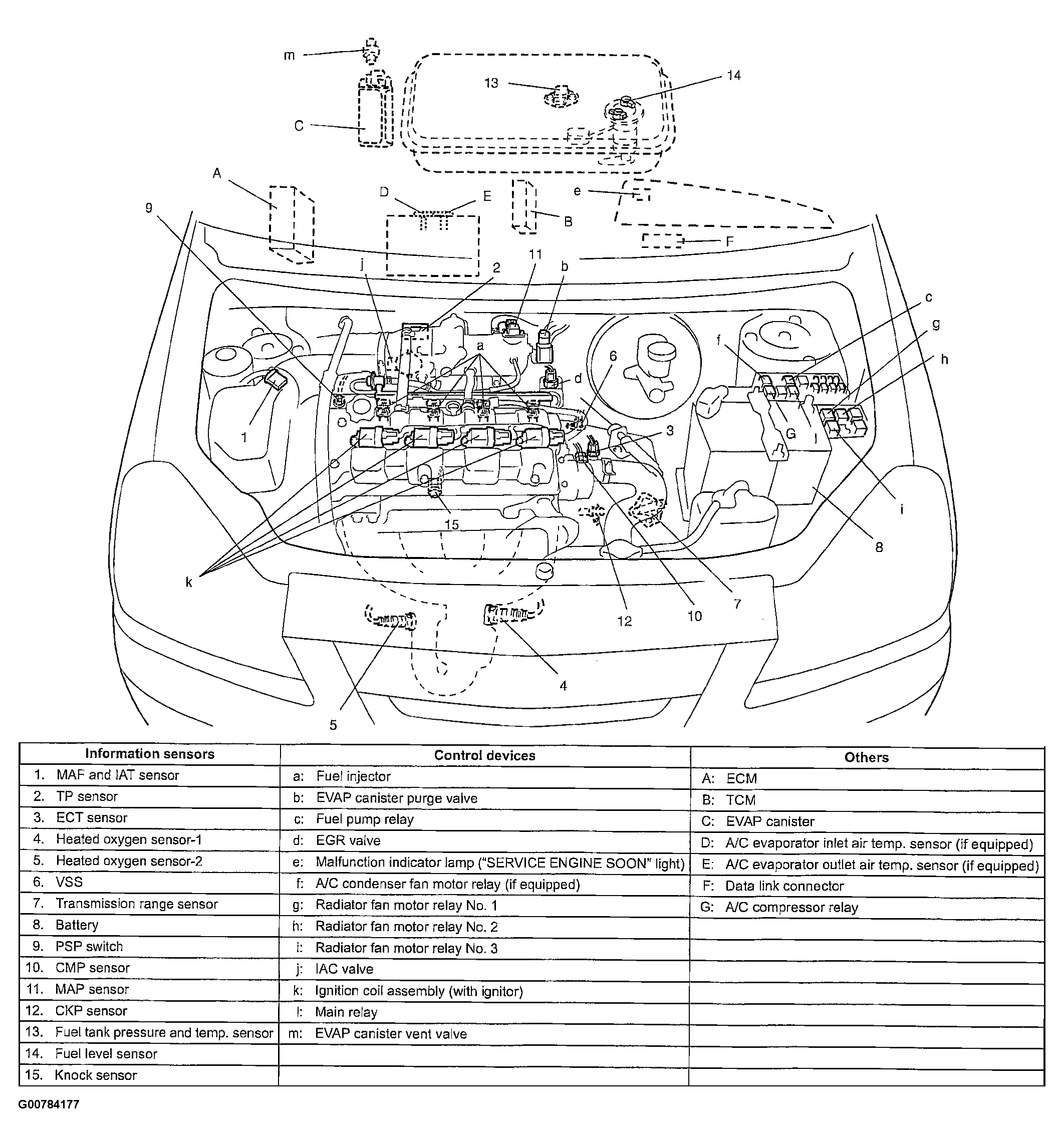

Fig 1: Electronic Control System Components Locations

G00784177

Courtesy of SUZUKI OF AMERICA CORP.
