General Description
>>
Fail-Safe Operation Table
Fail-Safe Operation Table

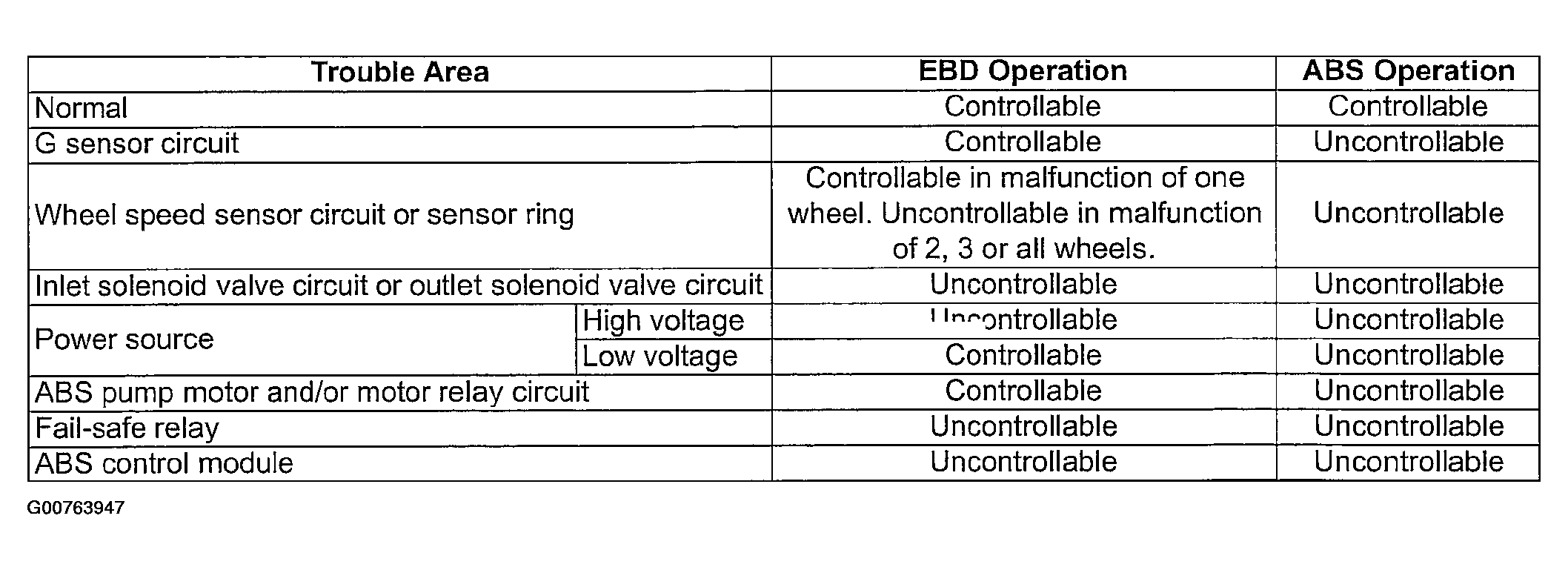

Fig 1: Fail-Safe Operation Table
Courtesy of SUZUKI OF AMERICA CORP.
