Serial Data Link Circuit Check: Notes

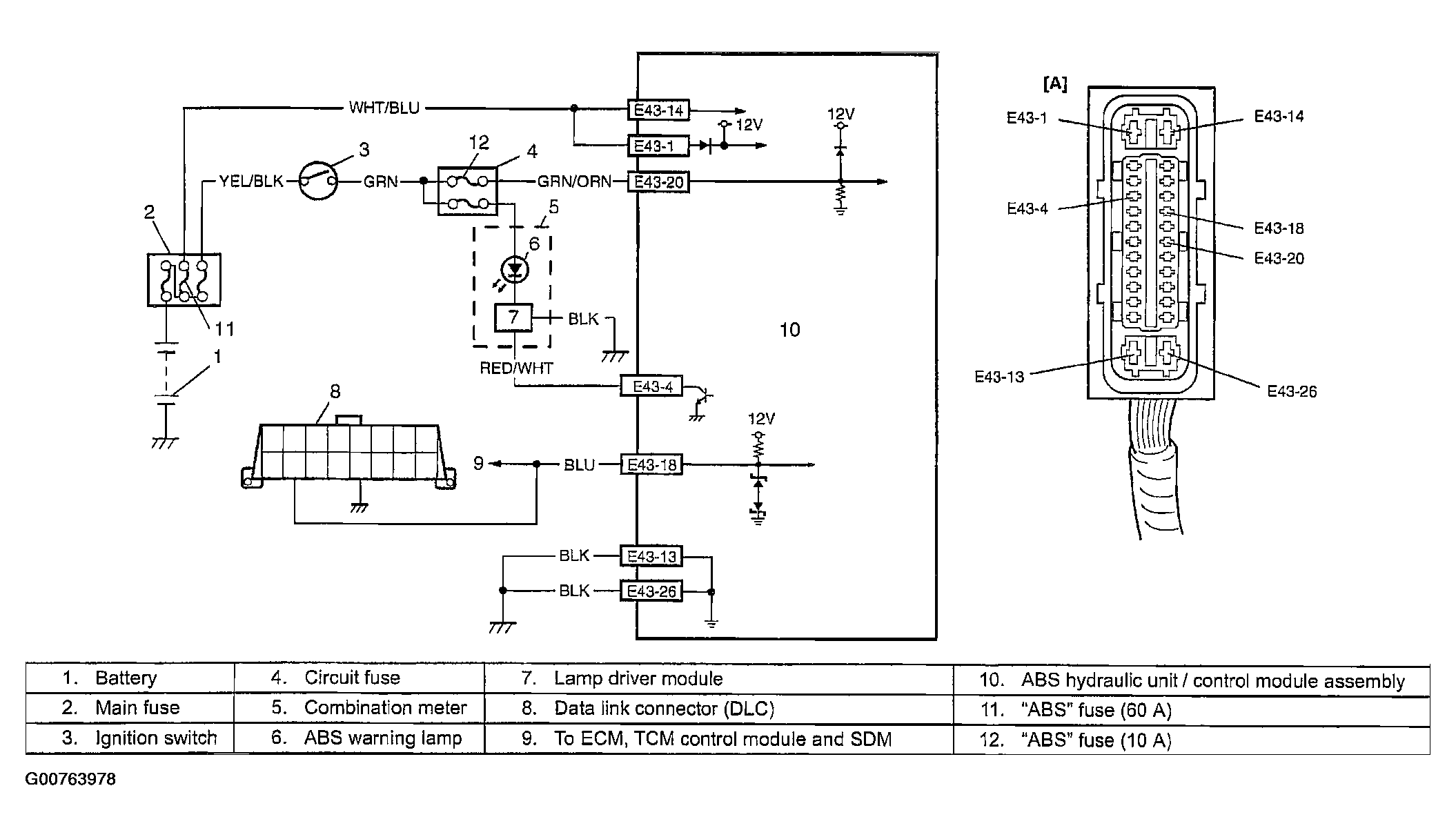

Fig 1: Serial Data Link Circuit Check
G00763978Courtesy of SUZUKI OF AMERICA CORP.
