A/T System Check: Notes

Refer to the following items for the details of each step.

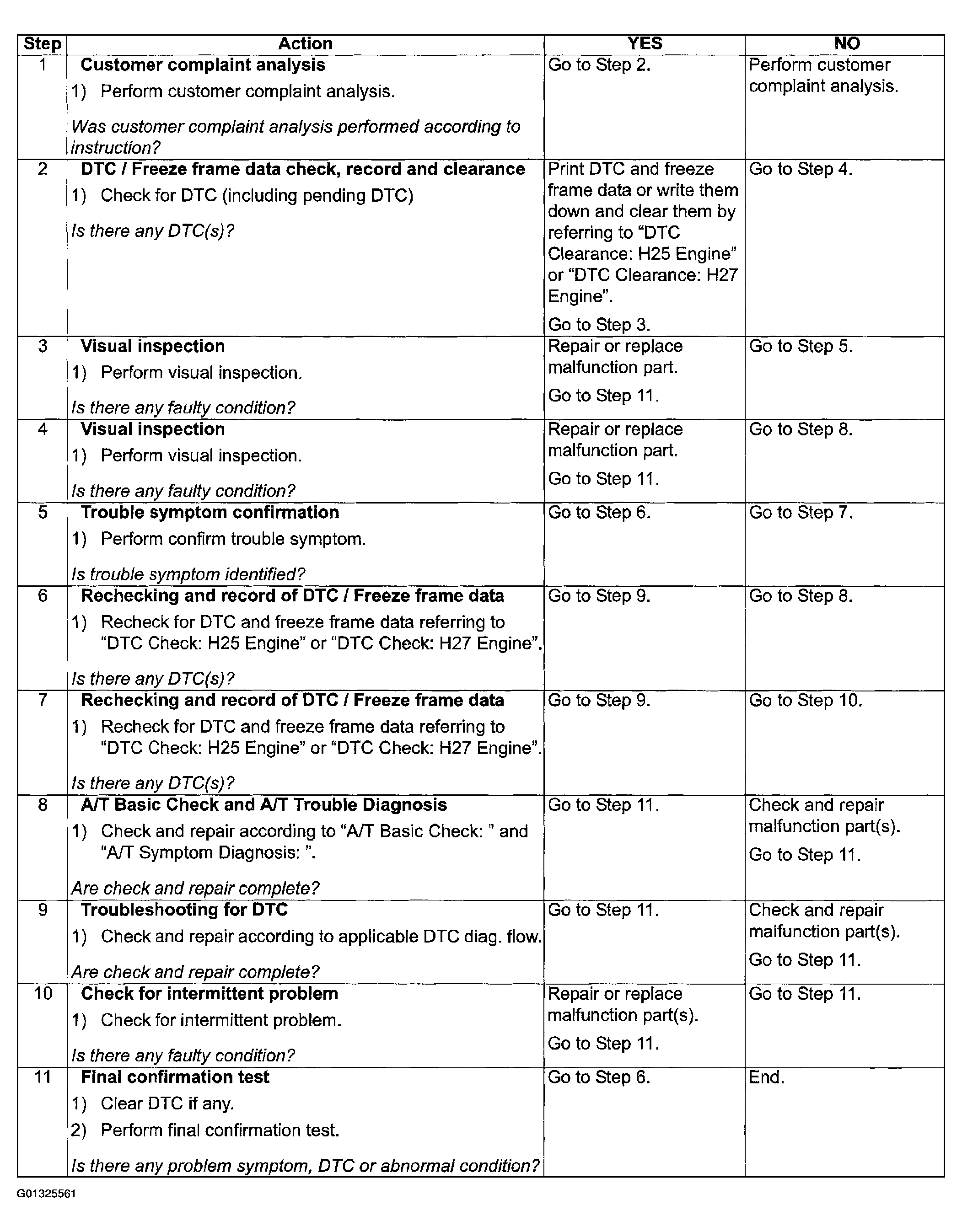

Fig 1: Automatic Transmission System Check Chart

G01325561

Courtesy of SUZUKI OF AMERICA CORP.
