Tie-Rod End Boot Check

Check boot for crack and damage and if any, replace it with a new one.

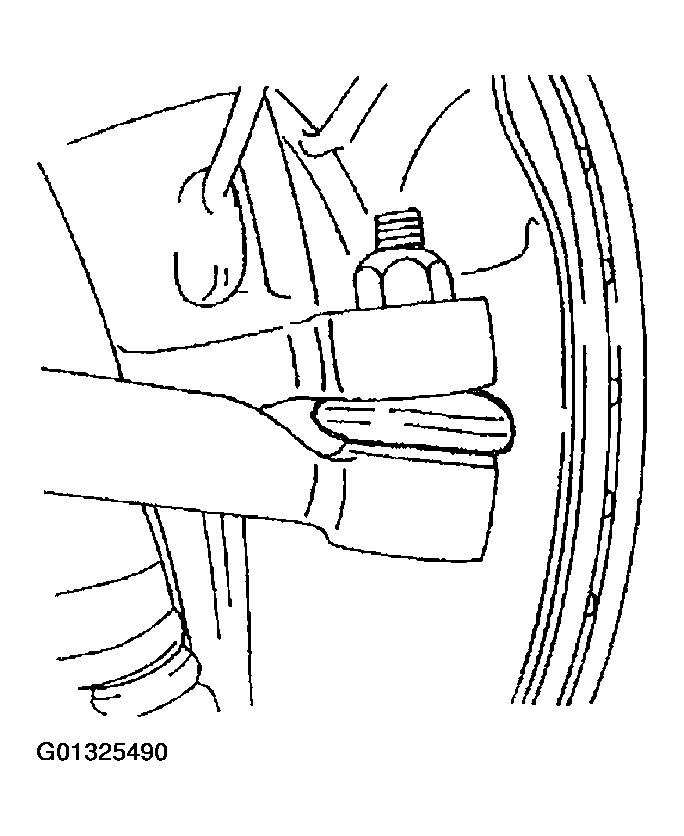

Fig 1: Checking Tie Rod End Boot

G01325490

Courtesy of SUZUKI OF AMERICA CORP.
