Fuel Pump Relay Inspection

Disconnect negative (-) cable at battery.
Remove fuel pump relay (1) from relay box (2).

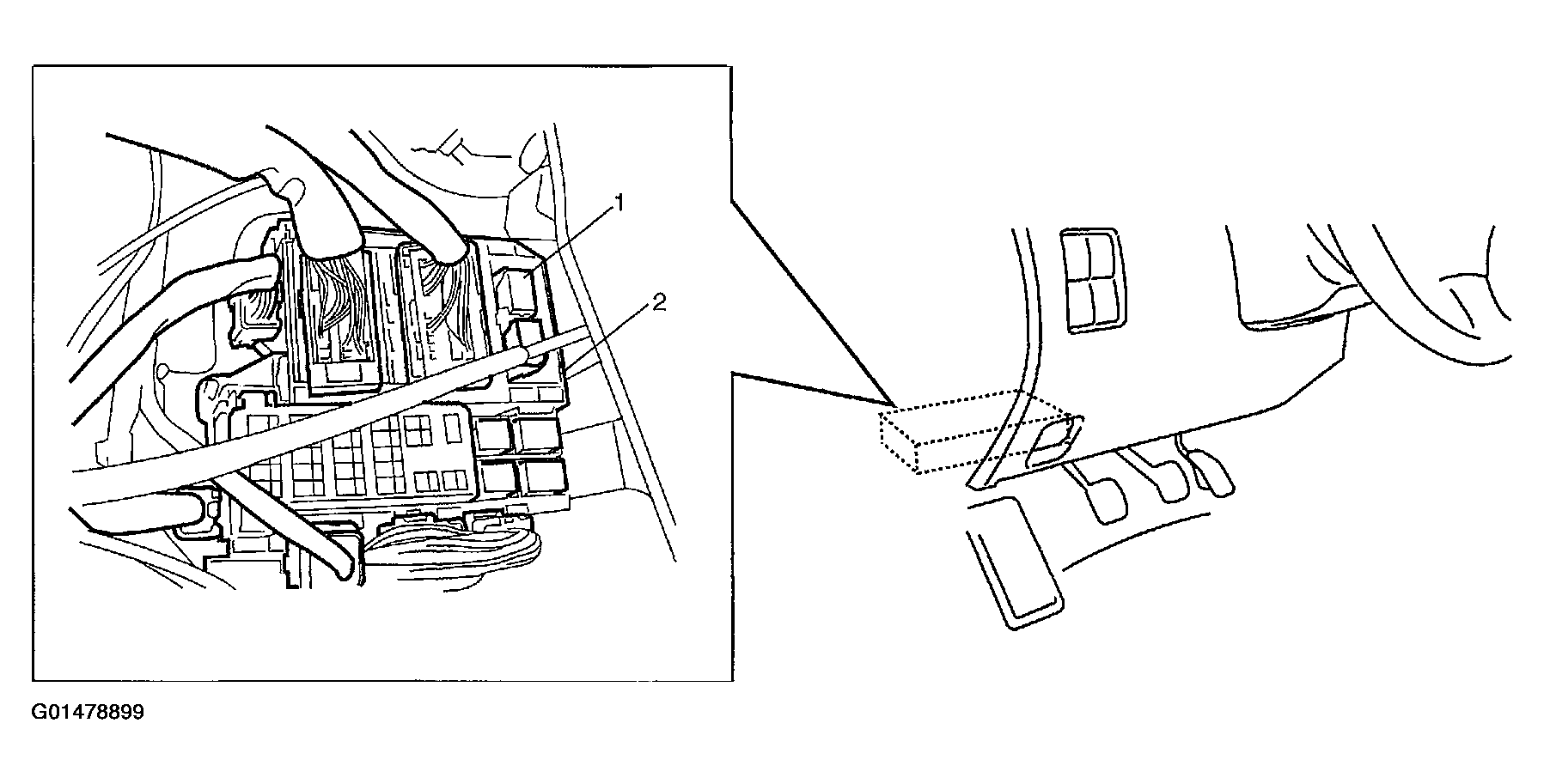

Fig 1: Removing Fuel Pump Relay From Relay Box
Courtesy of SUZUKI OF AMERICA CORP.
Structure of fuel pump relay is the same as that of main relay.
Check its resistance and operation using the same procedure as that for FUEL PUMP RELAY & MAIN RELAY (GRAND VITARA, VITARA & XL-7) . If malfunction is found, replace.
