Exhaust System Components
Exhaust System Components

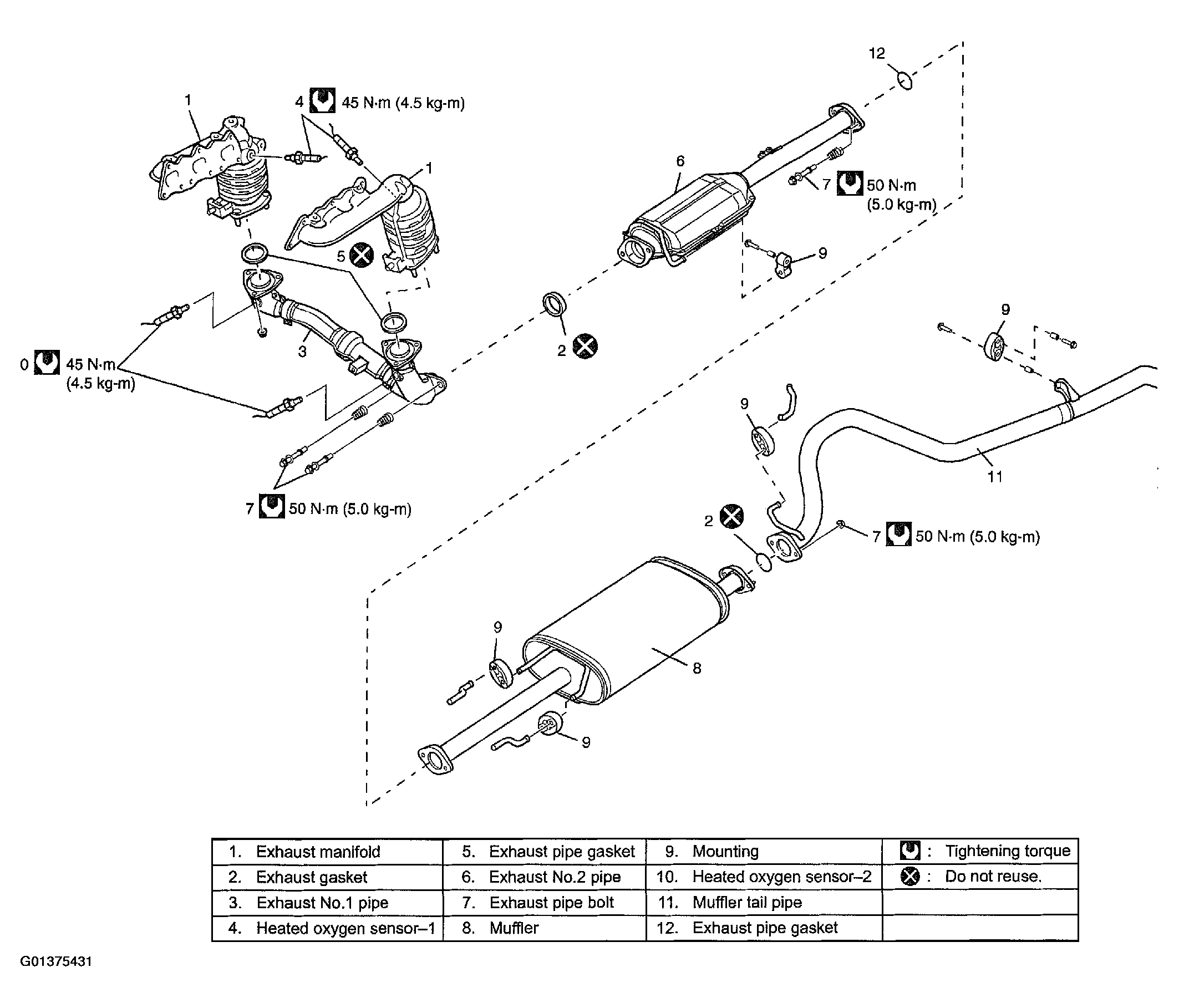

Fig 1: Exploded View Of Exhaust System Components
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
