Emergency Jacking

Ensure that parking park is set. Shift into "P" (Park) for automatic transmission, or "R" (Reverse) for manual transmission. Block the front and rear of the wheel diagonally opposite of the wheel being lifted. Position the jack vertically and raise the jack by turning the handle clockwise until the jack head recess fits around the frame boss. See Fig 1. Continue to raise the jack slowly until the tire clears the ground. Do not raise vehicle more than necessary.

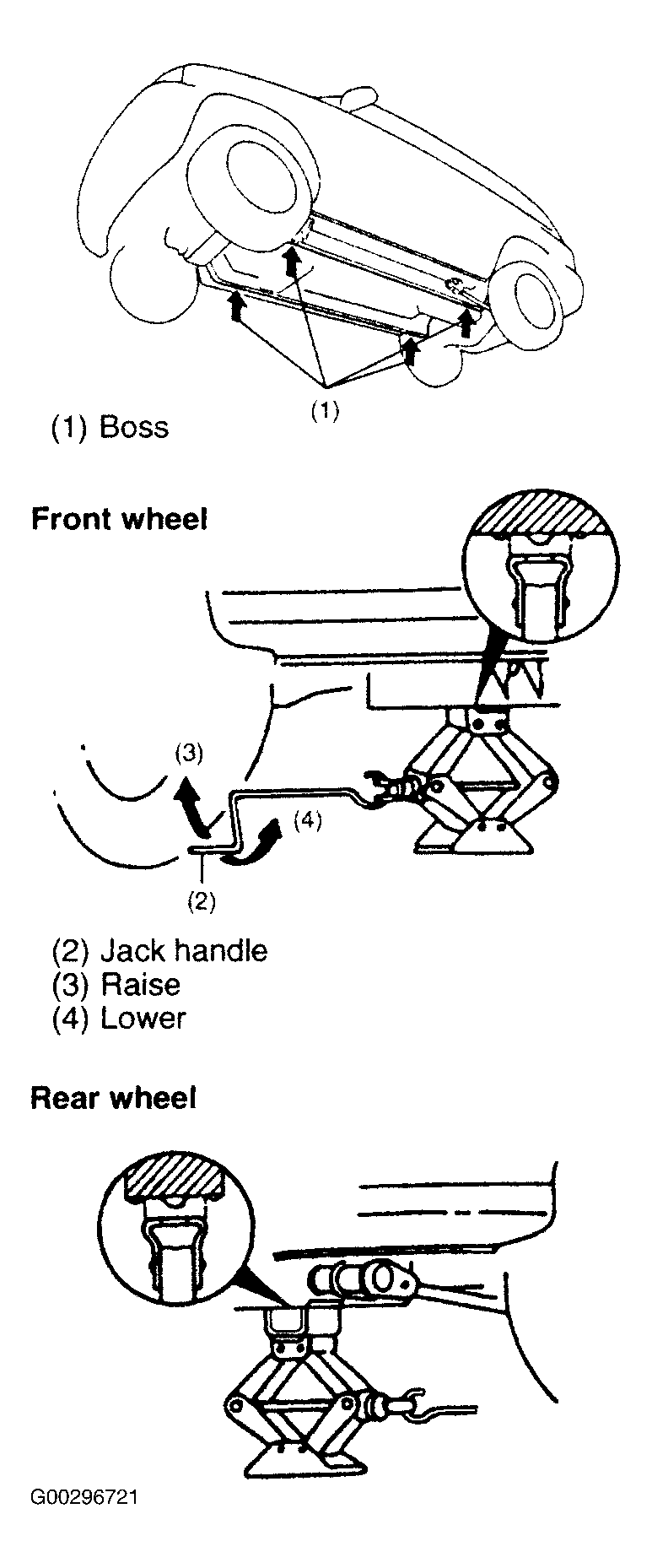

Fig 1: Positioning Emergency Jack
G00296721Courtesy of SUZUKI OF AMERICA CORP.
