Fuel Pump Relay Inspection

  1. Disconnect negative cable at battery.
  2. Remove fuel pump relay (1) from connector.

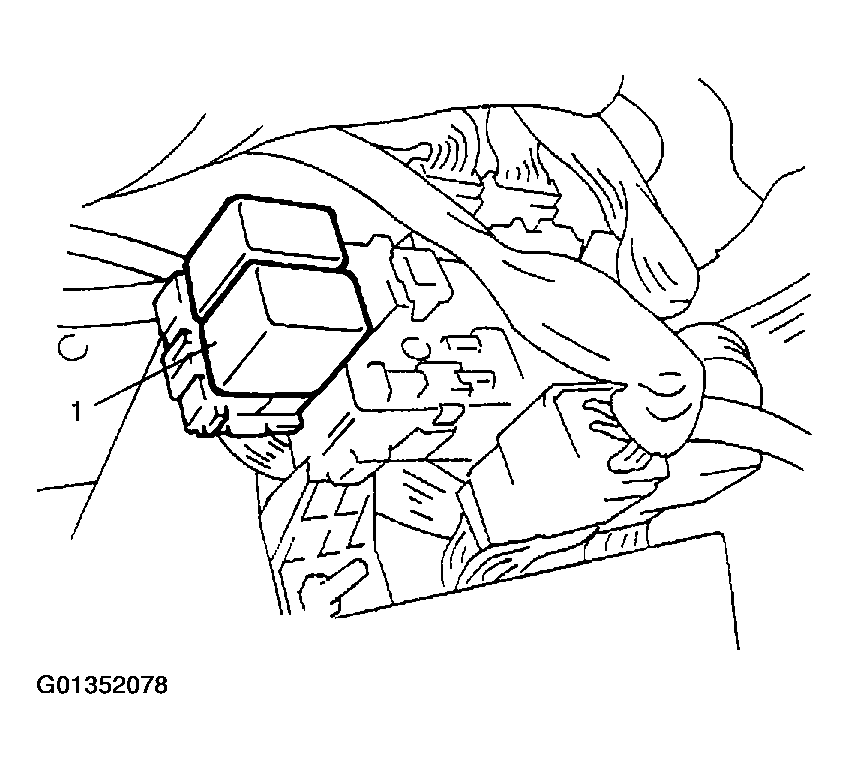

    Fig 1: Removing Fuel Pump Relay From Connector
    G01352078Courtesy of SUZUKI OF AMERICA CORP.
  3. Structure of fuel pump relay is the some as that of main relay.

    Check its resistance and operation using the same procedures as that for main relay. If malfunction is found, replace.
