G Sensor Specification

  1. When placed horizontally [A]:  2 - 3 V
  2. When placed upright with arrow upward [B]:  3 - 4 V
  3. When placed upright with arrow downward [C]:  1 - 2 V

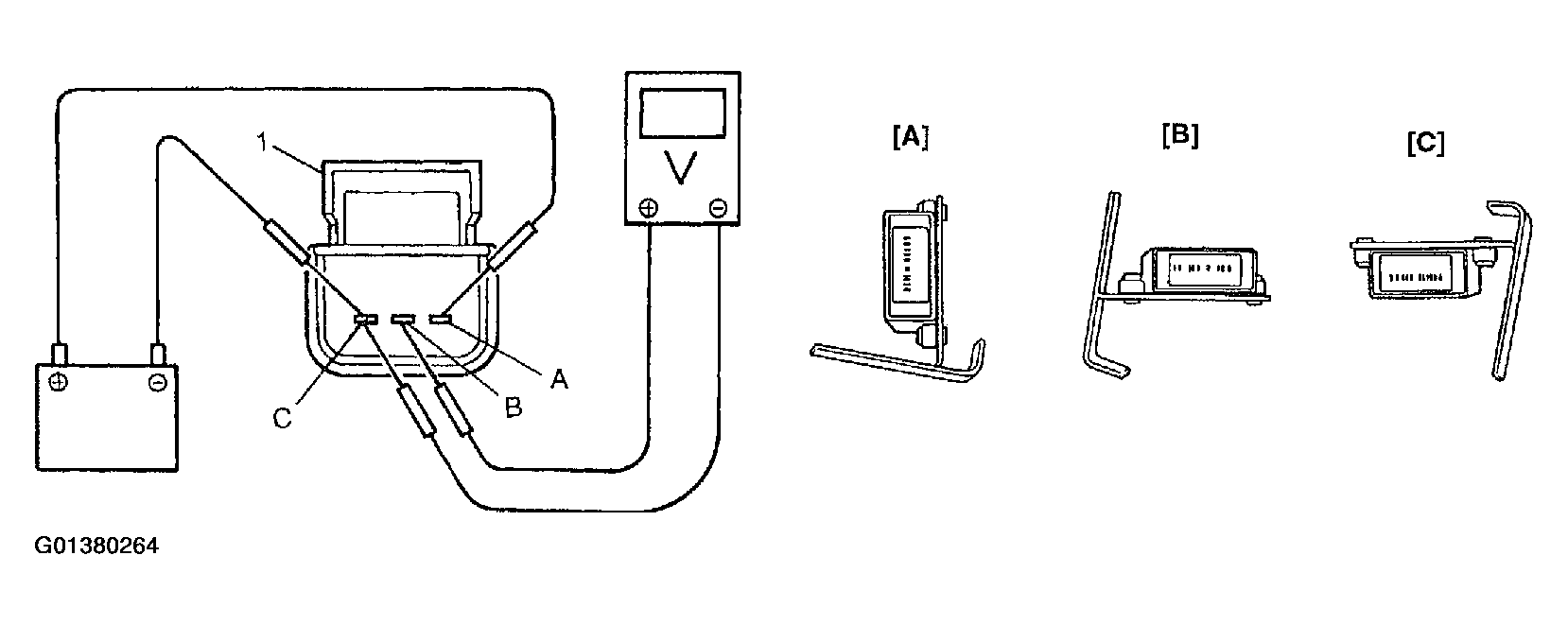

    Fig 1: Checking Voltage Between Terminals
    G01380264Courtesy of SUZUKI OF AMERICA CORP.
