4WD Control System Components and Functions

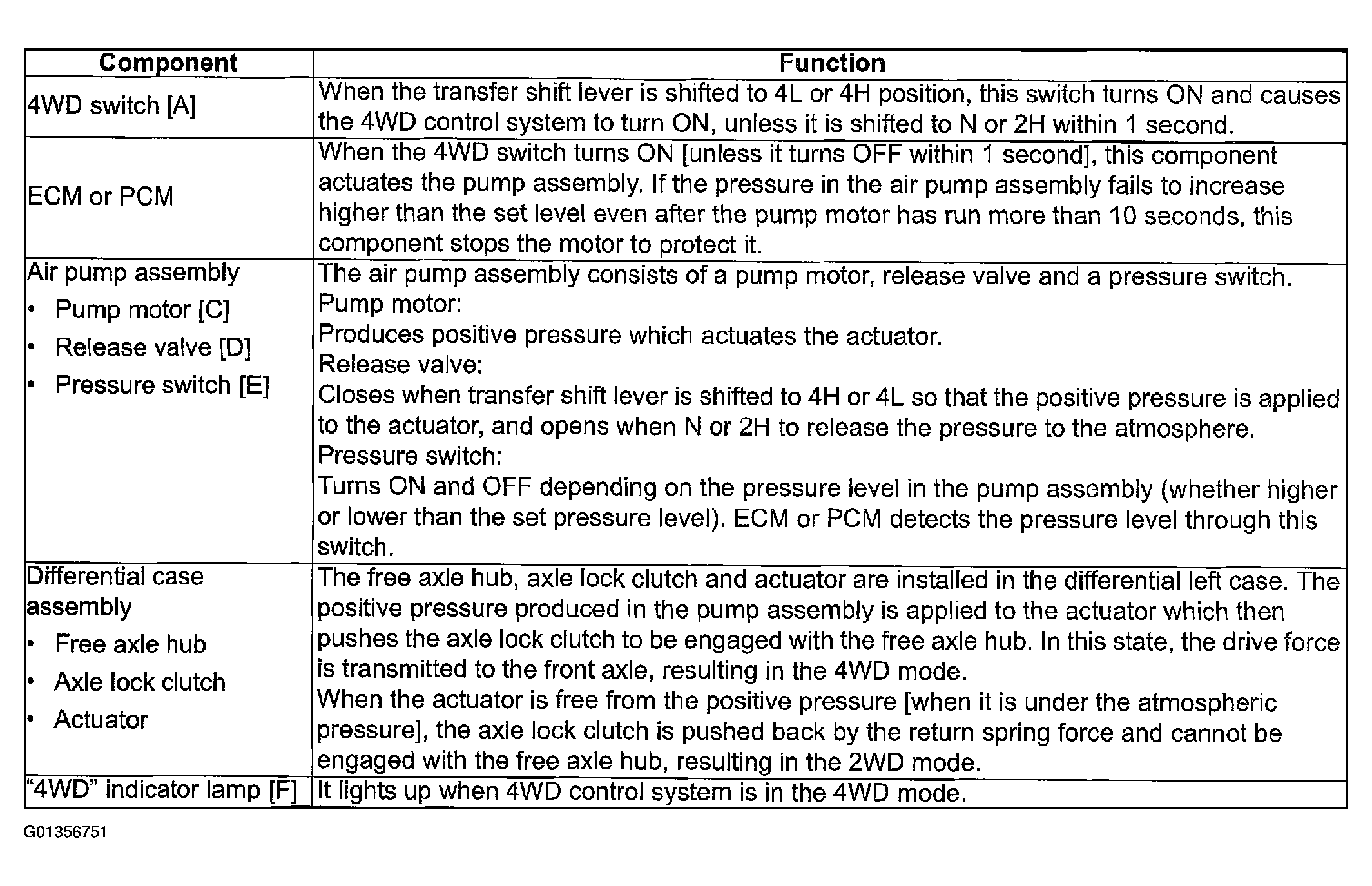

Fig 1: 4WD Control System Components & Functions Chart (1 Of 2)
G01356751Courtesy of SUZUKI OF AMERICA CORP.

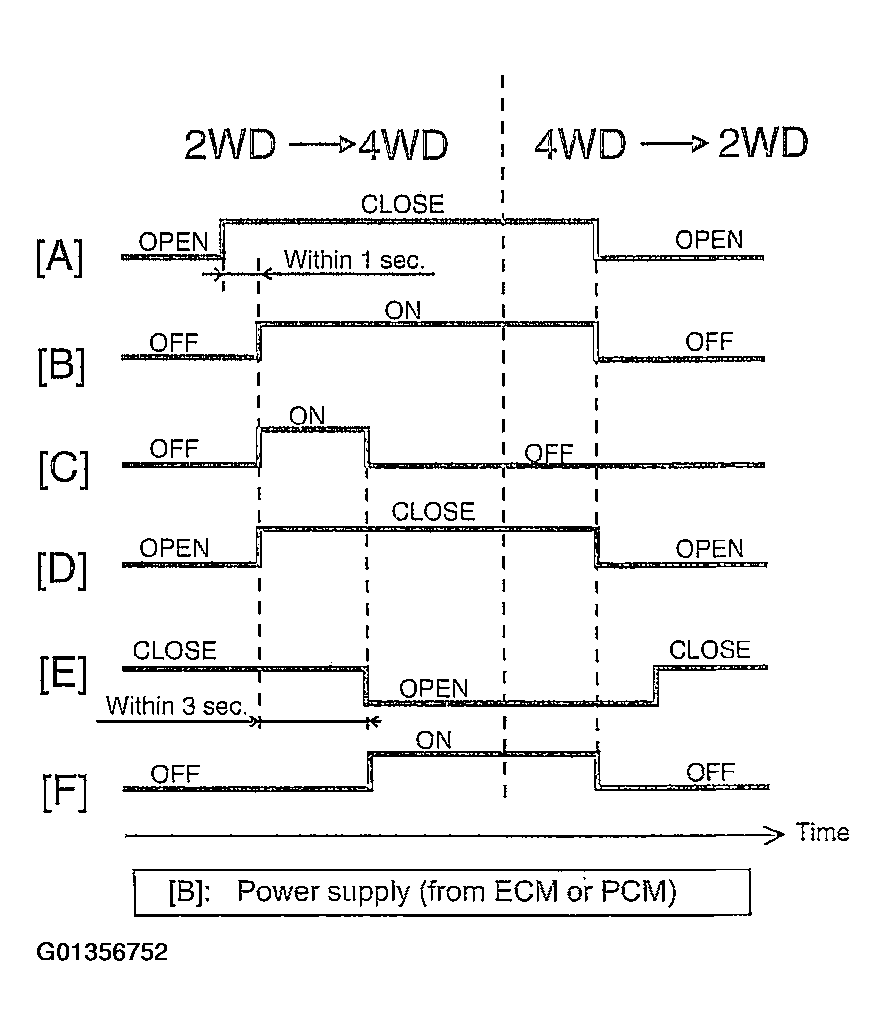

Fig 2: 4WD Control System Components & Functions Chart (2 Of 2)
G01356752Courtesy of SUZUKI OF AMERICA CORP.
