Ignition System Wiring Circuit
Ignition System Wiring Circuit
NOTE:
For ECM (PCM) terminal assignment, refer to
TEST PROCEDURES
, Pin Voltage Chart.

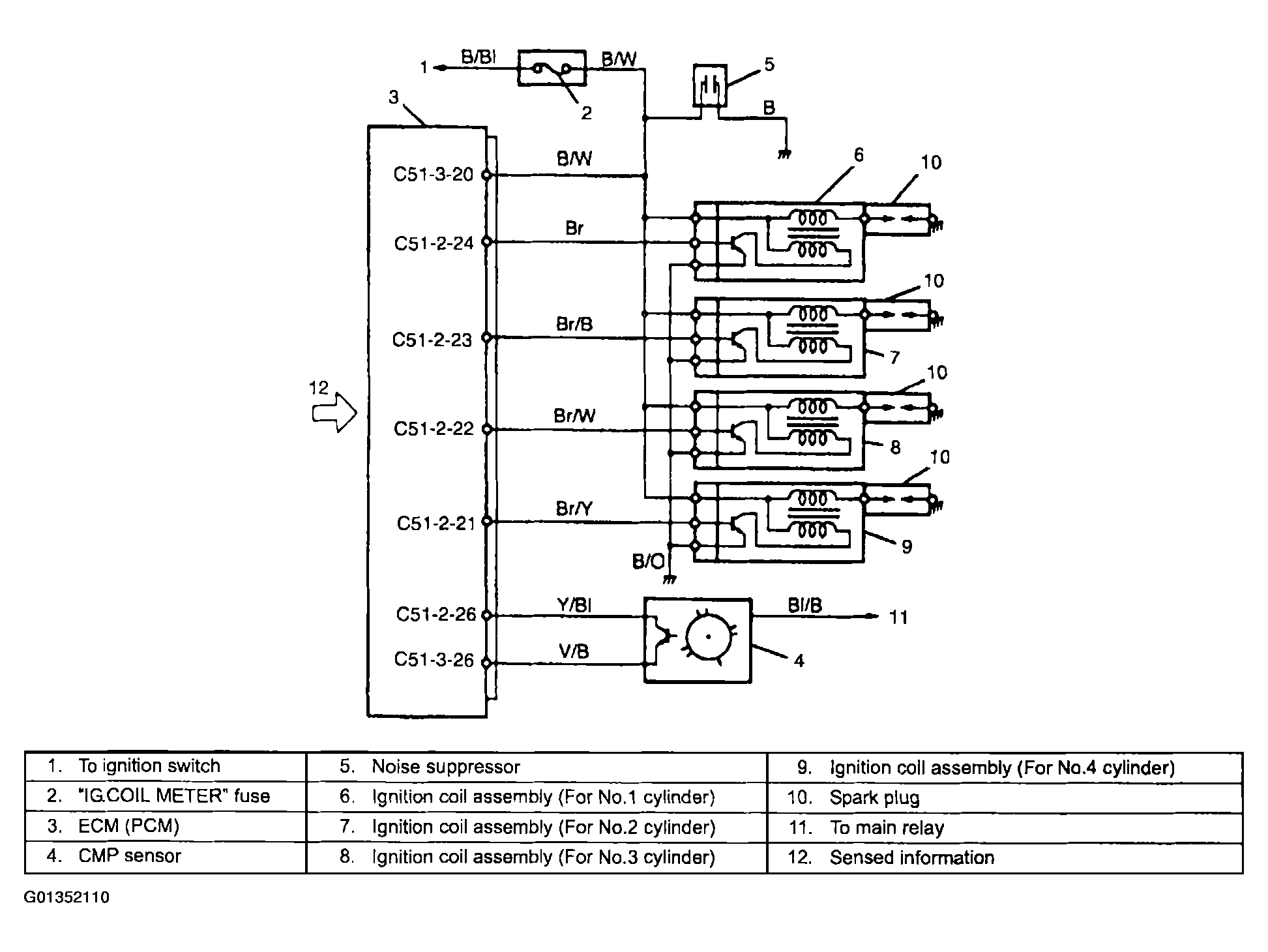

Fig 1: Ignition System Wiring Diagram
Courtesy of SUZUKI OF AMERICA CORP.
