Anti-Lock Brake System Components Location

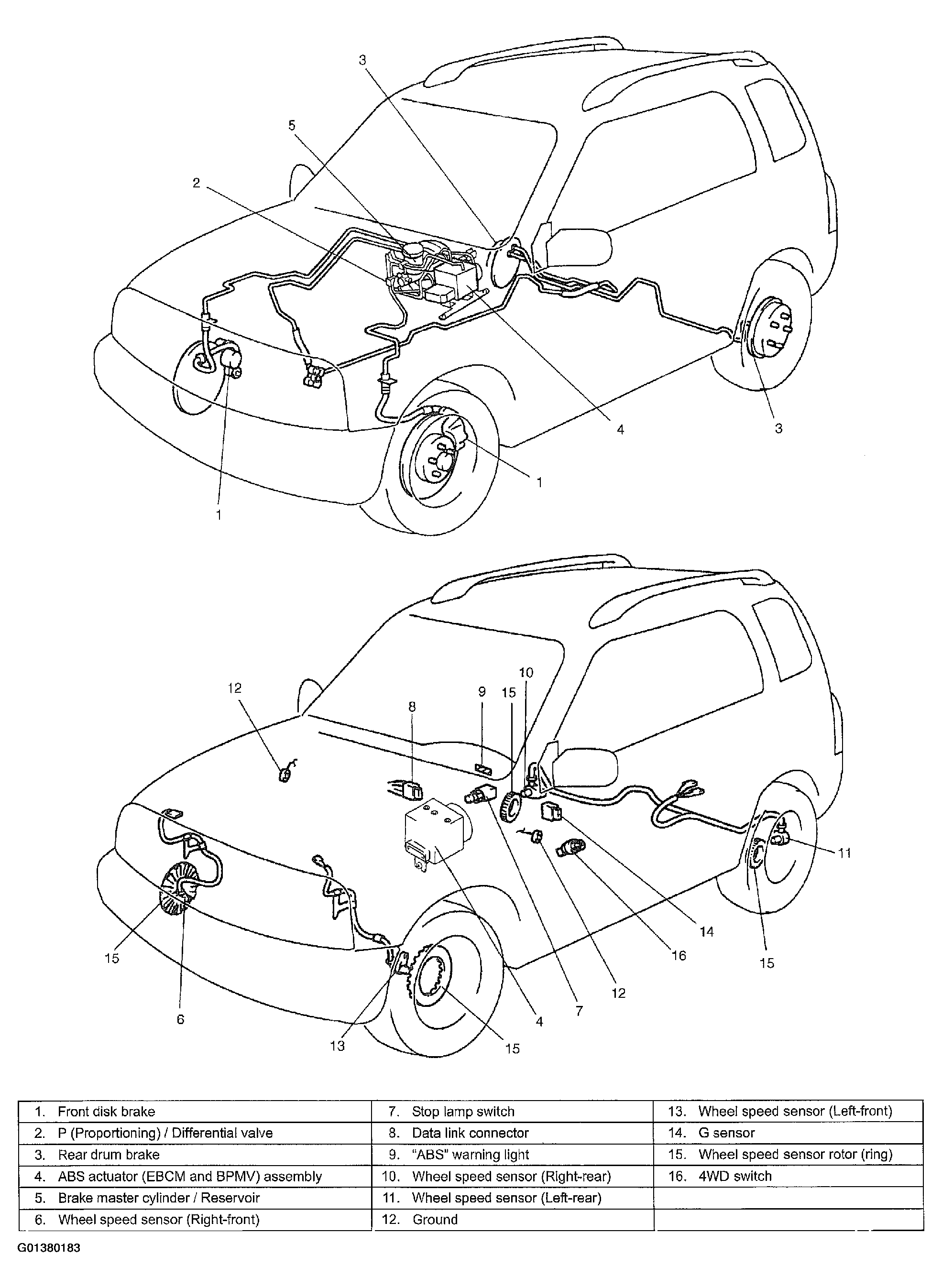

Fig 1: Identifying Anti-lock Brake System Components

G01380183

Courtesy of SUZUKI OF AMERICA CORP.
