Suzuki
>>
2003
>>
Grand Vitara RWD, Standard
>>
Repair and Diagnosis
>>
Transmission
>>
Transfer Case
>>
Specifications
>>
Tightening Torque Specifications
Tightening Torque Specifications

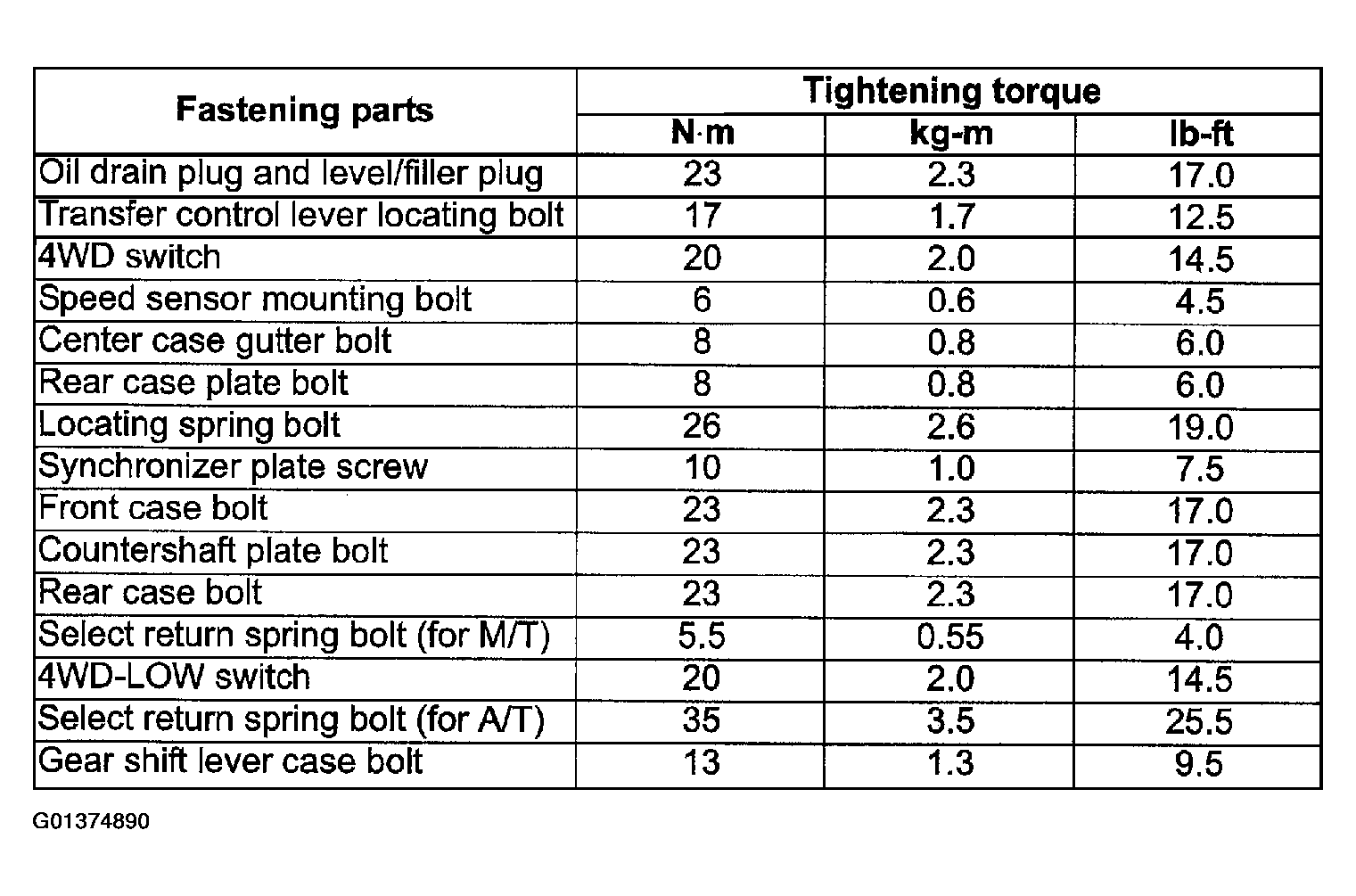

Fig 1: Tightening Torque Specifications
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
