Home >> Suzuki >> 2003 >> Grand Vitara 4WD, Standard >> Repair and Diagnosis >> Transmission >> Transfer Case >> Repair Instructions >> Transfer Components

Transfer Components

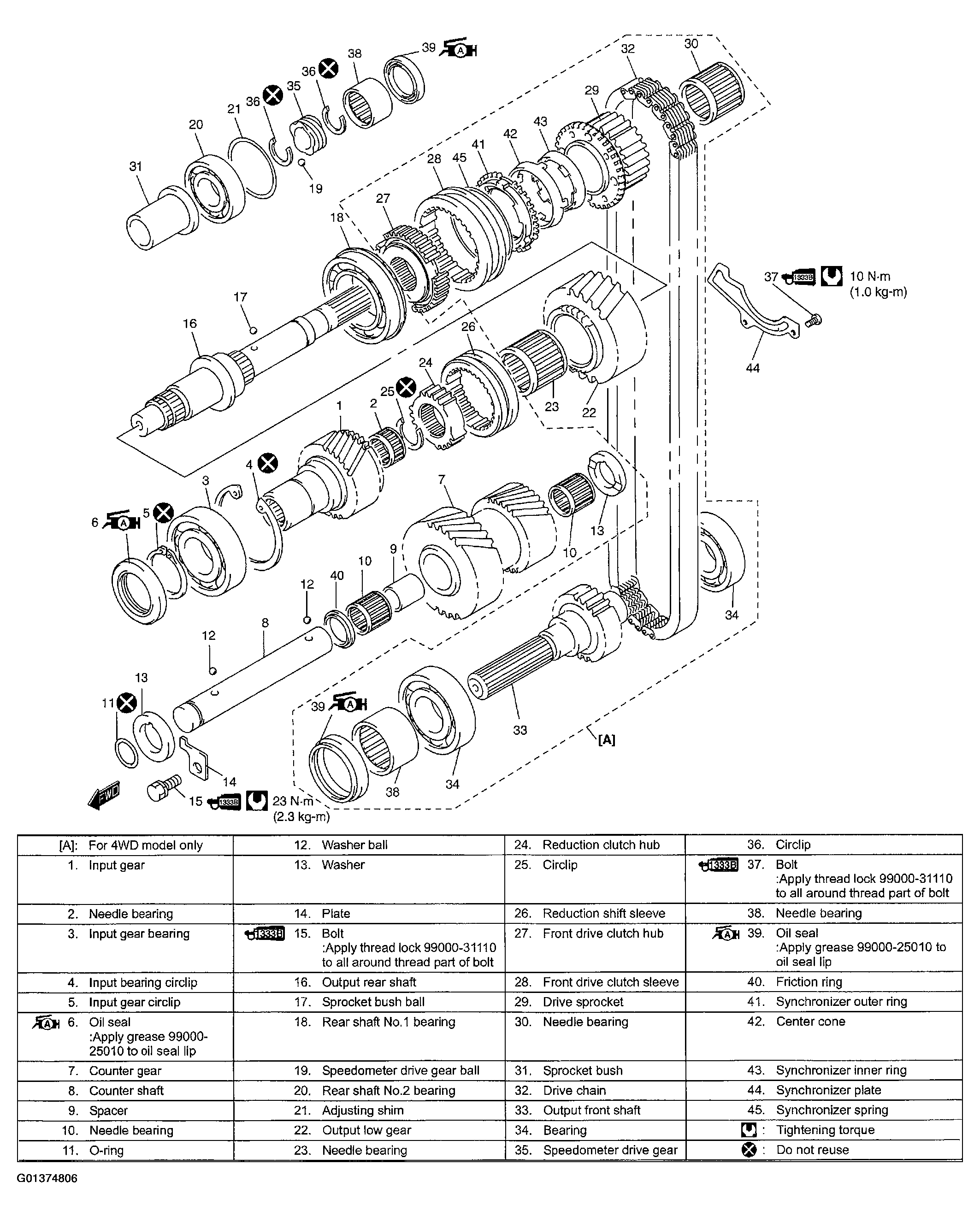

Fig 1: Exploded View Of Transfer Components
G01374806Courtesy of SUZUKI OF AMERICA CORP.
