Home >> Suzuki >> 2003 >> Grand Vitara 4WD, Standard >> Repair and Diagnosis >> Engine Performance >> System >> Engine Controls - Self-Diagnostics >> Self-Diagnostic System >> Engine System Check: H25 Engine >> Test Description

Test Description

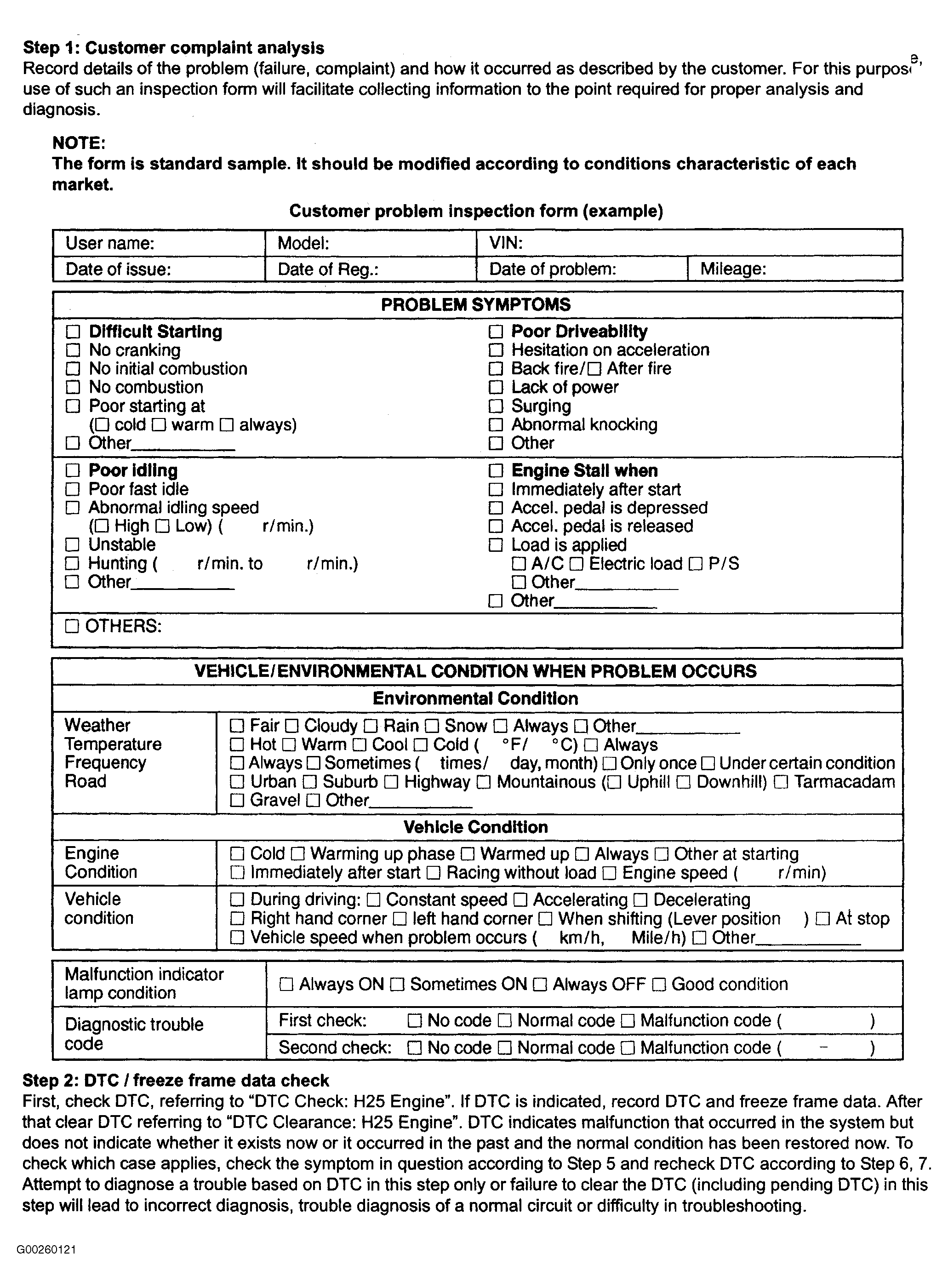

Fig 1: Engine System Check Diagnostic Procedure Step Description (1 Of 2)
G00260121Courtesy of SUZUKI OF AMERICA CORP.

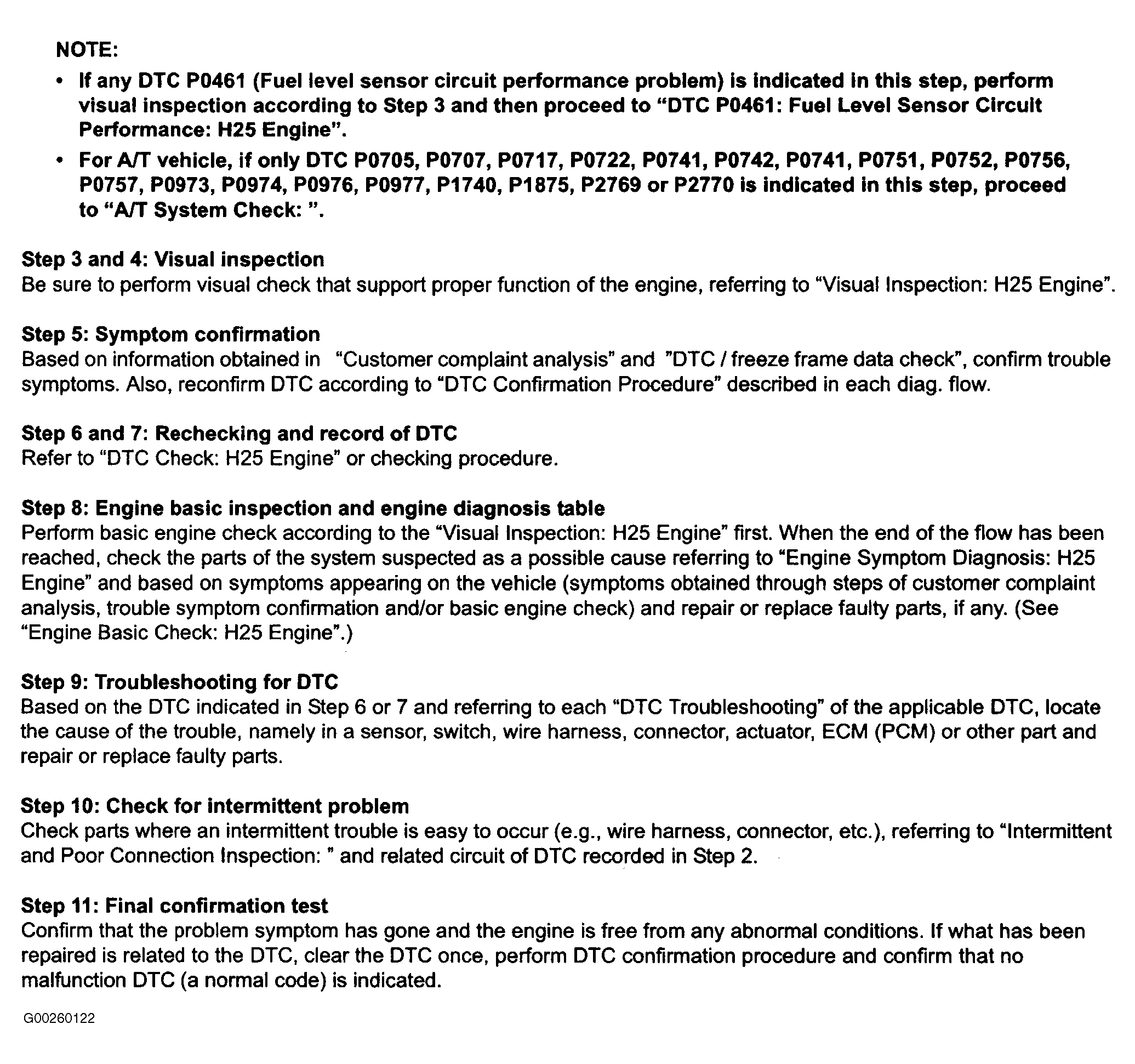

Fig 2: Engine System Check Diagnostic Procedure Step Description (2 Of 2)
G00260122Courtesy of SUZUKI OF AMERICA CORP.
