Diagnostic Procedures

For diagnosis and repair, see Fig 1 . For description for each step, see TEST DESCRIPTION .

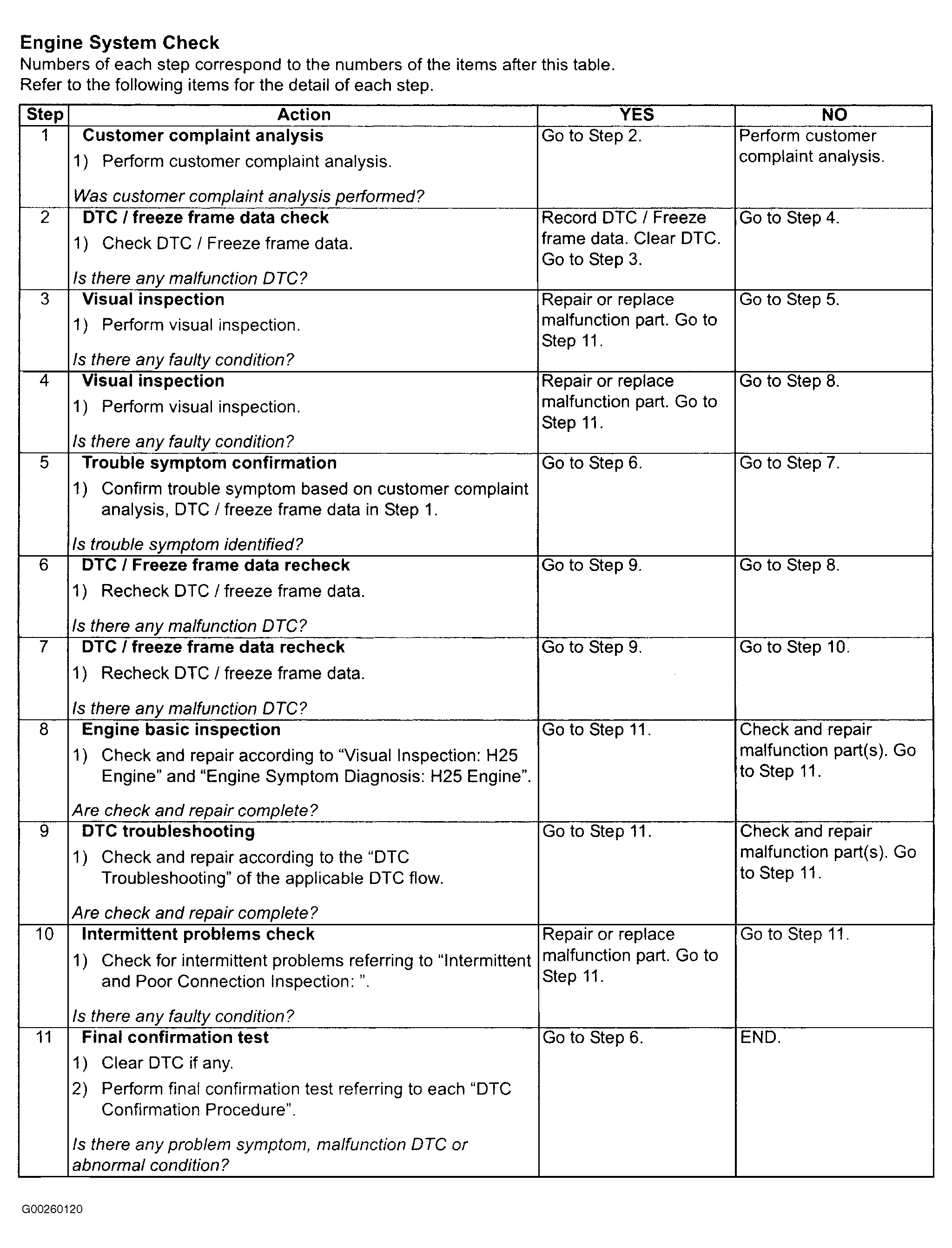

Fig 1: Engine System Check Diagnostic Procedure

G00260120

Courtesy of SUZUKI OF AMERICA CORP.
