Transaxle Rear Cover Components

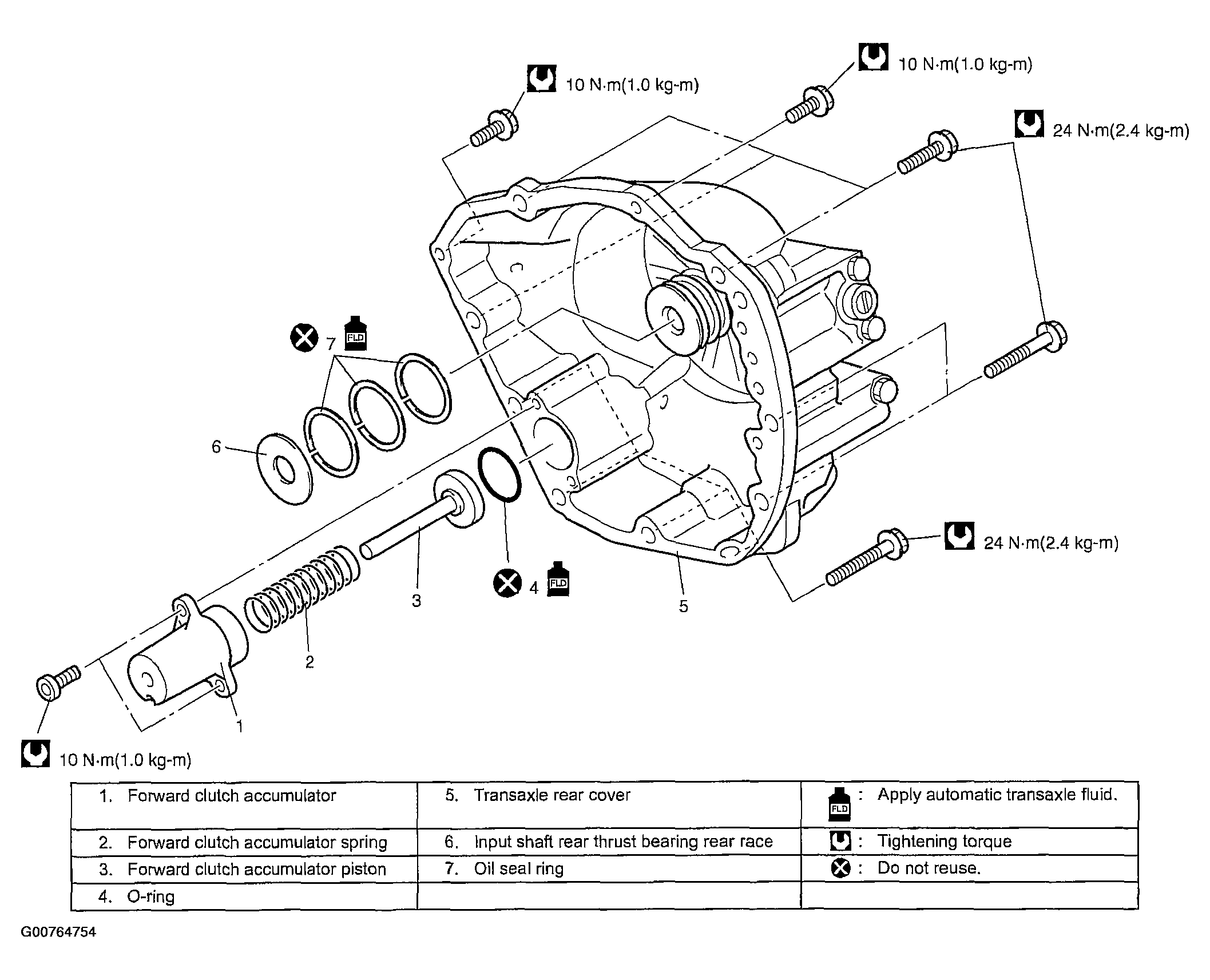

Fig 1: Identifying Transaxle Rear Cover Components

G00764754

Courtesy of SUZUKI OF AMERICA CORP.
