Rear Door Lock Assembly Components
Rear Door Lock Assembly Components

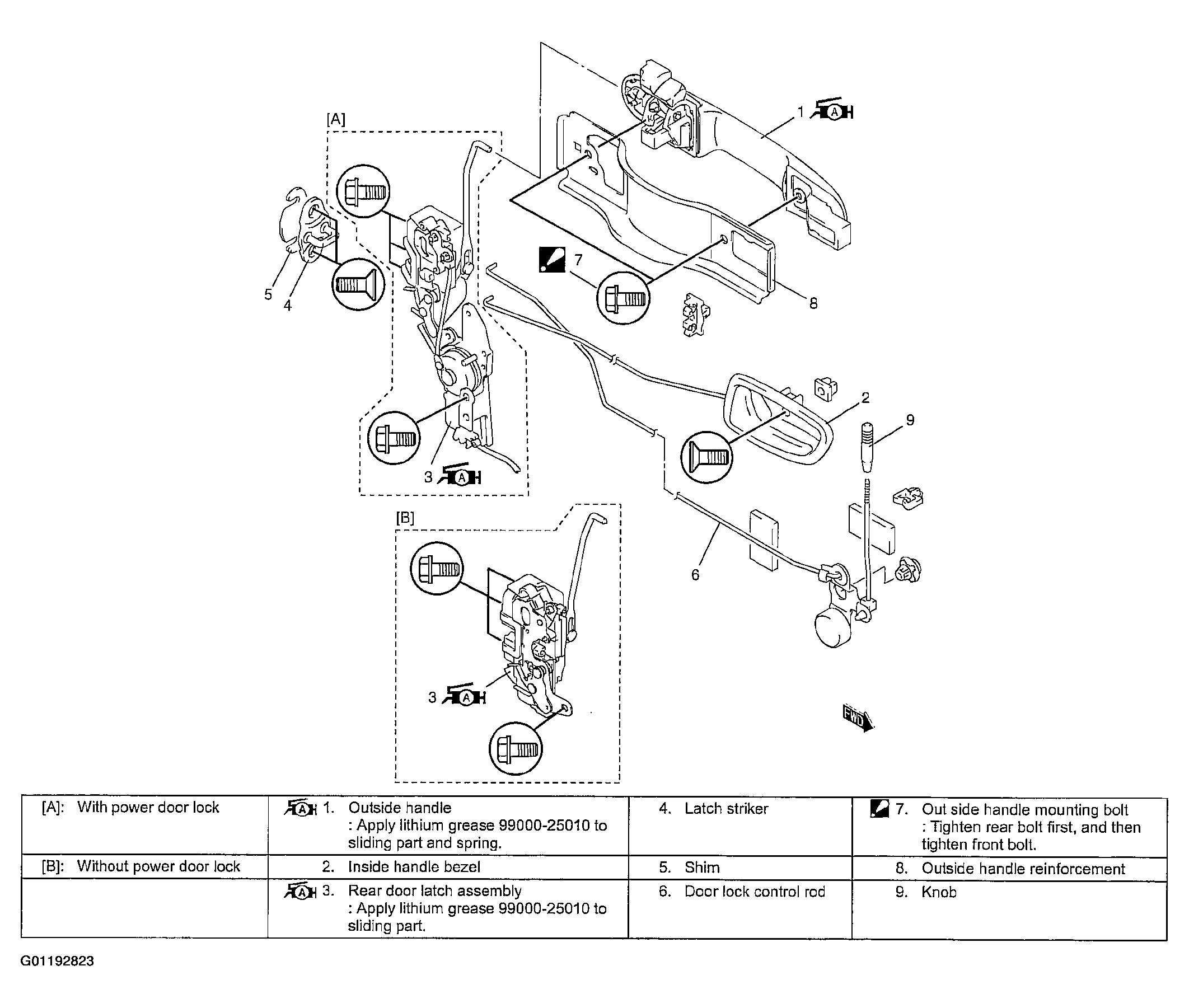

Fig 1: Exploded View Of Rear Door Lock Assembly Components
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
