Front Door Lock Assembly Components
Front Door Lock Assembly Components

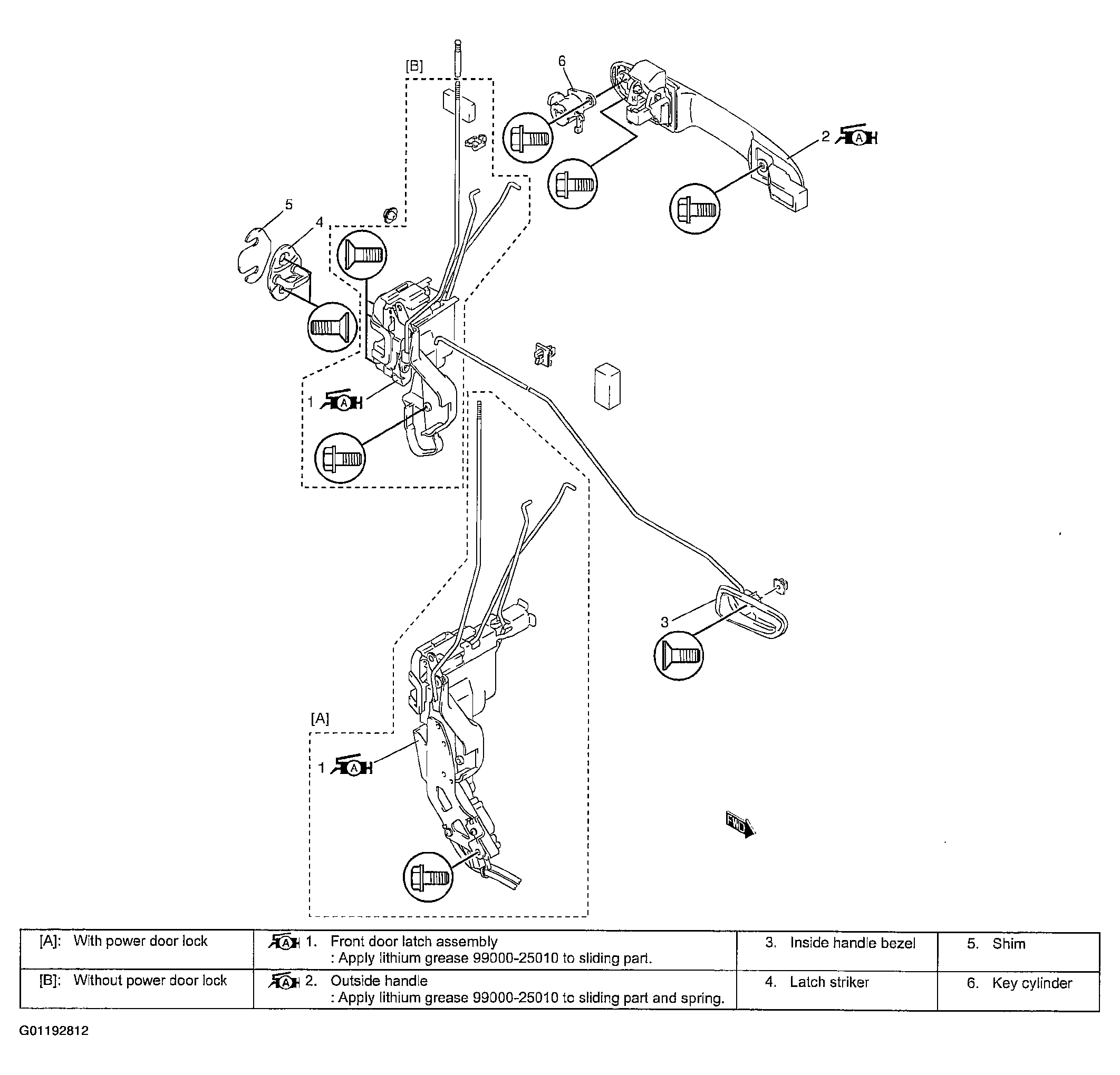

Fig 1: Exploded View Of Front Door Lock Assembly Components
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
