Cruise Control Module Power and Ground Circuits Check

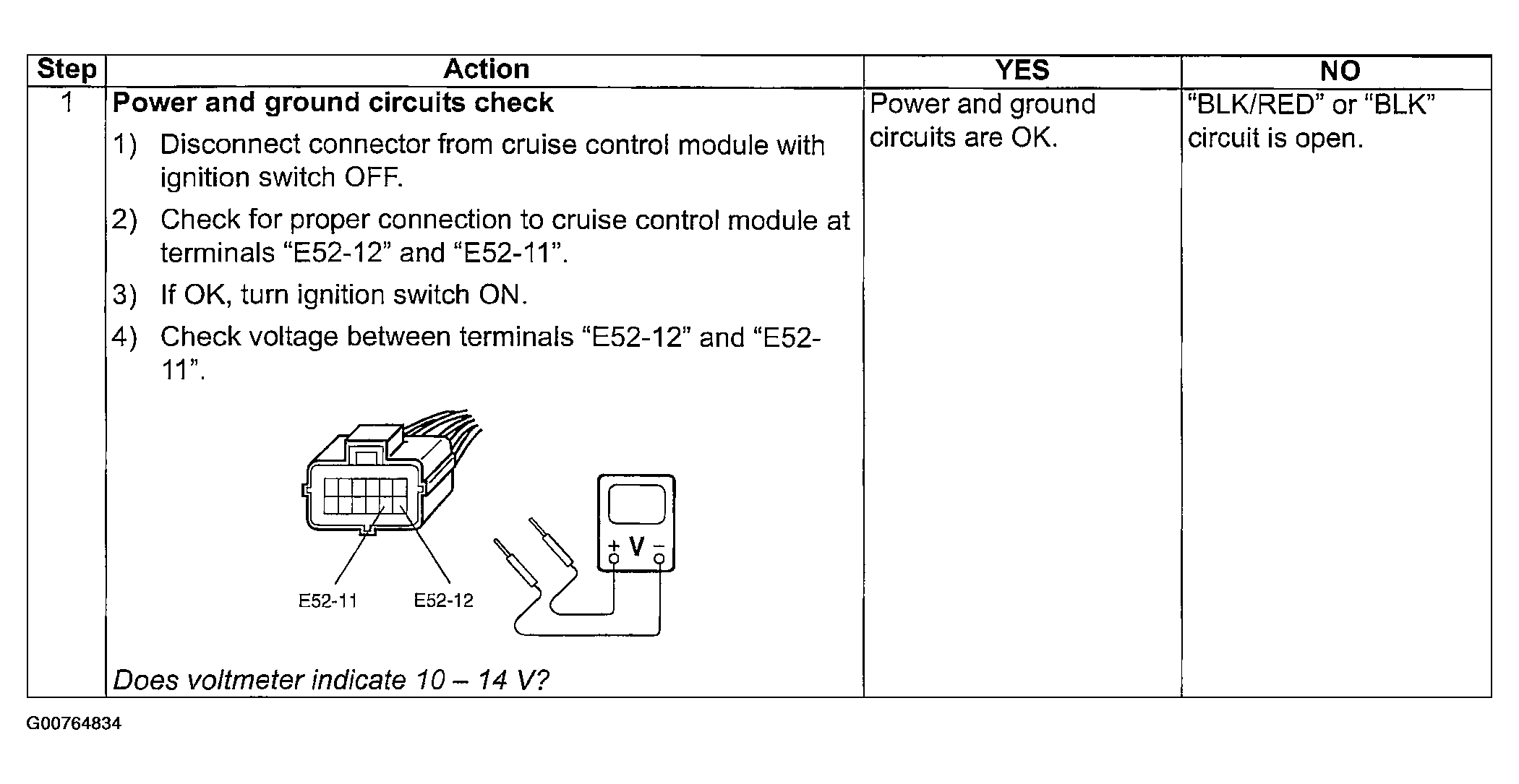

Fig 1: Cruise Control Module Power and Ground Circuits Check

G00764834

Courtesy of SUZUKI OF AMERICA CORP.
