Power steering (P/S) pump specifications

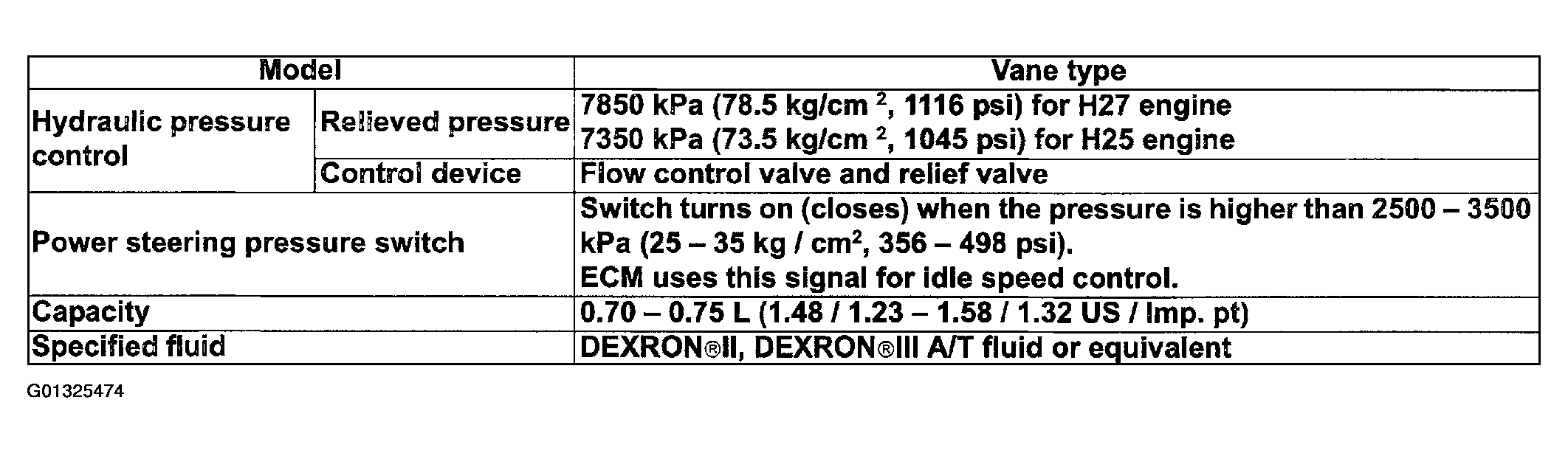

Fig 1: Power Steering Pump Specifications Chart

G01325474

Courtesy of SUZUKI OF AMERICA CORP.
