P/S Pump Construction: Components

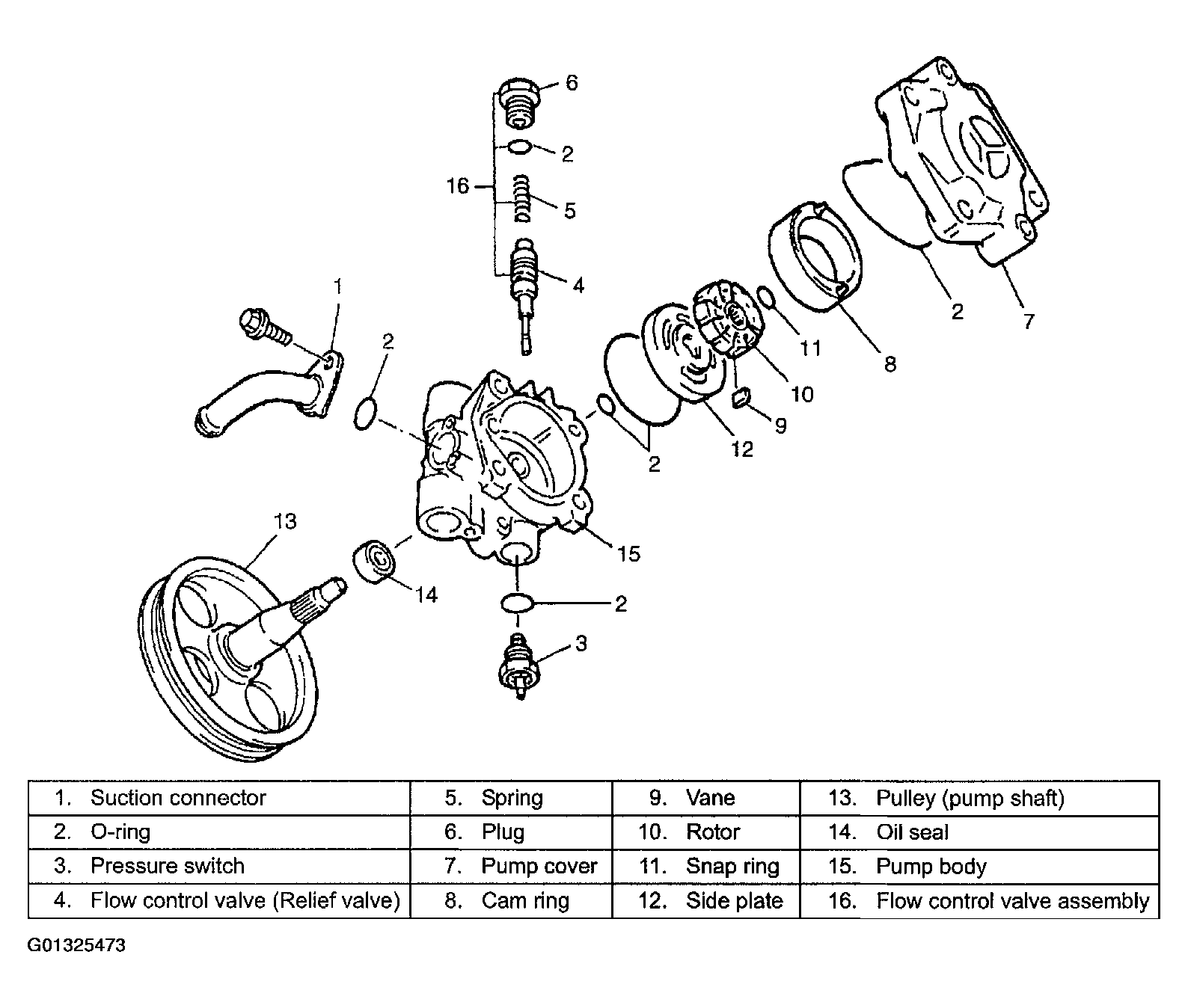

Fig 1: Identifying Power Steering Pump Construction

G01325473

Courtesy of SUZUKI OF AMERICA CORP.
