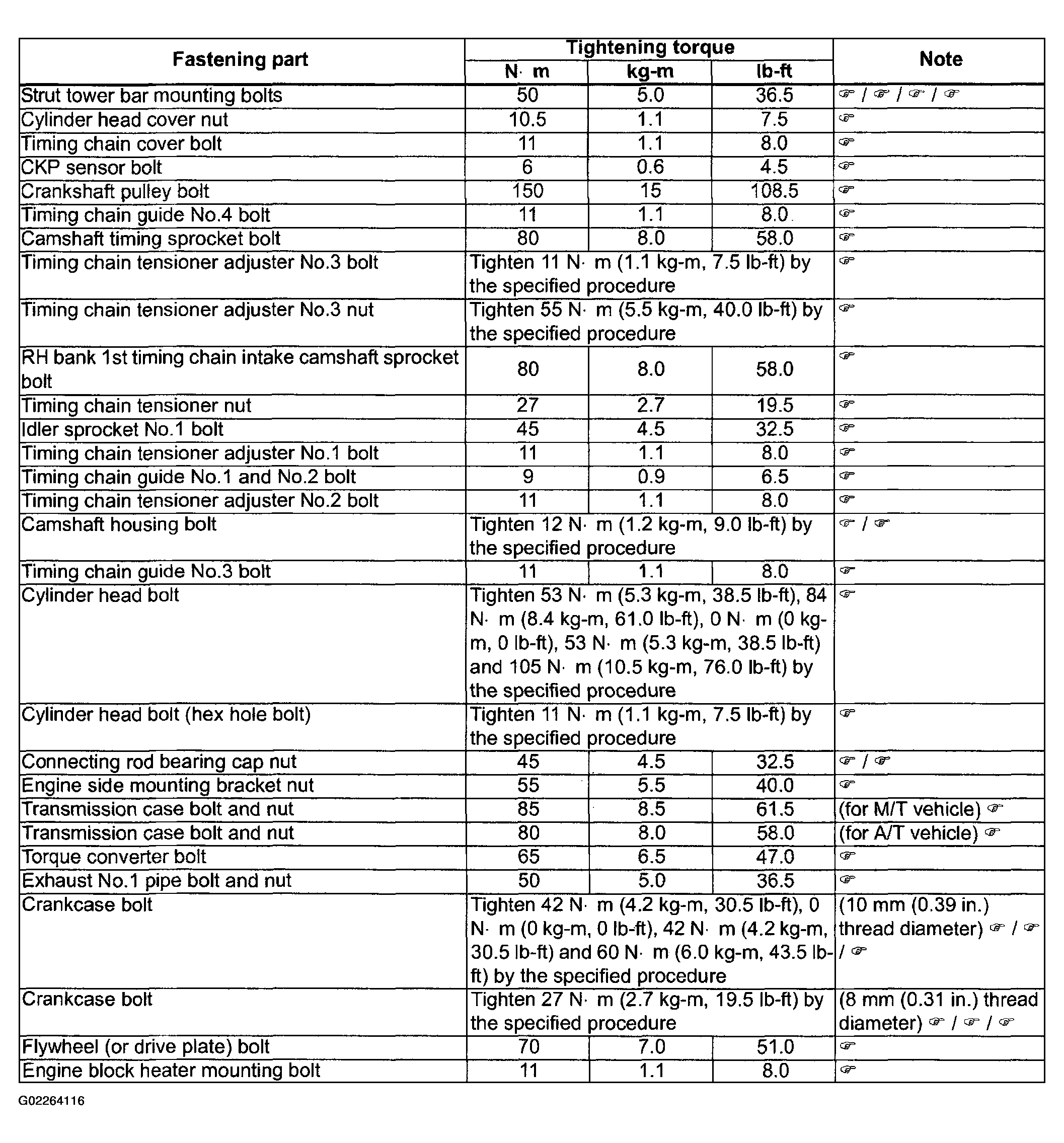

Tightening Torque Specifications
NOTE:
The specified tightening torque is also described in the following. TIMING CHAIN COVER COMPONENTS , LH (NO. 1) BANK 2ND TIMING CHAIN & CHAIN TENSIONER COMPONENTS , 1ST TIMING CHAIN & CHAIN TENSIONER COMPONENTS , RH (NO. 2) BANK 2ND TIMING CHAIN & CHAIN TENSIONER COMPONENTS , CAMSHAFTS & VALVE LASH ADJUSTERS COMPONENTS , VALVES & CYLINDER HEADS COMPONENTS , PISTONS, PISTON RINGS, CONNECTING RODS & CYLINDERS COMPONENTS and MAIN BEARINGS, CRANKSHAFT & CYLINDER BLOCK COMPONENTS .
