Steering Column Inspection

NOTE: Vehicles involved in accidents resulting in body damage, where steering column has been impacted or air bag deployed, may have a damaged or misaligned steering column.

Check that two capsules (1) are attached to steering column bracket (2) securely. Check clearance between capsules (1) and steering column bracket (2). Clearance should be 0.0 mm (0.0 in.) on both sides. If found loose or clearance, replace steering column assembly.
Check two plates (3) for any damages such as crack or breakage. If anything is found faulty, replace as steering column assembly.

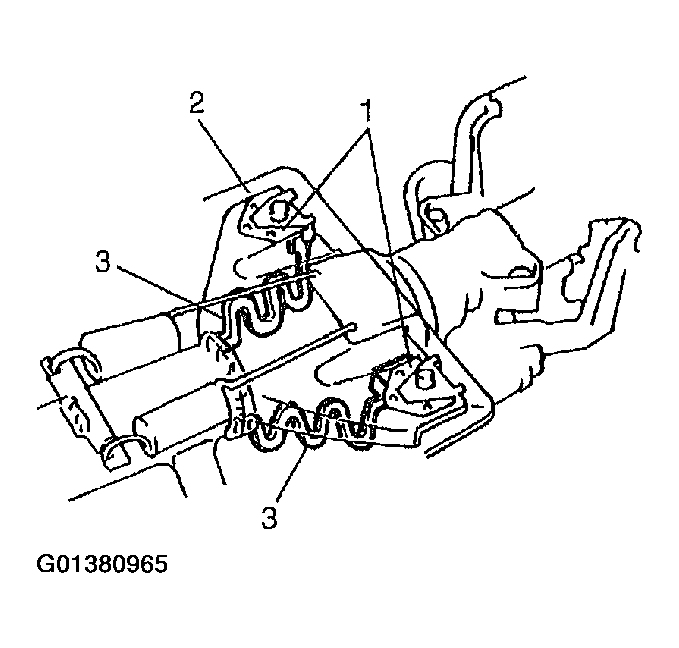

Fig 1: Checking Plates For Any Damages Such As Crack Or Breakage
Courtesy of SUZUKI OF AMERICA CORP.
Take measurement "a" as shown in illustration. If it is shorter than specified length, replace column assembly with new one.
Steering column assembly length
1. "a": 895 +/- 0.8 mm (35.24 +/- 0.03 in.)

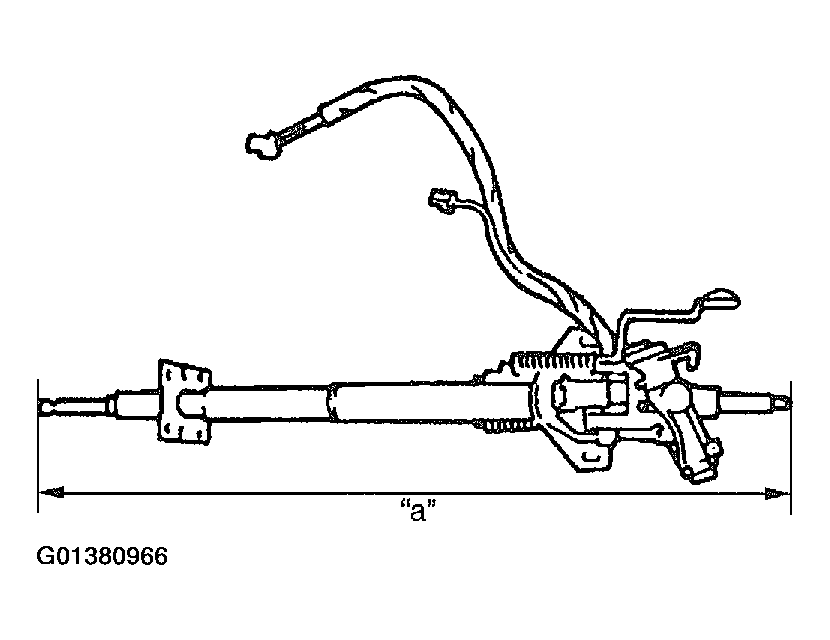

Fig 2: Measuring Steering Column Assembly Length
Courtesy of SUZUKI OF AMERICA CORP.
Check steering column lower seal (1) for breakage or deformation. If found defective, replace.

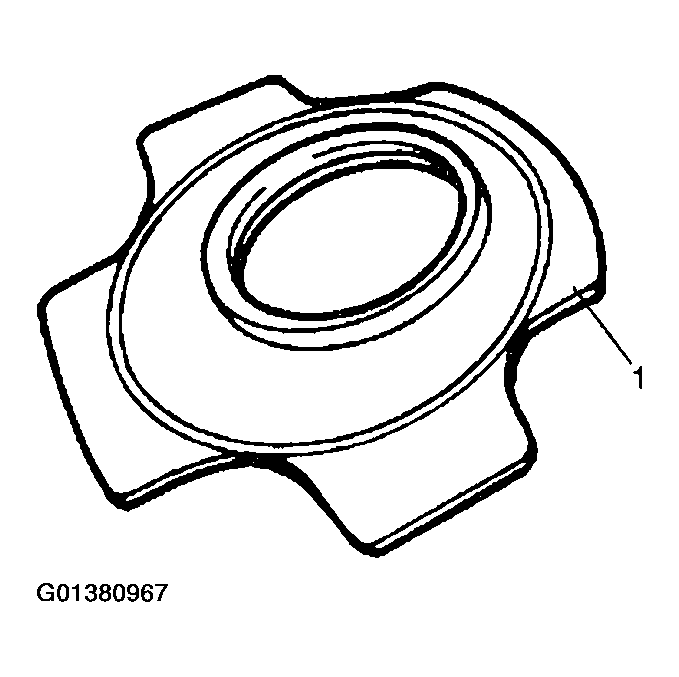

Fig 3: Checking Steering Column Lower Seal For Breakage Or Deformation
Courtesy of SUZUKI OF AMERICA CORP.
Check steering shaft joints and shaft for any damages such as crack, breakage, malfunction or excessive play. If anything is found faulty, replace as steering shaft lower assembly or steering column assembly.
Check steering shaft for smooth rotation. If found defective, replace as column assembly.
Check steering shaft and column for bend, cracks or deformation. If found defective, replace as column assembly.
