Wheel Alignment: Specifications: Specifications: Esteem

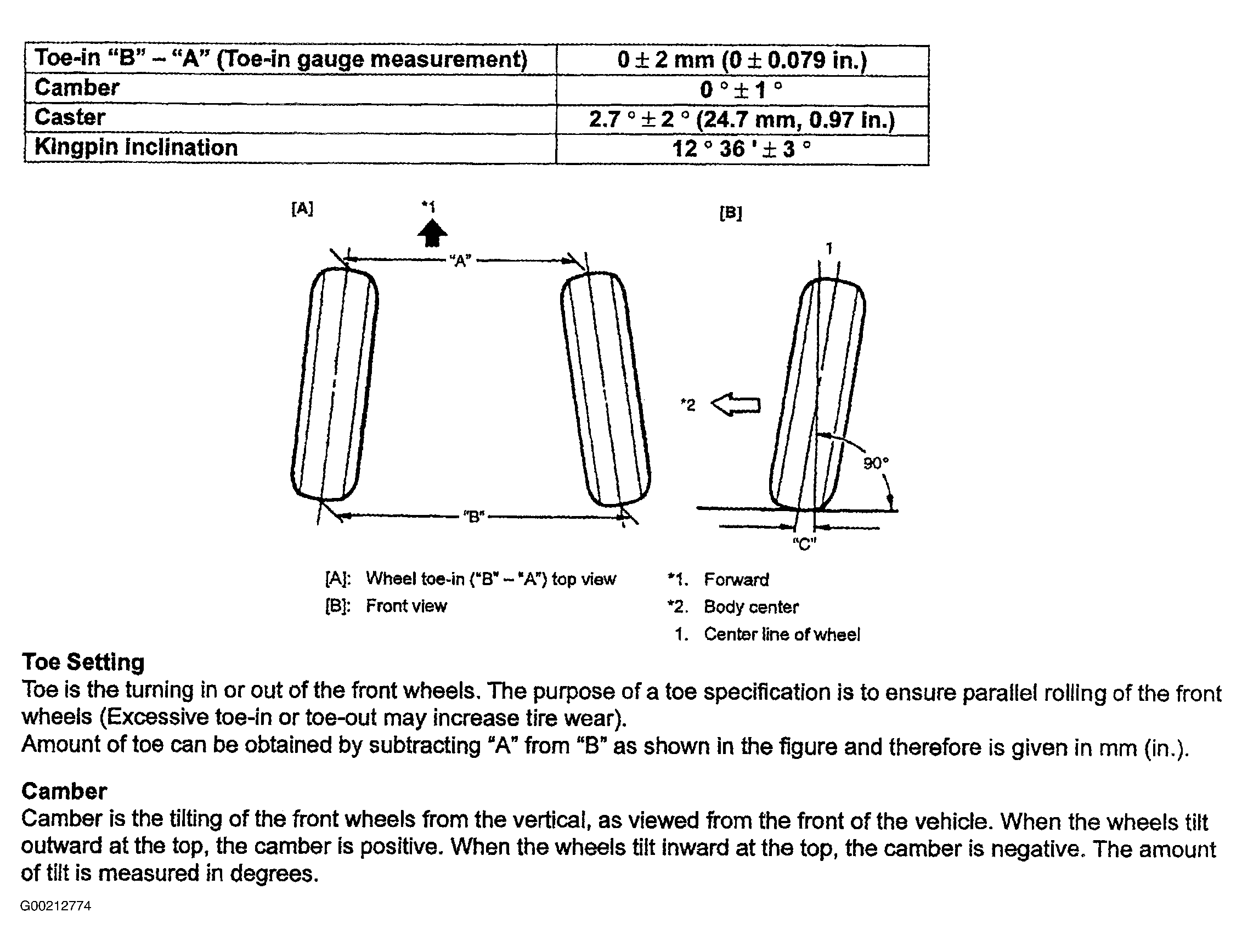

Fig 1: Wheel Alignment Specifications (Esteem - Front)
G00212774Courtesy of SUZUKI OF AMERICA CORP.
Fig 2: Wheel Alignment Specifications (Esteem - Rear Toe)
G00212771Courtesy of SUZUKI OF AMERICA CORP.
