Selector Lever Components
Selector Lever Components

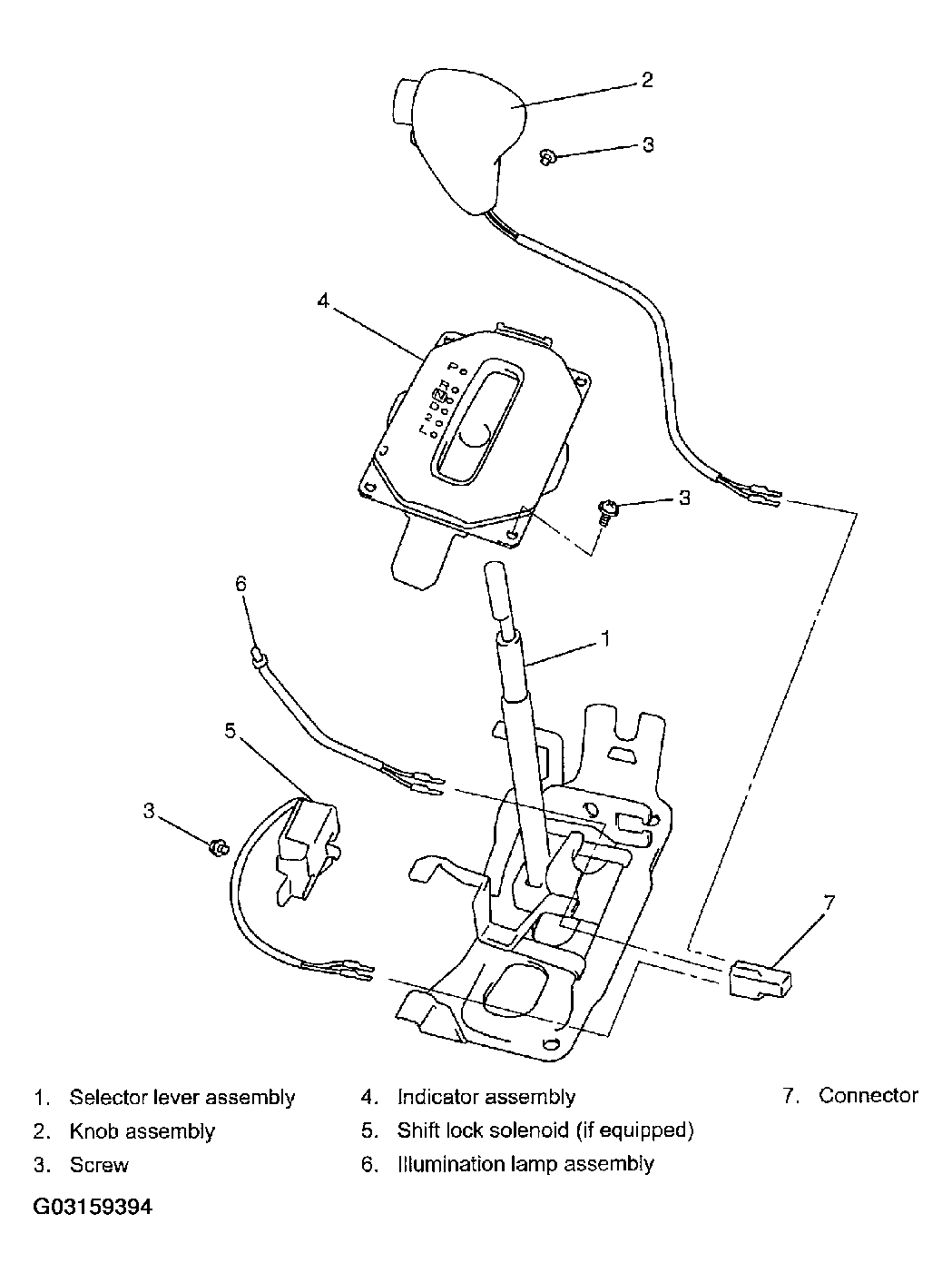

Fig 1: Identifying Selector Lever Components
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
