Electronic Shift Control System Components Location

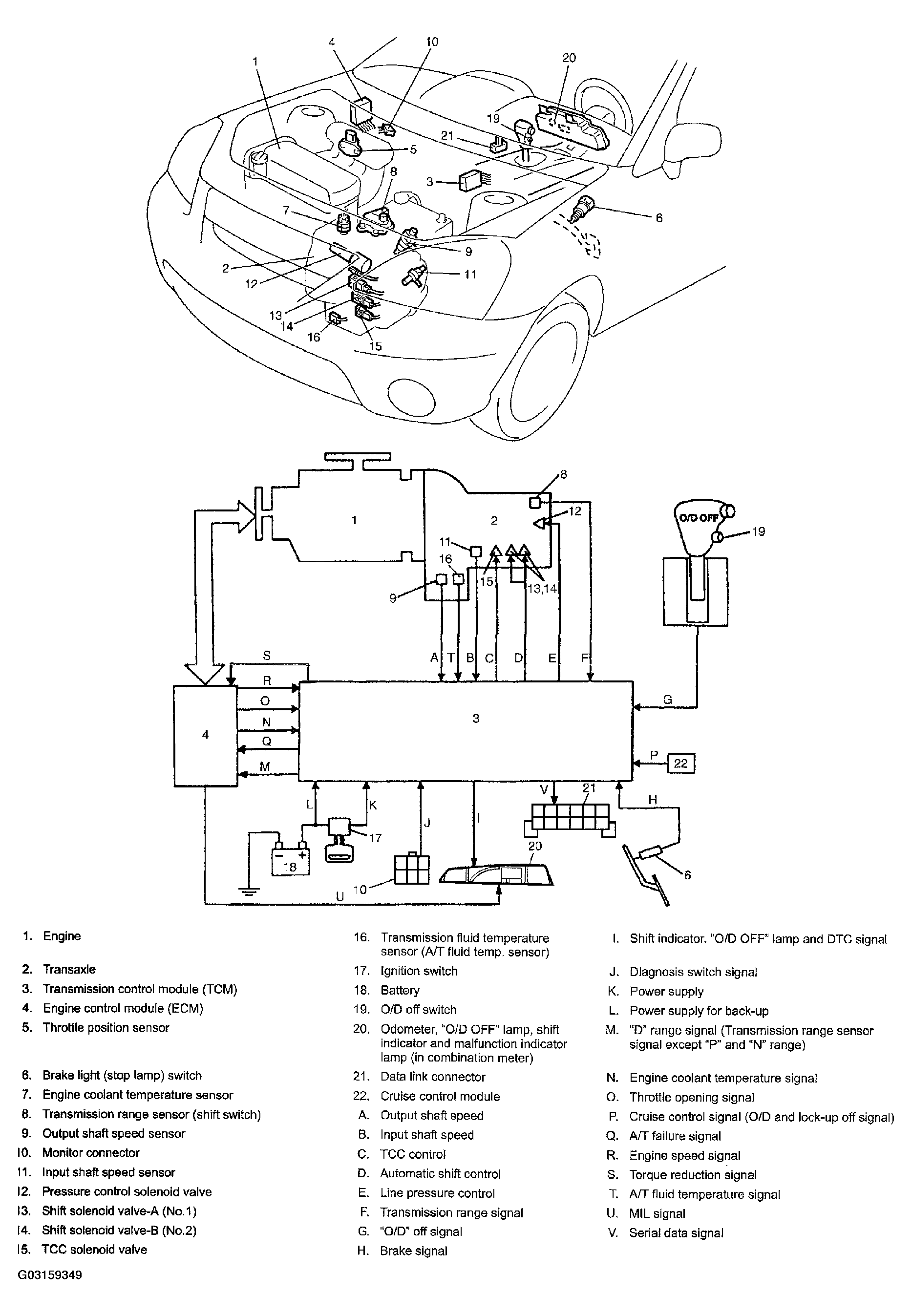

Fig 1: Locating Electronic Shift Control System Components

G03159349

Courtesy of SUZUKI OF AMERICA CORP.
