Home >> Suzuki >> 2002 >> Aerio S, Standard >> Repair and Diagnosis >> Suspension >> Front Suspension >> Repair Instructions >> Front Strut Assembly Components

Front Strut Assembly Components

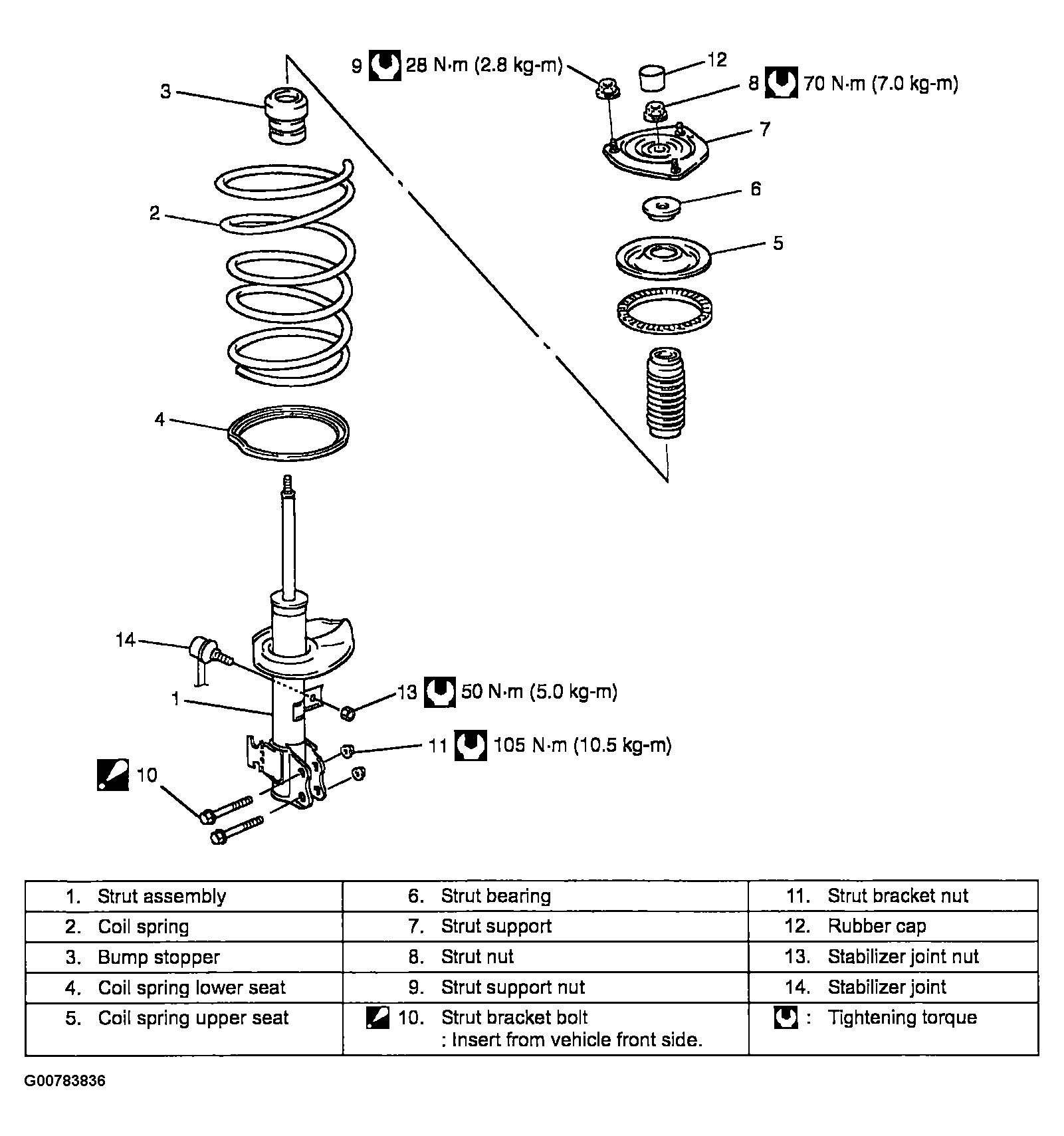

Fig 1: Identifying Front Strut Assembly Components

G00783836

Courtesy of SUZUKI OF AMERICA CORP.
