Home >> Suzuki >> 2002 >> Aerio GS, Automatic >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Overhaul - A/T >> Repair Instructions >> Planetary Gear Components

Planetary Gear Components

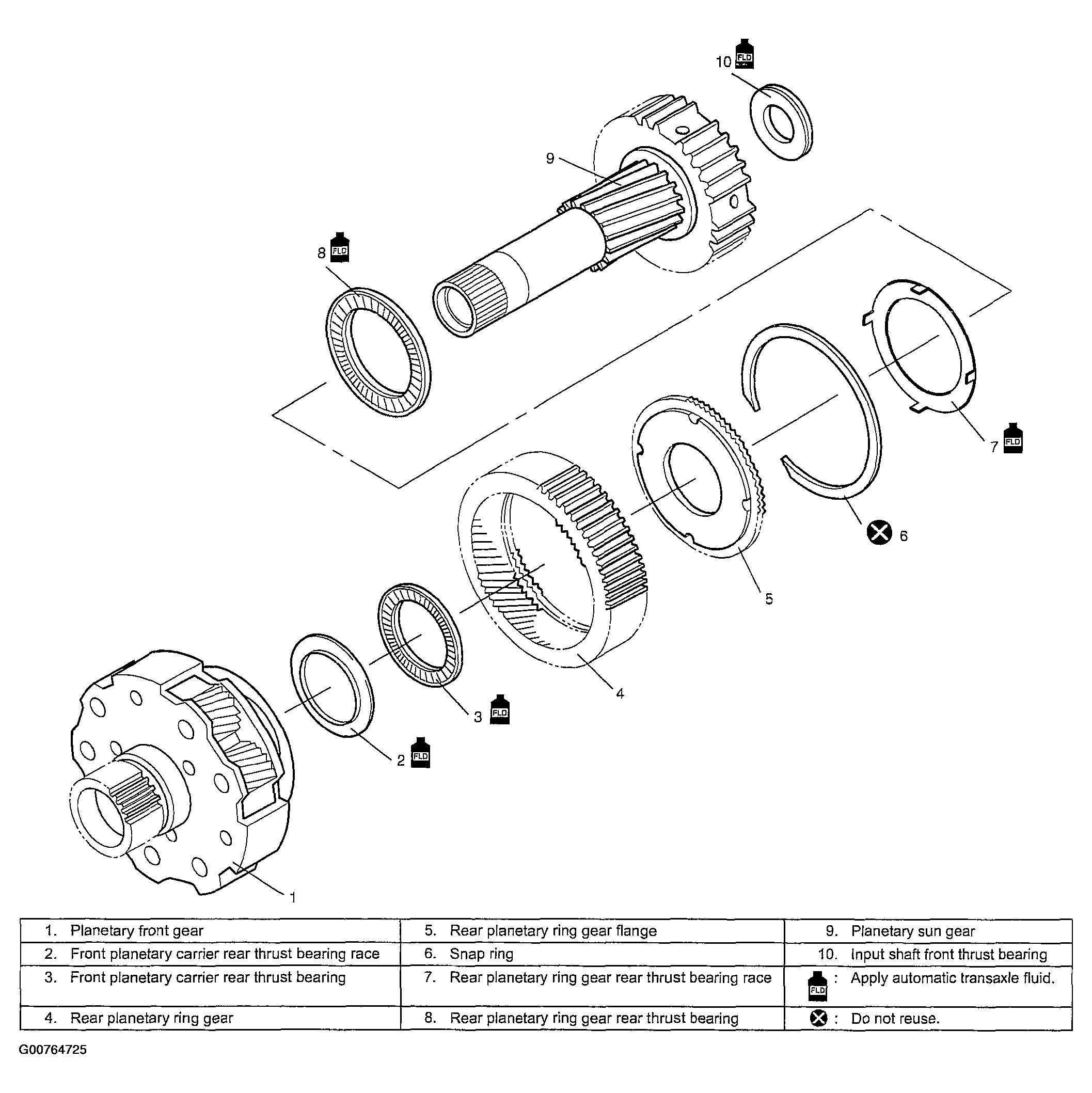

Fig 1: Identifying Planetary Gear Components
G00764725Courtesy of SUZUKI OF AMERICA CORP.
