Differential Left Case

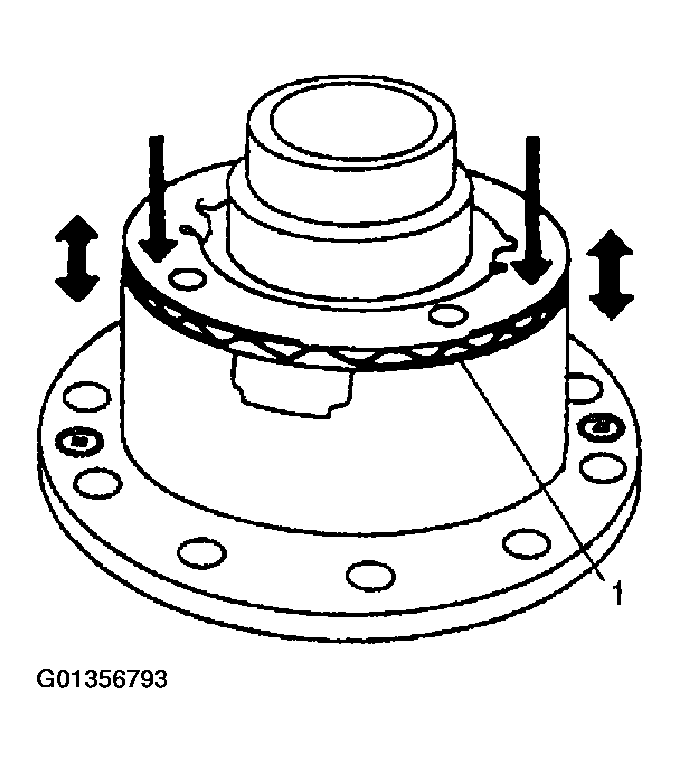

Check clutch for smooth movement by pushing plate of axle lock clutch fitted to differential left case. Also, check return spring (1) for settling.

Fig 1: Checking Clutch & Return Spring

Courtesy of SUZUKI OF AMERICA CORP.

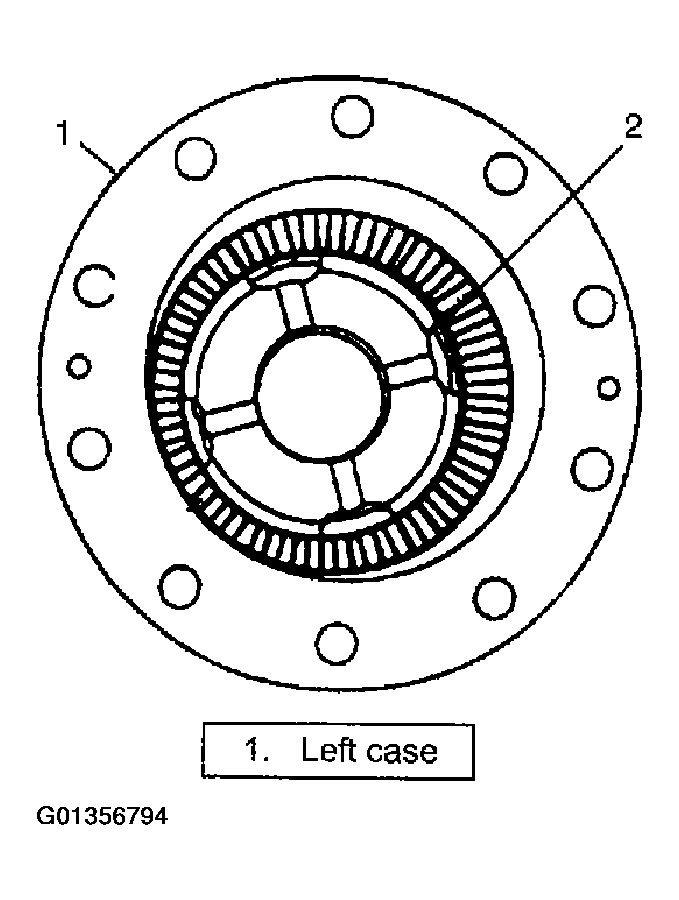

Check teeth of axle lock clutch (2) fitted to differential right case for wear, damage and any other faulty condition.

Fig 2: Checking Teeth Of Axle Lock Clutch
