Tie-Rod End Boot Check

Check boot for crack and damage and if any, replace it with a new one.

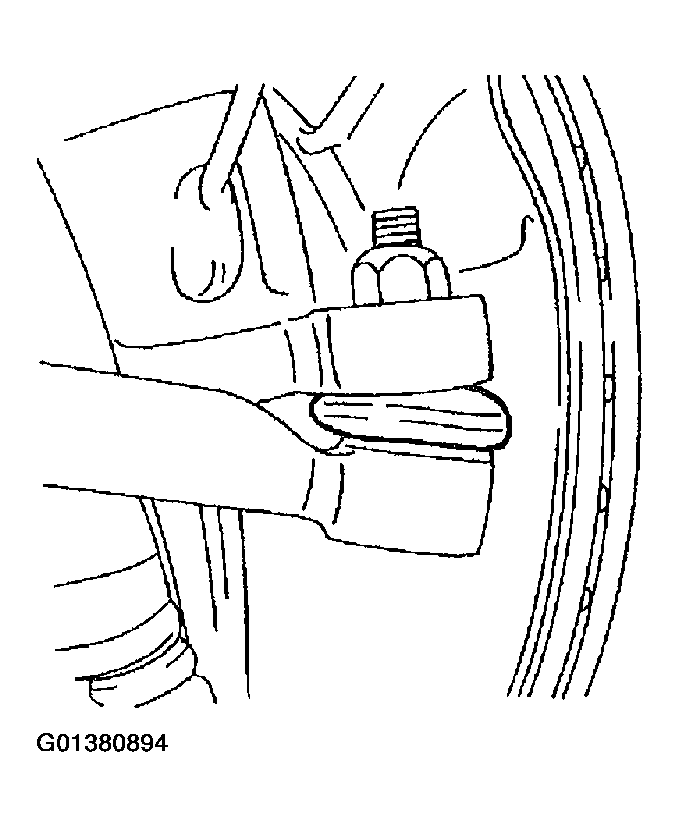

Fig 1: Identifying Tie-Rod End Boot

G01380894

Courtesy of SUZUKI OF AMERICA CORP.
