Hydraulic Pressure Control Relieved Pressure

(G16 Engine):  6500 kPa (65 kg/cm² , 924 psi)

(J20 Engine):  7000 kPa (70 kg/cm² , 995 psi)

(H25 Engine):  7350 kPa (77 kg/cm² , 1066 psi)

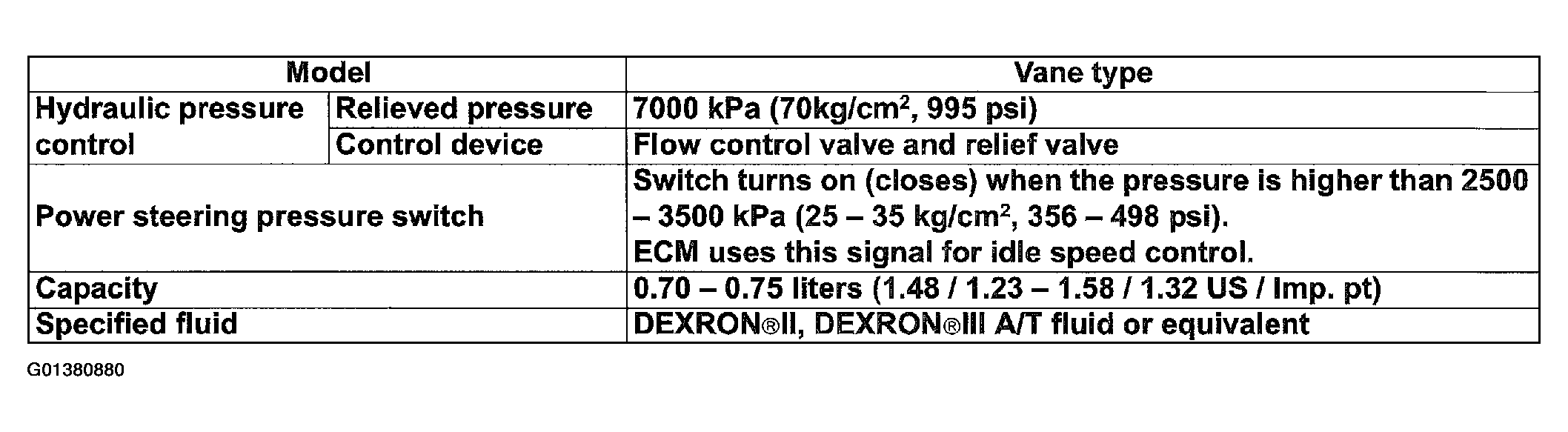

Fig 1: P/S Pump Specification Chart

Courtesy of SUZUKI OF AMERICA CORP.
